If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
When selecting the output to congure, Figure 177, the conguration parameters are:
 Variable code.
 The scale.
 The zero
 The full scale.

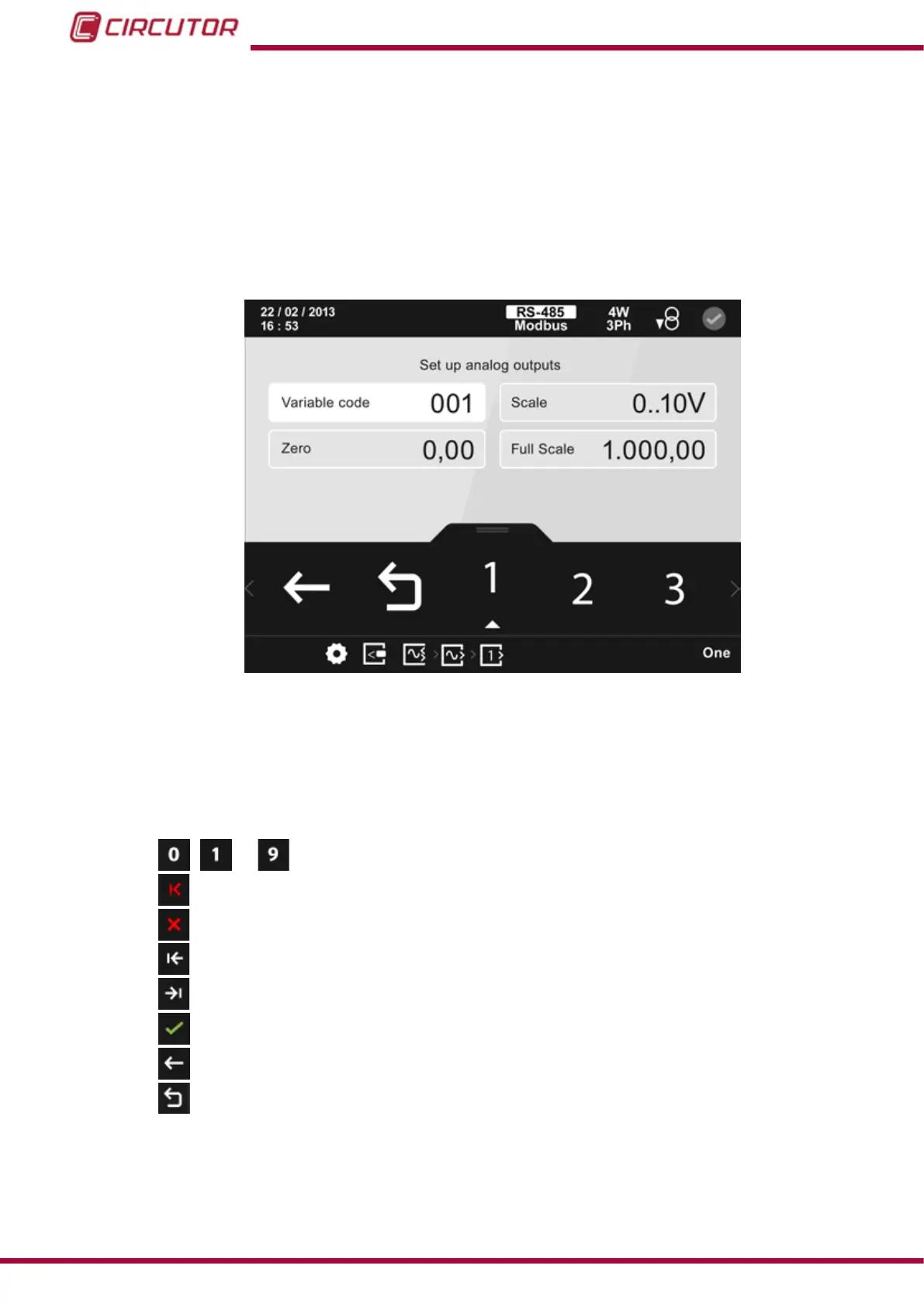

Figure 177: Analogue outputs conguration screen.
The parameter selected is indicated in white.
The following options appear in the lower area:
● When programming the variable code which controls the analogue output (Table 21):
, ... the ten possible digits to program.
Delete character, deletes the selected character.
Delete parameter, deletes the characters of the selected parameter.
Previous, selects the previous parameter.
Next, selects the next parameter.
Conrm, conrms and saves in the memory the values programmed on the screen.
Back, returns to the main conguration screen for analogue outputs, Figure 176.
Main Menu, back to the main menu, Figure 25.
252
CVM-B100 - CVM-B150
Instruction Manual
