Chapter 1 Configuring IP Unicast Routing
Configuring IP Addressing

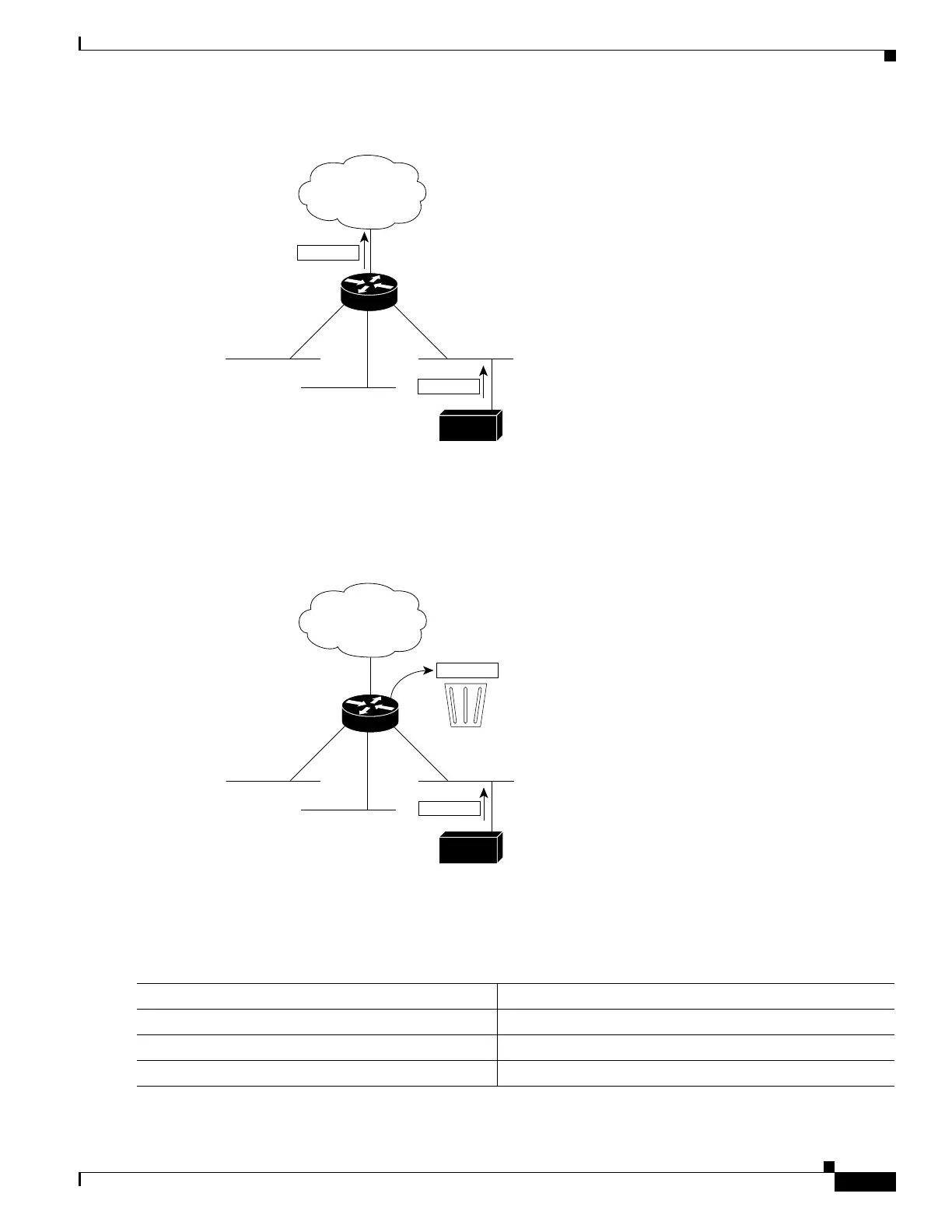

Figure 1-2 IP Classless Routing
In Figure 1-3, the router in network 128.20.0.0 is connected to subnets 128.20.1.0, 128.20.2.0, and
128.20.3.0. If the host sends a packet to 120.20.4.1, because there is no network default route, the router
discards the packet.
Figure 1-3 No IP Classless Routing
To prevent the switch from forwarding packets destined for unrecognized subnets to the best supernet
route possible, you can disable classless routing behavior.
Beginning in privileged EXEC mode, follow these steps to disable classless routing:
Host
128.20.1.0
128.20.2.0
128.20.3.0
128.20.4.1
128.0.0.0/8
128.20.4.1
IP classless
45749
128.20.0.0
Host
128.20.1.0
128.20.2.0
128.20.3.0
128.20.4.1
128.0.0.0/8
128.20.4.1
Bit bucket
45748
128.20.0.0
Command Purpose
Step 1
configure terminal Enter global configuration mode.
Step 2
no ip classless Disable classless routing behavior.
Step 3
end Return to privileged EXEC mode.

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
