1-19
Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-25303-03
Chapter 1 Configuring IP Multicast Routing
Configuring IP Multicast Routing
The router looks up IP address resource records and uses them as the source addresses associated with
this group. SSM mapping supports up to 20 sources for each group. The router joins all sources
configured for a group (see Figure 1-4).

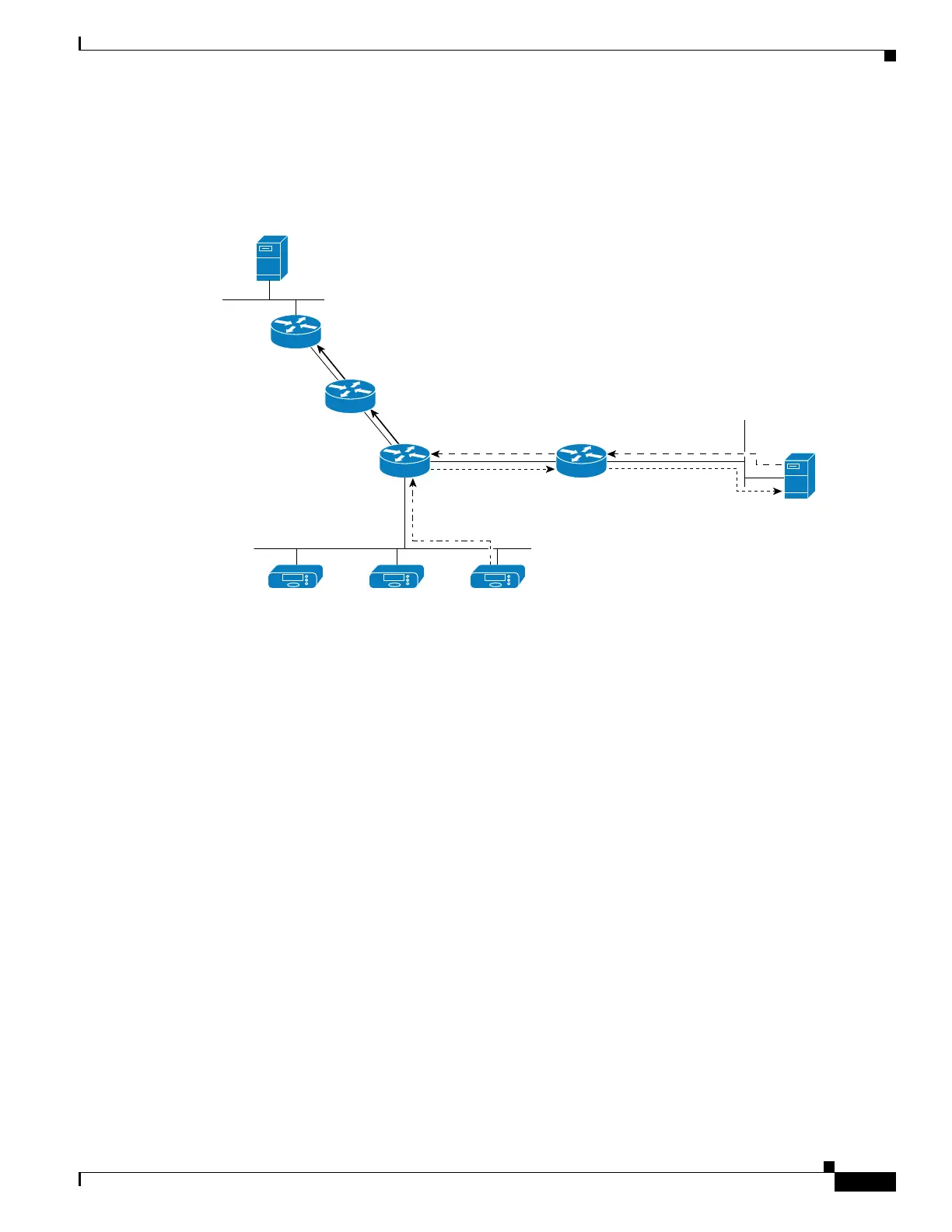

Figure 1-4 DNS-Based SSM-Mapping
The SSM mapping mechanism that enables the last hop router to join multiple sources for a group can
provide source redundancy for a TV broadcast. In this context, the last hop router provides redundancy
using SSM mapping to simultaneously join two video sources for the same TV channel. However, to
prevent the last hop router from duplicating the video traffic, the video sources must use a server-side
switchover mechanism. One video source is active, and the other backup video source is passive. The
passive source waits until an active source failure is detected before sending the video traffic for the TV
channel. Thus, the server-side switchover mechanism ensures that only one of the servers is actively
sending video traffic for the TV channel.
To look up one or more source addresses for a group that includes G1, G2, G3, and G4, you must
configure these DNS records on the DNS server:
G4.G3.G2.G1 [multicast-domain] [timeout]IN A source-address-1
IN A source-address-2
IN A source-address-n
See your DNS server documentation for more information about configuring DNS resource records.
Configuring SSM Mapping
• Configuring Static SSM Mapping, page 1-20 (required)
• Configuring DNS-Based SSM Mapping, page 1-20 (required)
• Configuring Static Traffic Forwarding with SSM Mapping, page 1-21 (optional)
STB host 1 STB host 2 STB host 3
DNS response
DNS server
Reverse DNS lookup
IGMPv2 membership report
(S, G) Join
(S, G) Join
Source
146906

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
