Chapter 1 Managing Switch Stacks
Understanding Switch Stacks
5. Member 6
6. Member 5
7. Member 2
8. Member 3
9. Member 4

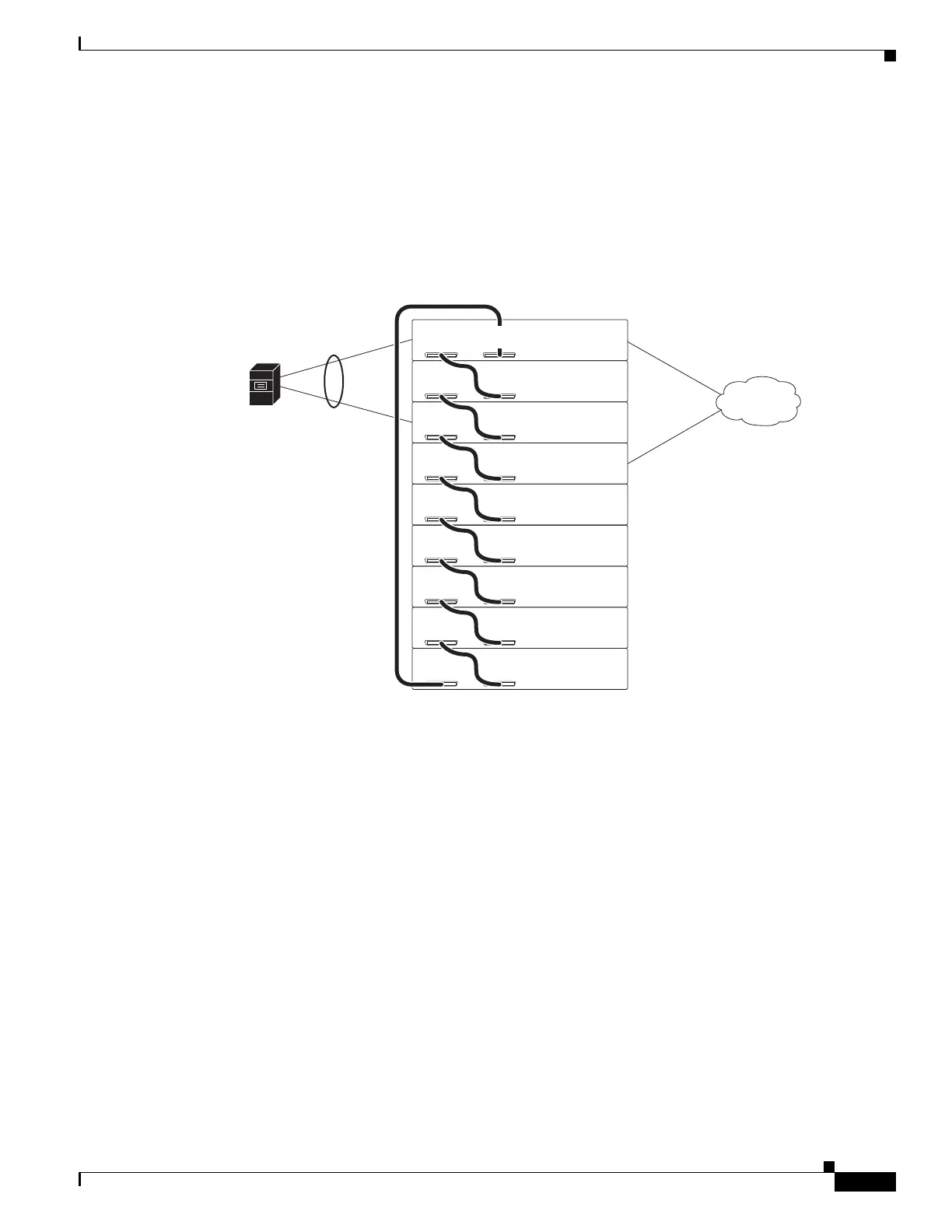

Figure 1-5 Stack Port 1 on Member 1 is Connected to Member 2
When Stack Port 1 on Member 1, the first standby switch, is connected to Stack Port 2 on Member 2,
this is the upgrade sequence:
1. Member 1
2. Member 2
3. Member 3
4. Member 9
5. Member 8
6. Member 7
7. Member 6
8. Member 5
9. Member 4
