Cisco Catalyst 3560-X User Manual

1-26
Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-25303-03
Chapter 1 Overview
Network Configuration Examples
• High-performance wiring closet (Figure 1-2)—For high-speed access to network resources, you can
use Catalyst 3750-X switches and switch stacks in the access layer to provide Gigabit Ethernet
access to the desktop. To prevent congestion, use QoS DSCP marking priorities on these switches.
For high-speed IP forwarding at the distribution layer, connect the switches in the access layer to a
Gigabit multilayer switch in the backbone, such as a Catalyst 4500 Gigabit switch or Catalyst 6500
Gigabit switch.
• Cost-effective Gigabit-to-the-desktop (GTD) access for high-performance workgroups
(Figure 1-3)—For high-speed access to network resources, you can use the Catalyst 3560-X
switches in the access layer to provide Gigabit Ethernet to the desktop. To prevent congestion, use
QoS DSCP marking priorities on these switches. For high-speed IP forwarding at the distribution
layer, connect the switches in the access layer to a Gigabit switch with routing capability or to a
router.
The first illustration is of an isolated high-performance workgroup, where the Catalyst 3560-X
switches are connected to Catalyst 3750-X switches in the distribution layer. The second illustration
is of a high-performance workgroup in the branch office, where the Catalyst 3560-X switches are
connected to a router in the distribution layer.
Each switch in this configuration provides users with a dedicated 1-Gb/s connection to network
resources. Using SFP modules also provides flexibility in media and distance options through
fiber-optic connections.

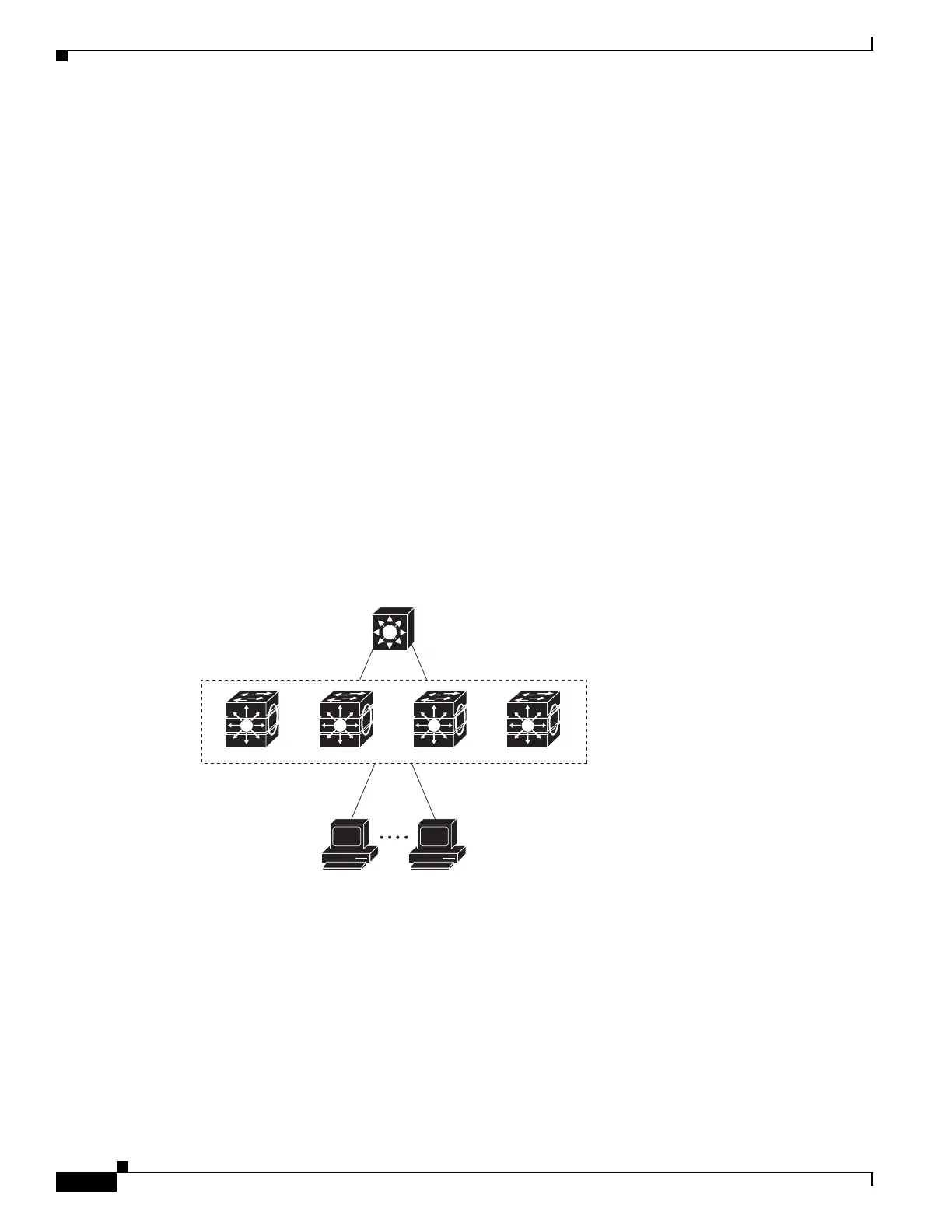

Figure 1-2 High-Performance Wiring Closet
Si
200852
Catalyst
4500 or 6500
multilayer switch
Layer 3 StackWise Plus
switch stack

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
