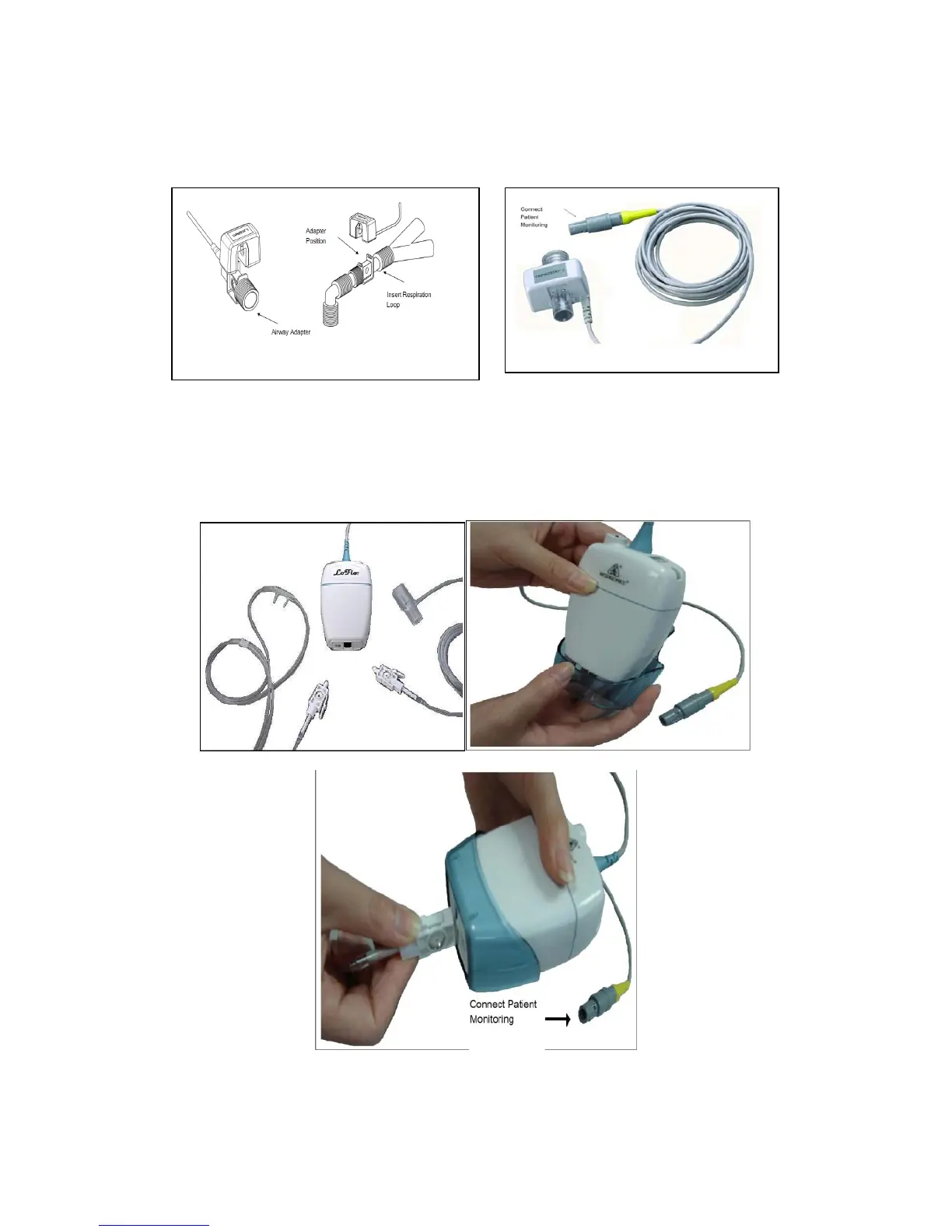

(1) The schematic of connection of the mainstream module produced by the RESPIRONICS
company is shown in the figure below:
Figure 16-2 Mainstream Mode CO
2
Connection
(2) The schematic of connection of the sidestream module produced by the RESPIRONICS
company is shown in the figure below:
Figure 16-3 Sidestream Mode CO
2
Connection Schematic
(3) The schematic of connection of the ISA™ sidestream analyzer produced by the PHASEIN
