company is shown in the figure below:

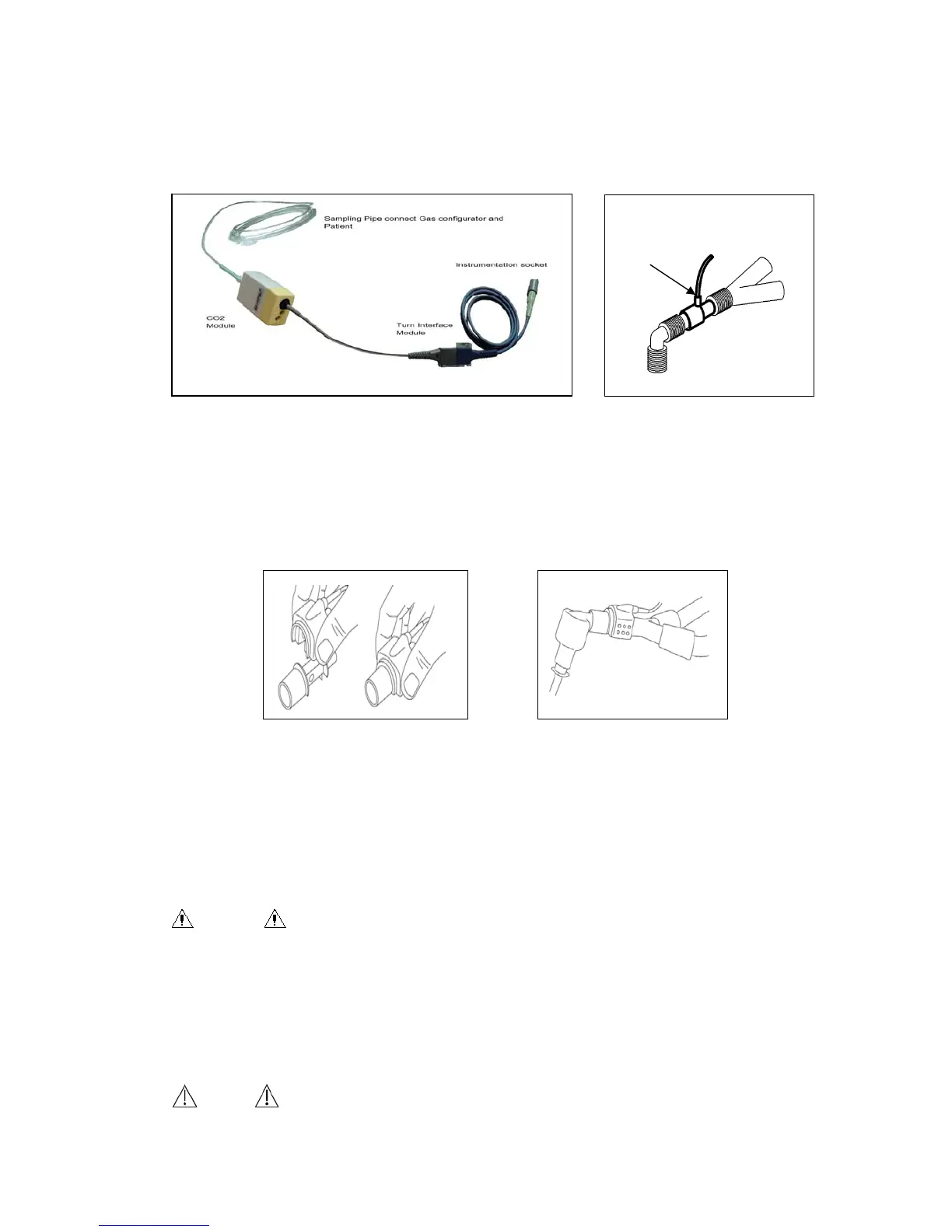

Figure 16-4 ISA™ Sidestream Analyzer (ISA CO
2
) CO
2
Connection Schematic
(4) The schematic of connection of the IRMA™ mainstream analyzer produced by the
PHASEIN company is shown in the figure below:
Figure 16-5 IRMA™ Mainstream Analyzer (IRMA CO
2
) CO
2
Connection Schematic
The monitoring equipment produced by this company supports CO
2
measurement by using a
sidestream or mainstream module produced by the IRONICES company, or an ISA™ sidestream
analyzer (ISA CO
2
(CO
2
) CAT. NO. 800101) produced by the PHASEIN company.
Attention
When an ISA™ sidestream analyzer (ISA CO
2
(CO
2
) CAT. NO. 800101) produced by the
PHASEIN company is used for monitoring CO
2
, please refer to the contents of the section
titled “17.6 Measuring Procedure and Before-Using Checking” for the measuring procedure,
and change the procedure for setting the AG module menu to CO
2
menu setting.
Warning
Sampling tube
