6
Sex: Male and Female.
Weight(kg): patient’s weight
Patient Type: neonatal, pediatric, adult
Update patient: Replaced with new patients, once the update, delete the monitoring data
on a patient
3. Time setup: set up local time
time: display system time
4. Technical alarm: display technical alarm, such as ECG lead off.
5. Physical alarm: display physical alarm, such as T2 too low.

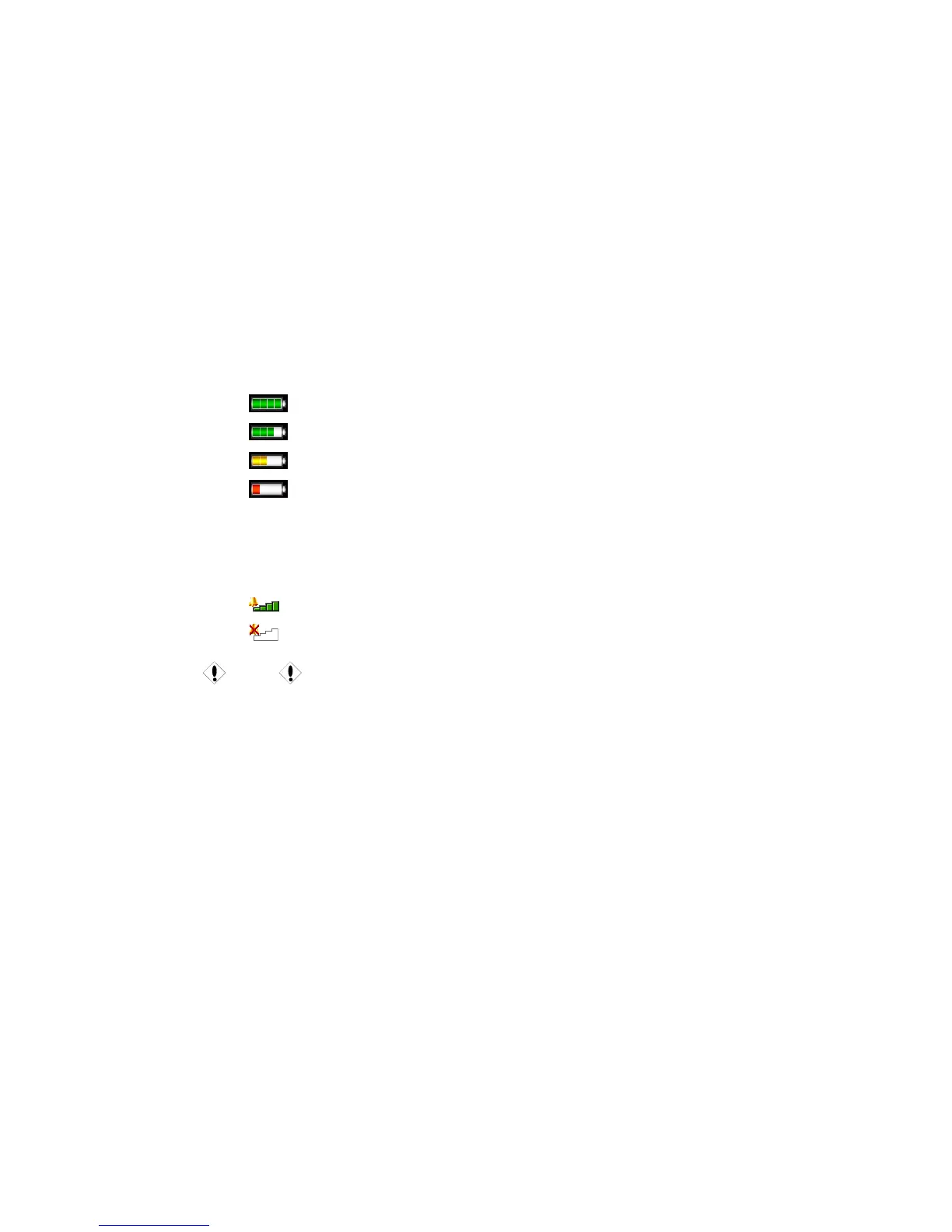

6. Battery: display capacity of batter.
Full capacity
Not full capacity
Low capacity
Very low capacity, need to charge soon.
7. Volume setup: setup alarm volume, heart beat volume, key volume.
Alarm volume: there are five Alarm Vol levels, 1, 2, 3, 4 and OFF, where "OFF" level
means the alarm sound is closed.
Alarm volume on, alarm level 4
Alarm volume off
Caution
Visual alarm and alarm status
Alarm light winks or shines when there is an alarm. The colour of light means the alarm
level. Refer to alarm function chapter for details.
Waveform Area ( ) ②
There are four waveforms in the waveform area, which are respectively from up to down:
two-channel ECG waveform, SpO2 volume graphic waveform and respiratory waveform
(possibly from ECG module).
The name of selected waveform is displayed on the upper left part. For details, please refer to
chapter of ECG Monitoring. Each ECG waveform still shows the gain of this channel and the
filtering method of ECG waveform. A 1-mv rod is on the left of ECG waveform.
When you choose/touch each waveform, submenu of waveform will be pop up, which always
occupies most of space of waveform area, so that some waveforms are invisible. The original
image will come back after the menu exit.
Waveforms are refreshed at the set speed. For adjustment on waveform refresh speed, refer to the
