Comtech EF Data DMD1050TS - BER Performance (Sequential); Figure 6-2. B;0;QPSK BER Performance (Sequential)

DMD1050TS Satellite Modem Board
Revision 1
Technical Specifications 6–10 MN-DMD1050TS
6.9.2 BER Performance (Sequential)
1E-9
1E-8
1E-7
1E-6
1E-5
1E-4
1E-3
1E-2
1E-1
0 1 2 3 4 5 6 7 8 9 10 11 12
BER
Eb/No in dB
Sequential
Decoder
Specification
1/2 Rate
Specification
3/4 Rate
Specification
7/8 Rate
Typical
Performance
B/O/QPSK Uncoded Theory

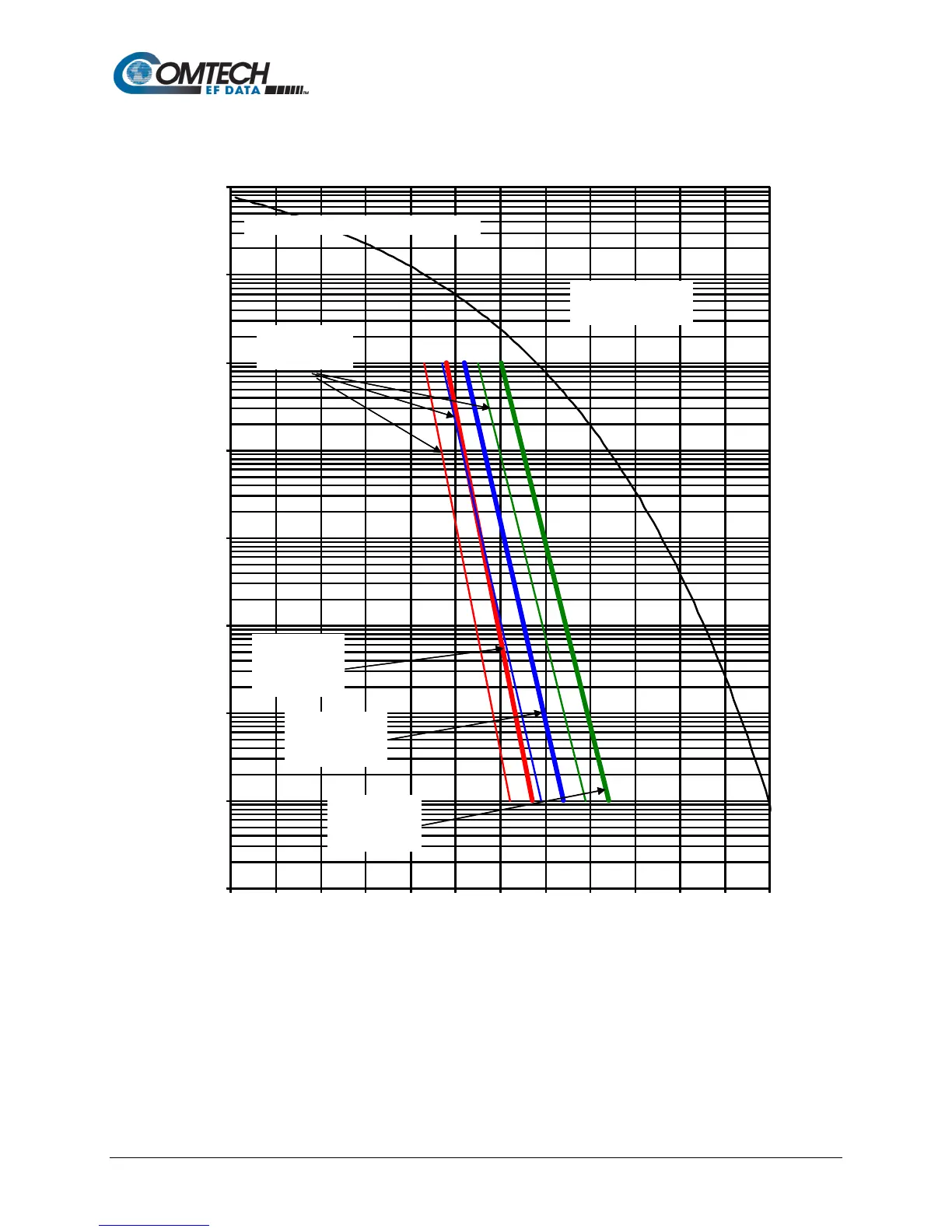

Figure 6-2. B/0/QPSK BER Performance (Sequential)
Note: Eb/No values include the effect of using differential decoding and v.35 descrambling.
