Comtech EF Data DMD1050TS - ACG Output Voltage; Figure 6-17. AGC Voltage Monitor

DMD1050TS Satellite Modem Board
Revision 1
Technical Specifications 6–30 MN-DMD1050TS
6.10 ACG Output Voltage
The AGC Output Voltage is a function of the Input Power Level in dBm. The AGC Output Voltage
is found on the Alarm connector Pin 24 of J2.

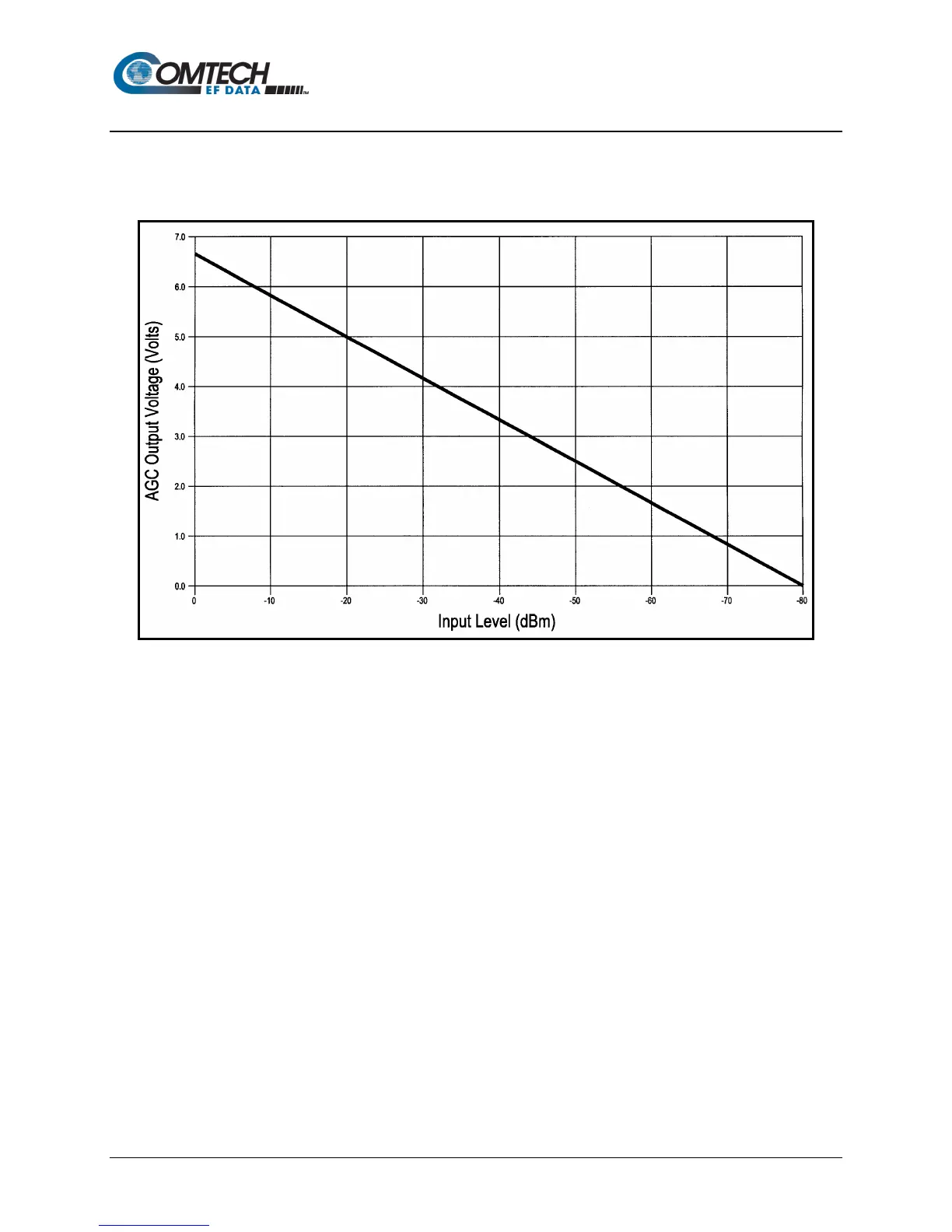

Figure 6-17. AGC Voltage Monitor
