Comtech EF Data DMD1050TS - Test Menu

DMD1050TS Satellite Modem Board
Revision 1
Web Browser 7–69 MN-DMD1050TS
7.7.6 Test Menu
The Test Menu has the following submenus:
• PATTERN/CARRIER
• I/Q PLOT
• SPECTRUM PLOT
7.7.6.1 Test | Pattern / Carrier Page

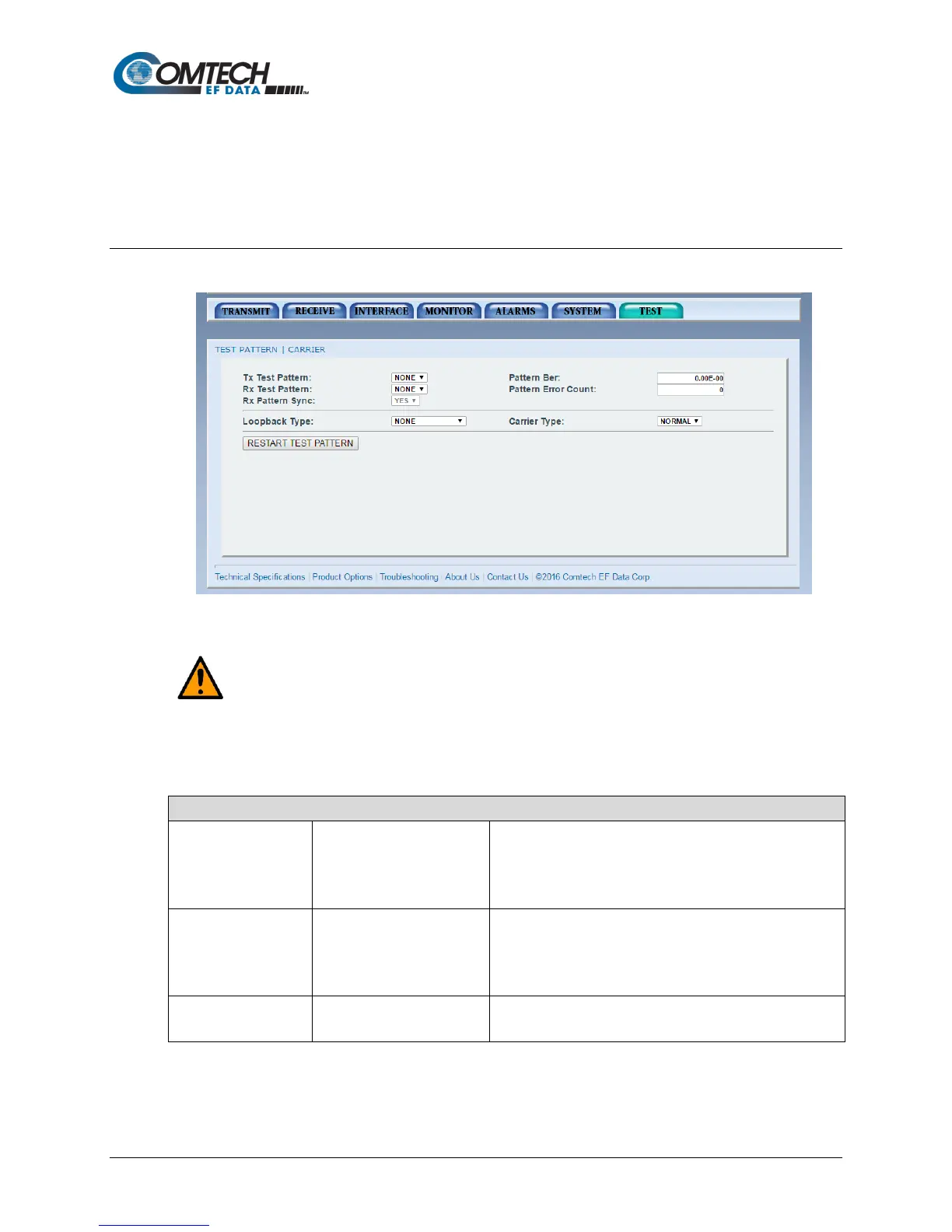

Figure 7-38. Test | Pattern / Carrier Page Example
CAUTION
You can cause undesirable network loops by using the modem’s loopback
capabilities with the Ethernet data interface.
To run any type of data test with an Ethernet interface, you must use two modems connected
back-to-back. Do not use one modem and a loopback.
Test | Pattern / Carrier Page
Tx Test Pattern
•
NONE
• 2047
• 2^15-1
• 2^23-1
Use to enable the available transmit test patterns.
Rx Test Pattern
•
NONE
• 2047
• 2^15-1
• 2^23-1
Use to enable the available receive test pattern.
Rx Pattern Sync • YES
• NO
Read only; yes means that the received test pattern is in
sync.
