Comtech EF Data DMD1050TS - BER Performance (8 PSK Trellis); Figure 6-4. 8 PSK BER Performance (Trellis)

DMD1050TS Satellite Modem Board
Revision 1
Technical Specifications 6–12 MN-DMD1050TS
6.9.4 BER Performance (8PSK Trellis)
1E-9
1E-8
1E-7
1E-6
1E-5
1E-4
1E-3
1E-2
1E-1
0 1 2 3 4 5 6 7 8 9 10 11 12
BER
Eb/No in dB
Trellis
Decoder
Specification
2/3 Rate
Specification
2/3 Rate w/RS
Typical
Performance
8PSK Uncoded Theory

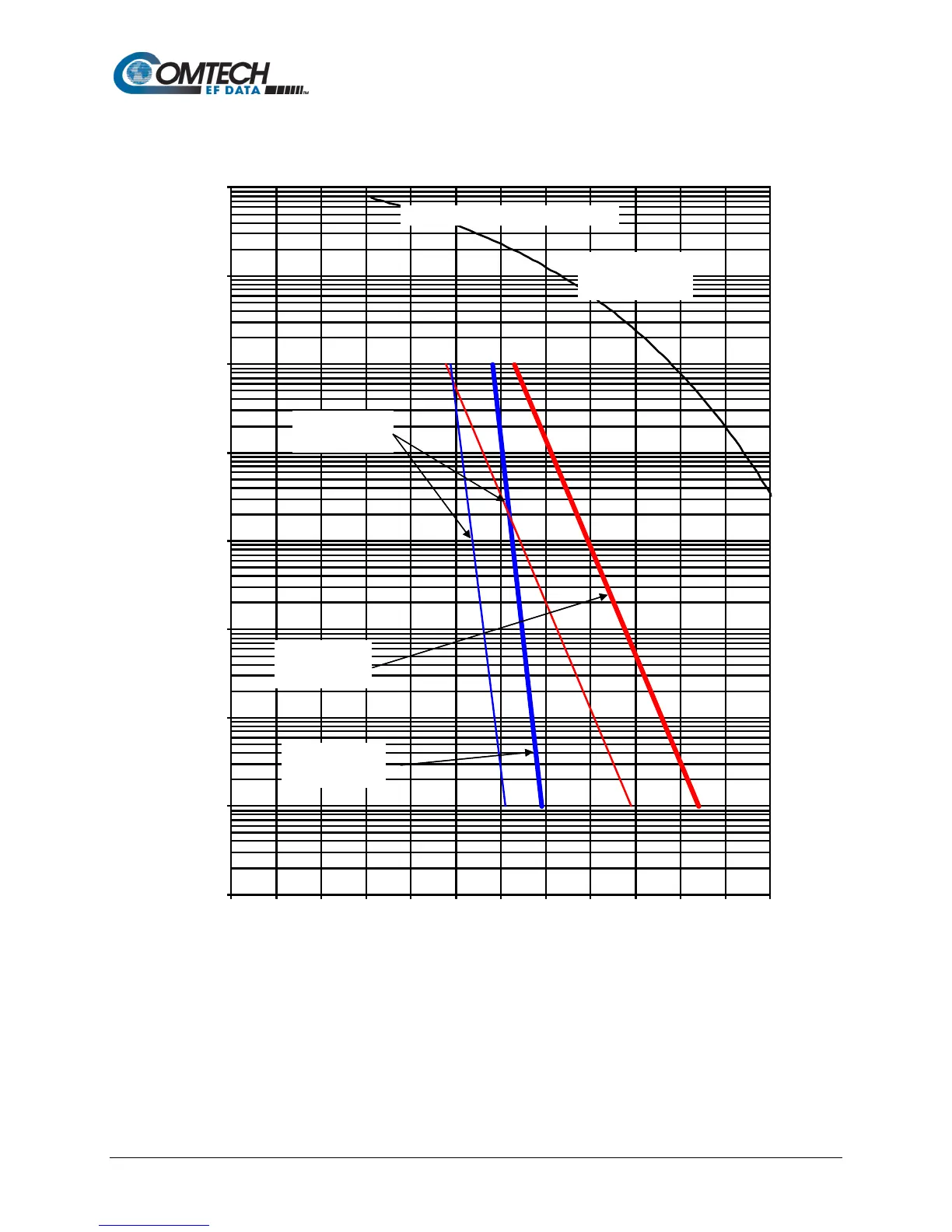

Figure 6-4. 8PSK BER Performance (Trellis)
Note: Eb/No values include the effect of using differential decoding and v.35 descrambling.
