DMD1050TS Satellite Modem Board
Revision 1
Web Browser 7–18 MN-DMD1050TS
7.7.1.2 Transmit | Data Page

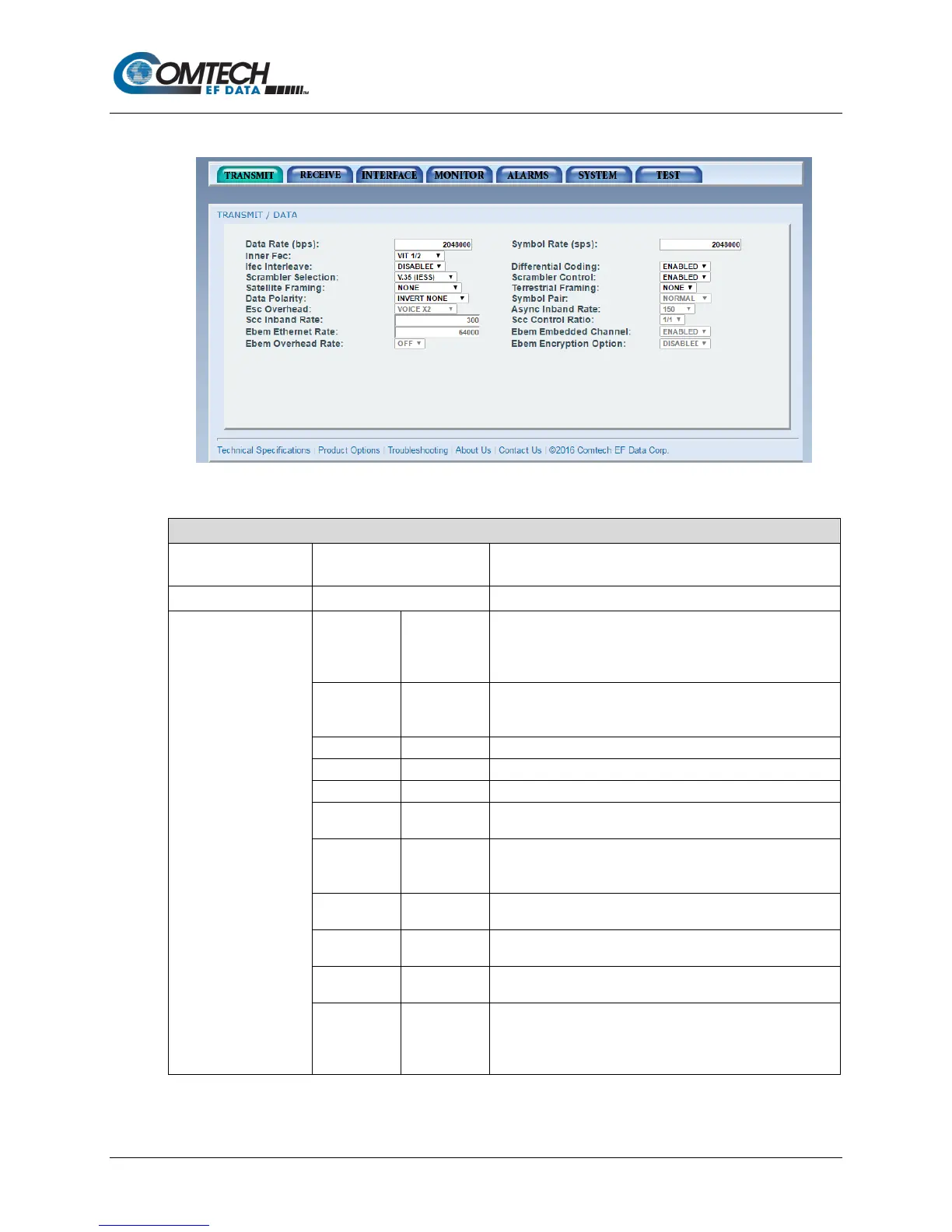

Figure 7-13. Transmit | Data Page Example
Transmit | Data Page
Data Rate (bps)
Set the Data Rate in bps steps. See the technical
specifications for data rates.
Symbol Rate (sps) Use to view the Symbol Rate.
Inner FEC
Viterbi
•
None
• 1/2
• 3/4
• 7/8
Sequential
•
1/2
• 3/4
• 7/8
CSEQ
•
3/4
CSC
•
3/4
Trellis
•
2/3
(8PSK)
TPC
•
5/16
• 21/44
(BPSK) ≤ 20Mbps
TPC
•
1/2
• 3/4
• 7/8
(OQPSK / QPSK)
≤ 20Mbps
TPC
•
3/4
•
7/8
(8PSK/ 8QAM)
TPC
•
3/4
• 7/8
(16QAM)
DVB VIT
•
2/3
•
5/6
DVB Trellis
•
3/4
• 5/6
• 7/8
• 8/9
