Technical Specifications 6–21 MN-DMD1050TS
6.9.13 16QAM BER Performance (LDPC)
1E-9
1E-8
1E-7
1E-6
1E-5
1E-4
1E-3
1E-2
1E-1
0 1 2 3 4 5 6 7 8 9 10 11 12
BER
Eb/No in dB
LDPC Decoder
Typical
Performance
16QAM Uncoded Theory
Specification
3/4 Rate

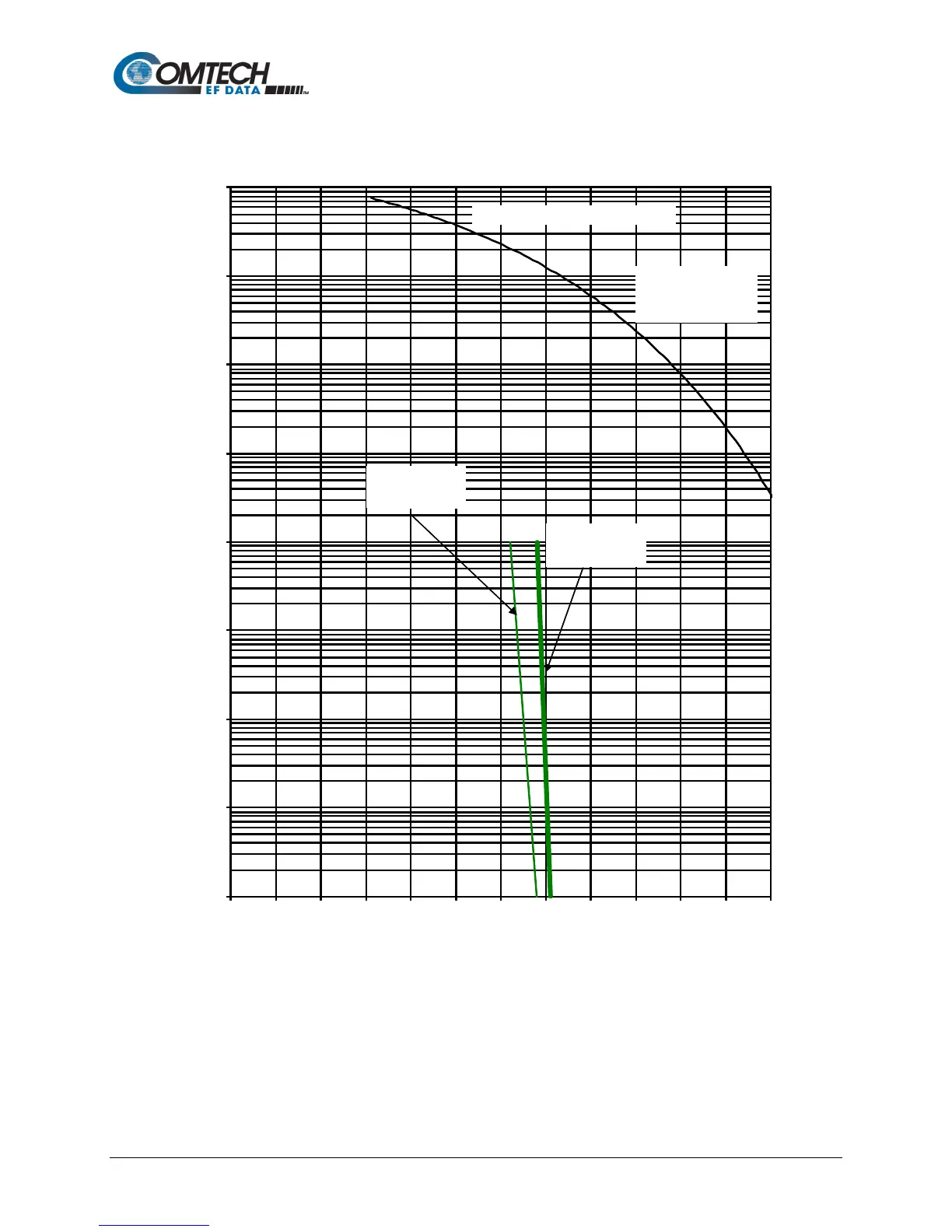

Figure 6-13. 16QAM BER Performance (LDPC)
