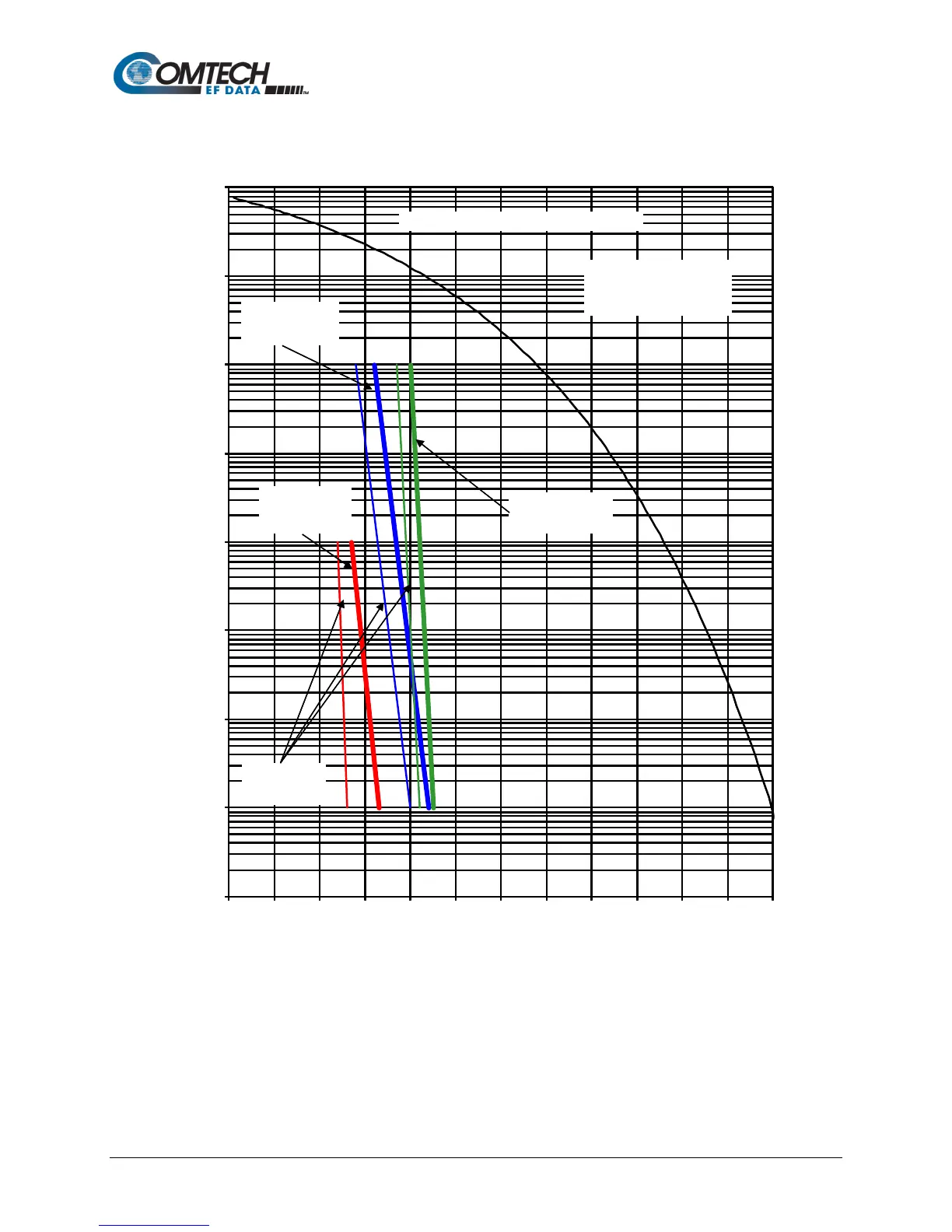

6.9.7 BER Performance ((O)QPSK Turbo)
1E-9
1E-8
1E-7
1E-6
1E-5
1E-4
1E-3
1E-2
1E-1
0 1 2 3 4 5 6 7 8 9 10 11 12
BER
Eb/No in dB
Turbo Decoder
Specification
1/2 Rate
Specification
3/4 Rate
Typical
Performance
B/O/QPSK Uncoded Theory
Specification
7/8 Rate
Figure 6-7. (O)QPSK BER Performance (Turbo)
