F.7 Remote Monitor and Control via SNMP
SNMP is the most widely used protocol for network management available today. It provides a
secure, open network standard, whereby you can use a PC with an MIB Browser to monitor and
control almost any Cisco router, gateway or Radyne modem.
Because the Enhanced Ethernet Interface offers a multi-port Ethernet interface and daisy chain
capability, you can control every modem easily from one central location. This is true for modems
in complex point to multi-point systems, as well. This all occurs without extensive network setup
or additional equipment at every remote site.
Figure F-6 shows complete Monitor and Control of all Radyne equipment from a centrally located
PC at the Hub.

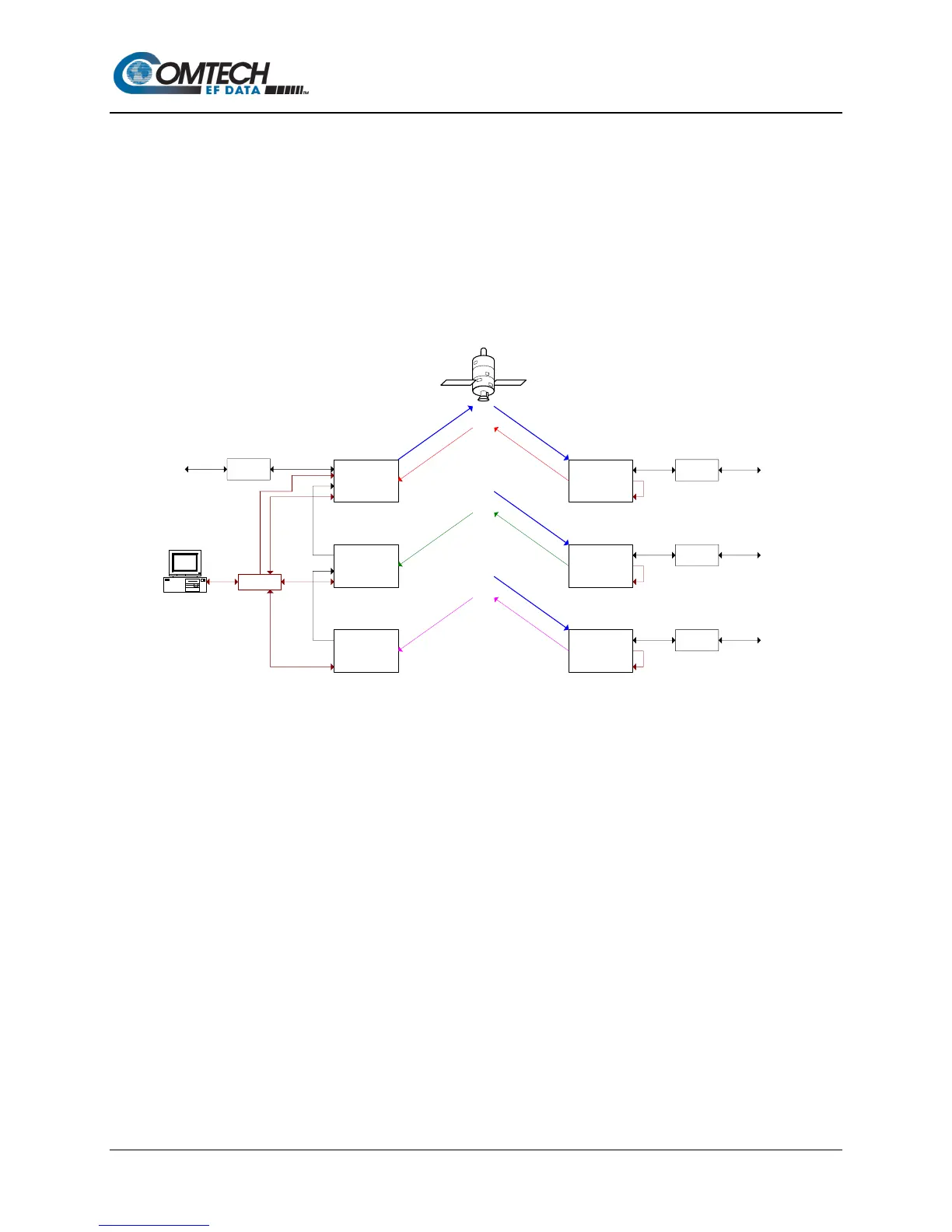

Figure F-6. Remote Monitor and Control
Switch
DMD 50
DMD 20
DMD20
DMD50
DMD50
DMD50
52
Mbps
52
Mbps
52 Mbps
5 Mbps
5
Mbps
Router
Router
Router
Router
Hub
LAN
Remote
LAN
Remote
LAN
Remote
LAN
52
Mbps
2 Mbps
2
Mbps
256 kbps
256 kbps
M&C
M&C
M&C
M&C
M&C
M&C
Daisy Chain
Daisy Chain
To Next Page
