Comtech EF Data DMD1050TS - BER Performance (16 QAM Turbo); Figure 6-10. 16 QAM BER Performance (Turbo)

DMD1050TS Satellite Modem Board
Revision 1
Technical Specifications 6–18 MN-DMD1050TS
6.9.10 BER Performance (16QAM Turbo)
1E-9
1E-8
1E-7
1E-6
1E-5
1E-4
1E-3
1E-2
1E-1
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
BER
Eb/No in dB
Turbo Decoder
Specification 3/4
Rate
Typical
Performance
16QAM Uncoded Theory
Specification 7/8
Rate

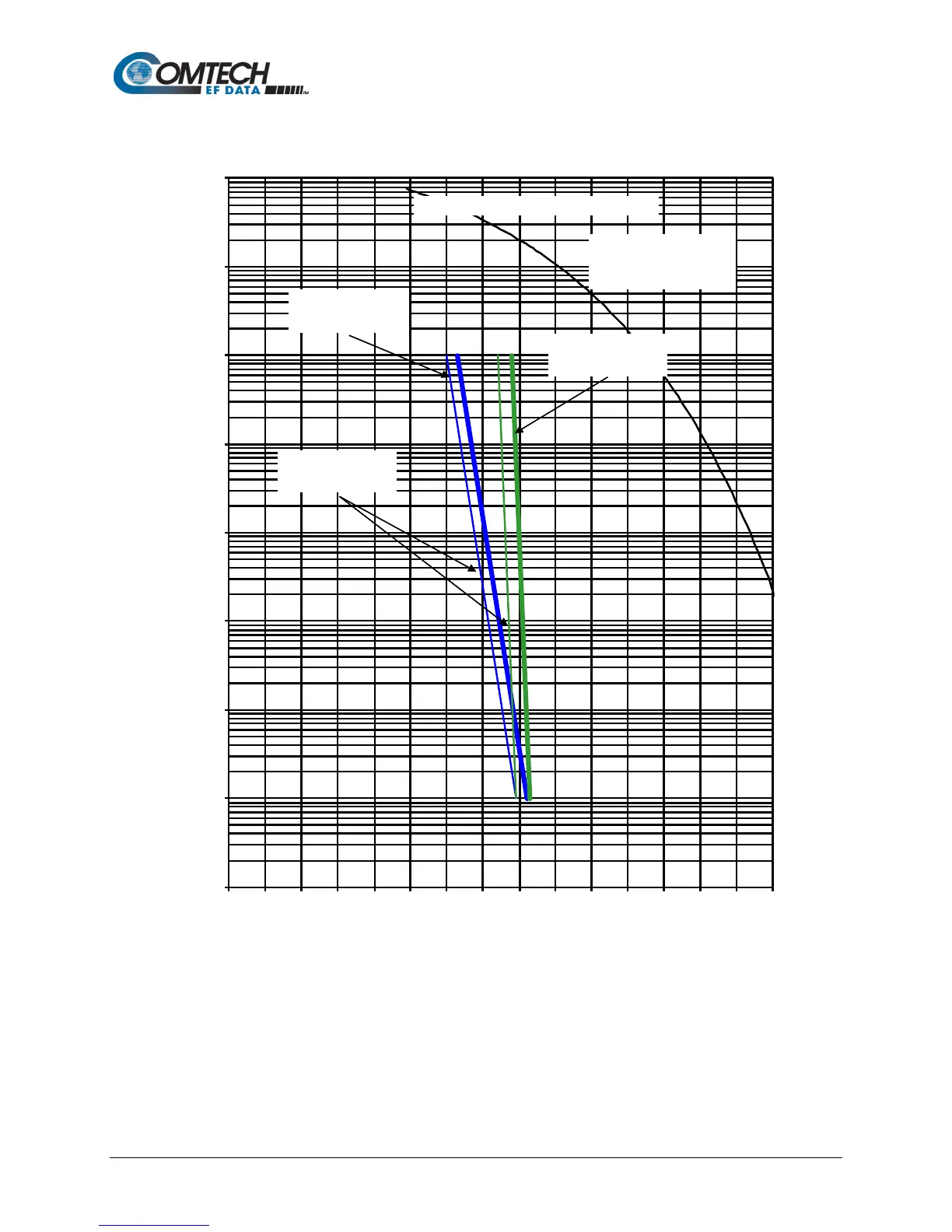

Figure 6-10. 16QAM BER Performance (Turbo)
