7.7.1.3 Transmit | Reed-Solomon Page
These selections are active only when the Reed-Solomon option is installed.

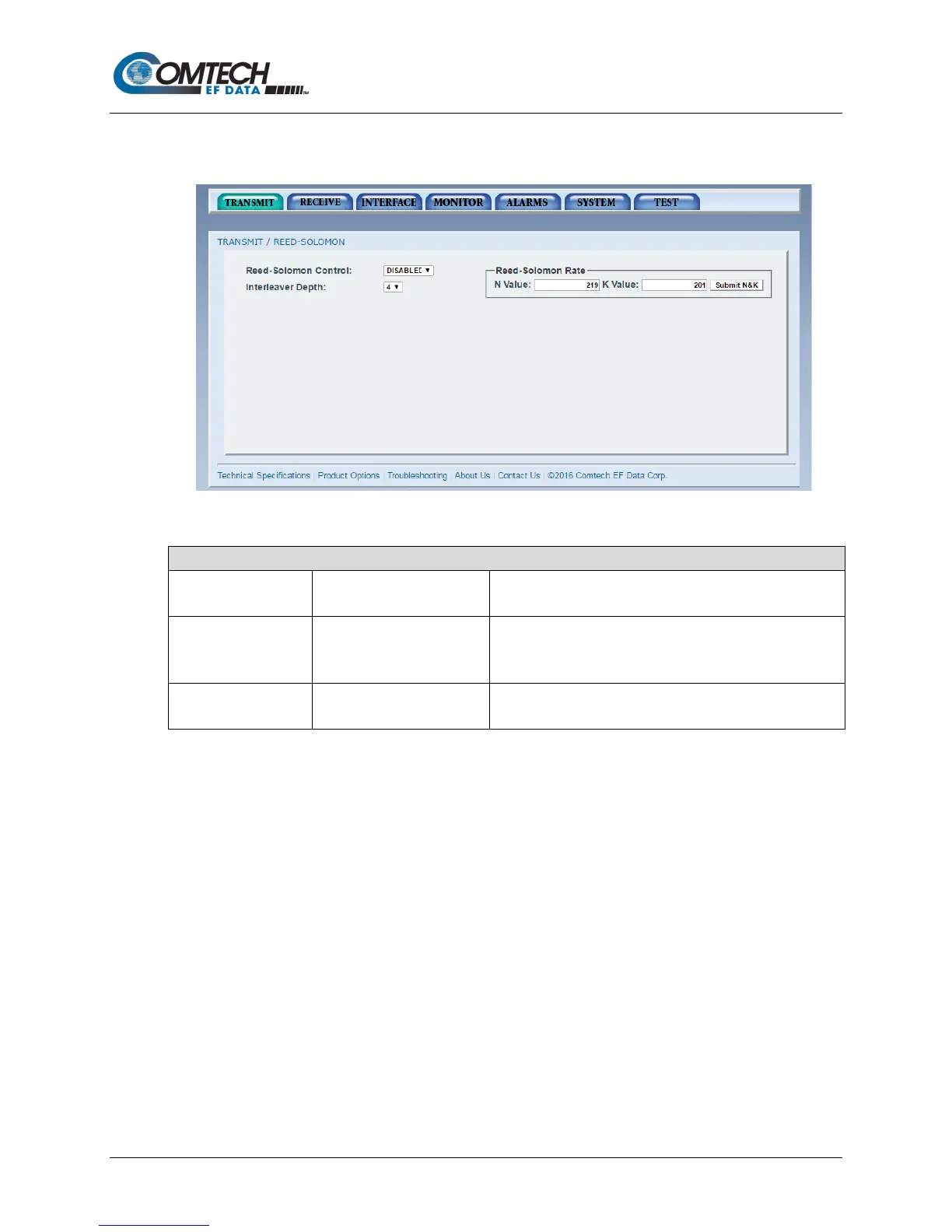

Figure 7-14. Transmit | Reed-Solomon Page Example
Transmit | Reed-Solomon Page
Reed-Solomon
Control
•
DISABLED
• ENABLED
Enable or disable the R-S Encoder.
Interleaver Depth • 4
• 8
• 12
Use to select the R-S interleaver depth. In Closed Net
Mode, select a depth of 4 or 8.
Reed-Solomon Rate • N Value
• K Value
Use to select custom R-S Codes in Closed Net Mode. This
shows the currently used n, k, R-S Codes.
