DMD1050TS Satellite Modem Board
Revision 1
Web Browser 7–23 MN-DMD1050TS
7.7.1.4 Transmit | ODU-BUC Page

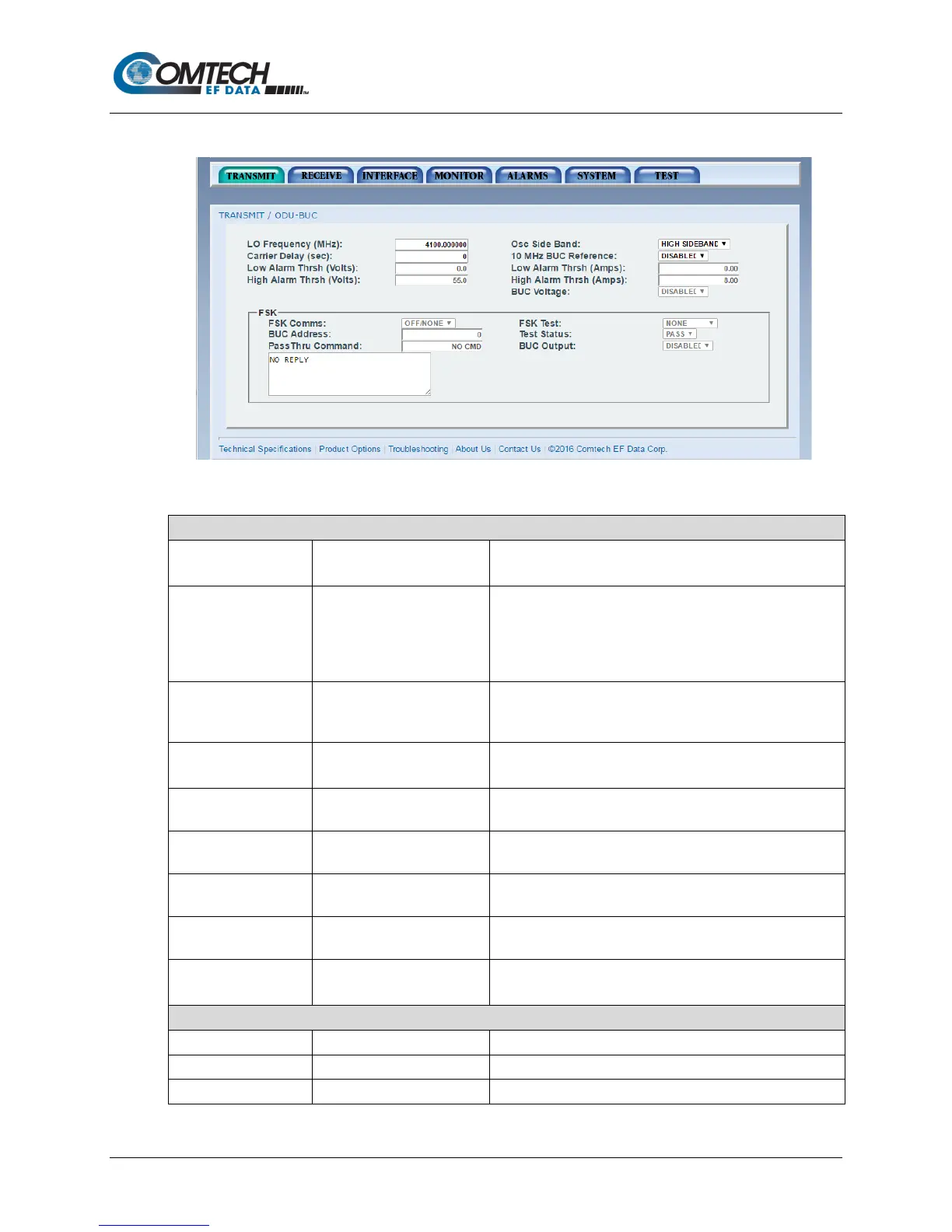

Figure 7-15. Transmit | ODU-BUC Page Example
Transmit | ODU-BUC Page
LO Frequency (MHz)
•
DISABLED
• ENABLED
Enable or disable the Local Oscillator frequency of the BUC
LO.
Osc Side Band • LOW SIDEBAND
• HIGH SIDEBAND
Use to select the location of the BUC LO. Enter the location
of the BUC LO for the UPLINK FREQUENCY to show
correctly. The BUC LO can be higher or lower in frequency
than the BUC output frequency. If the BUC LO is higher in
frequency, then enter HIGH SIDEBAND.
Carrier Delay (sec) • 0 to 255
Use to select the time delay to occur after power-up, before
the Tx Carrier can be enabled. This allows time for the BUC
to stabilize.
10 MHz BUC
Reference
• DISABLED
• ENABLED
Enable or disable the 10 MHz BUC reference clock.
Low Alarm Thrsh
(Volts)
• 0.00
Use to set the lower alarm limit/threshold for the BUC
voltage.
Low Alarm Thrsh
(Amps)
• 0.00
Use to set the lower alarm limit/threshold for the BUC
current.
High Alarm Thrsh
(Volts)
• 0.00
Use to set the high alarm limit/threshold for the BUC
voltage.
High Alarm Thrsh
(Amps)
• 0.00
Use to set the high alarm limit/threshold for the BUC
current.
BUC Voltage • DISABLED
• ENABLED
Enable or disable the BUC supply voltage.
FSK
FSK Comms
Not Available on the DMD1050TS.
FSK Test
Not Available on the DMD1050TS.
BUC Address
Not Available on the DMD1050TS.
