DMD1050TS Satellite Modem Board
Revision 1
Rear Panel Interface 4–7 MN-DMD1050TS
Table 4-4. Default/Reset connections: 3-Pin male Connector (JP1 & JP2)
Install Shunt/Jumper Between Pins No.
Pin 1 & 2

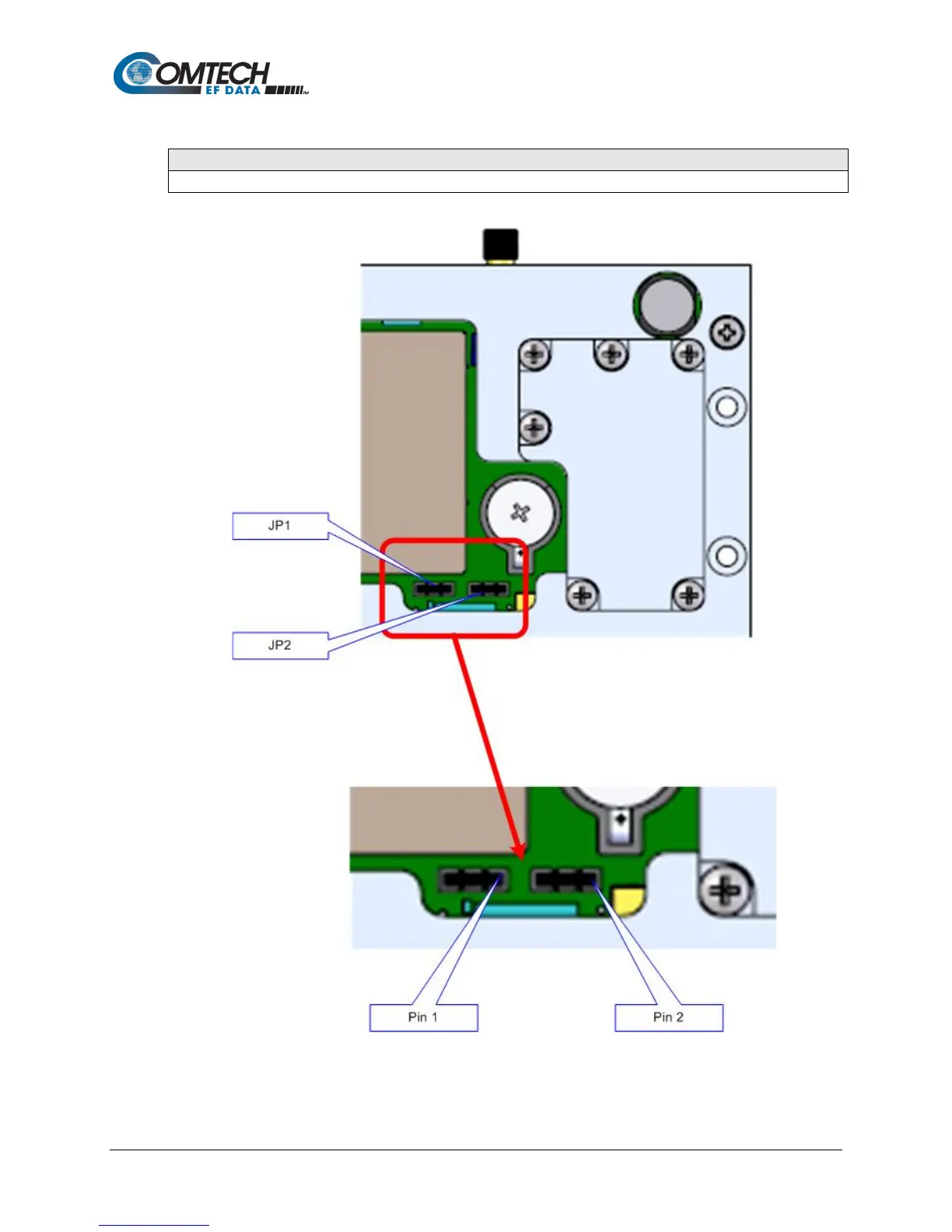

Figure 4-5. Default/Shorting Plug (JP1 and JP2)
