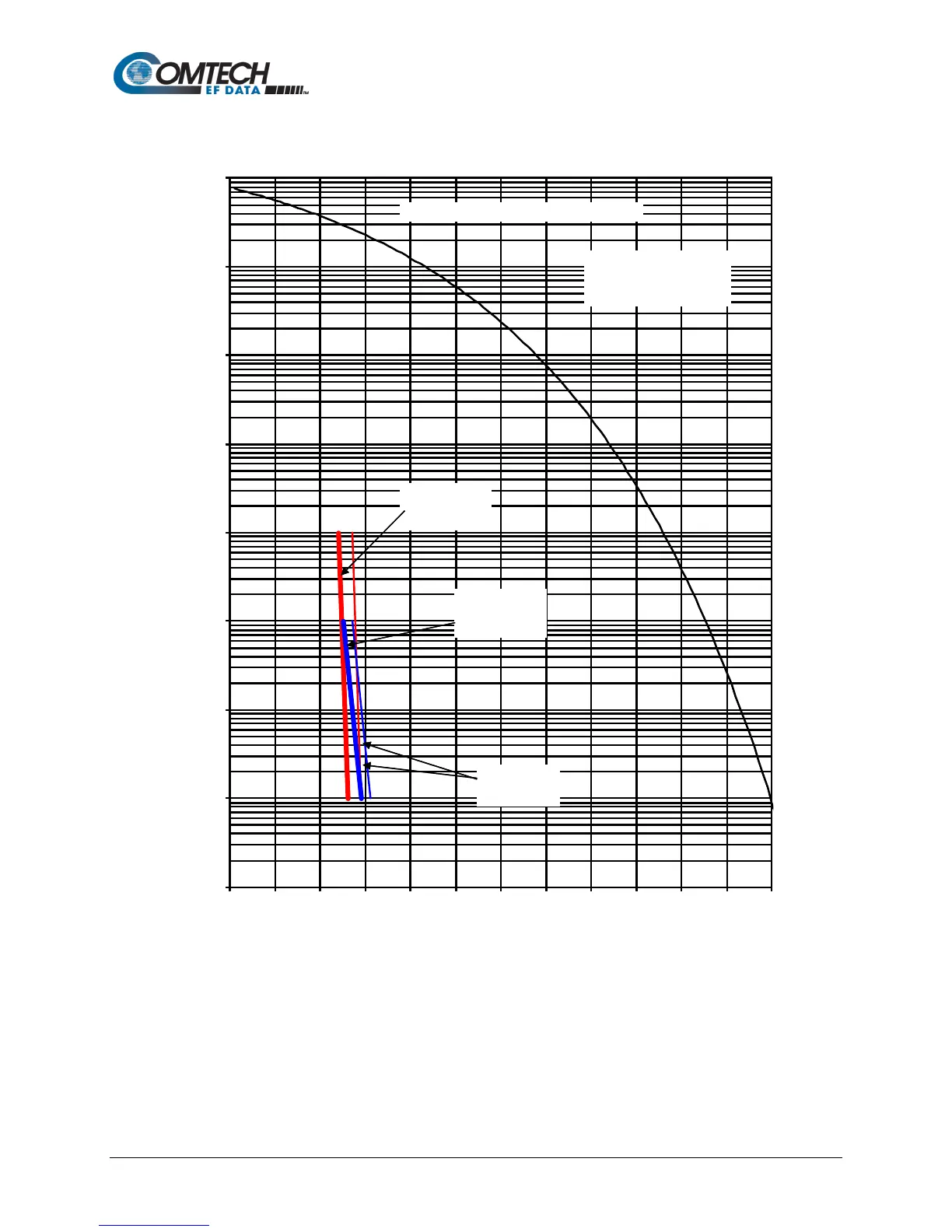

Comtech EF Data DMD1050TS - BER Performance (BPSK Turbo); Figure 6-8. BPSK BER Performance (Turbo)

DMD1050TS Satellite Modem Board
Revision 1
Technical Specifications 6–16 MN-DMD1050TS
6.9.8 BER Performance (BPSK Turbo)
1E-9
1E-8
1E-7
1E-6
1E-5
1E-4
1E-3
1E-2
1E-1
0 1 2 3 4 5 6 7 8 9 10 11 12
BER
Eb/No in dB
Turbo Decoder
Specification
5/16 Rate
Typical
Performance
B/O/QPSK Uncoded Theory
Specification
21/44 Rate
Figure 6-8. BPSK BER Performance (Turbo)
