7.7.1.6 Transmit | ITA Page

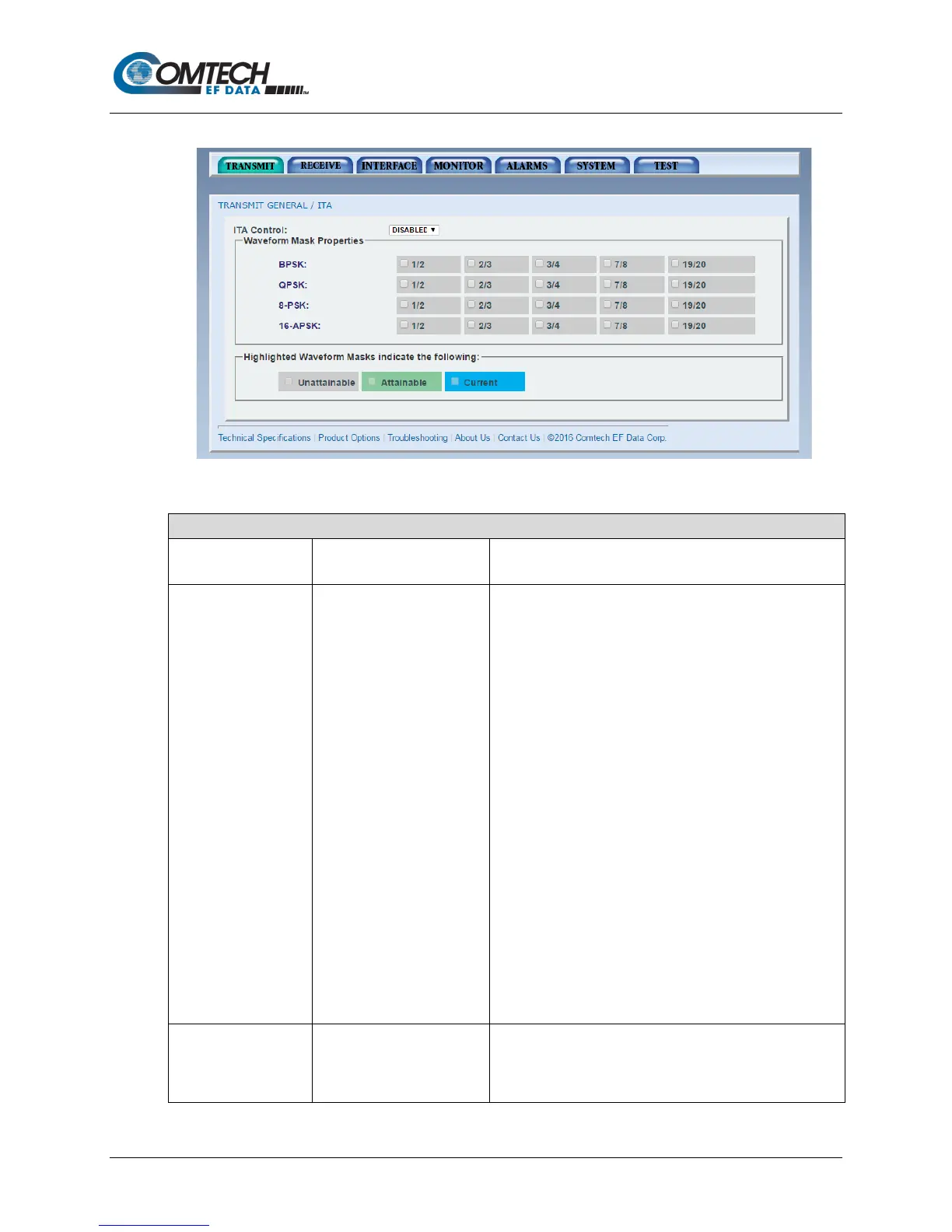

Figure 7-17. Transmit | ITA Page Example
Transmit | ITA Page
ITA Control
• DISABLED
• ENABLED
Enable or disable the ITA function.
Waveform Mask
Properties
• BPSK
o 1/2
o 2/3
o 3/4
o 7/8
o 19/20
• QPSK
o 1/2
o 2/3
o 3/4
o 7/8
o 19/20
• 8-PSK
o 1/2
o 2/3
o 3/4
o 7/8
o 19/20
• 16-APSK
o 1/2
o 2/3
o 3/4
o 7/8
o 19/20
Use to select the mod/code rate.
Highlighted
Waveform Mask
Indicate the
Following
• Unattainable
• Attainable
• Current
Displa
ys the status of each waveform when ITA is engaged.
Only available in EBEM mode.
