7.7.2.2 Receive | Data Page

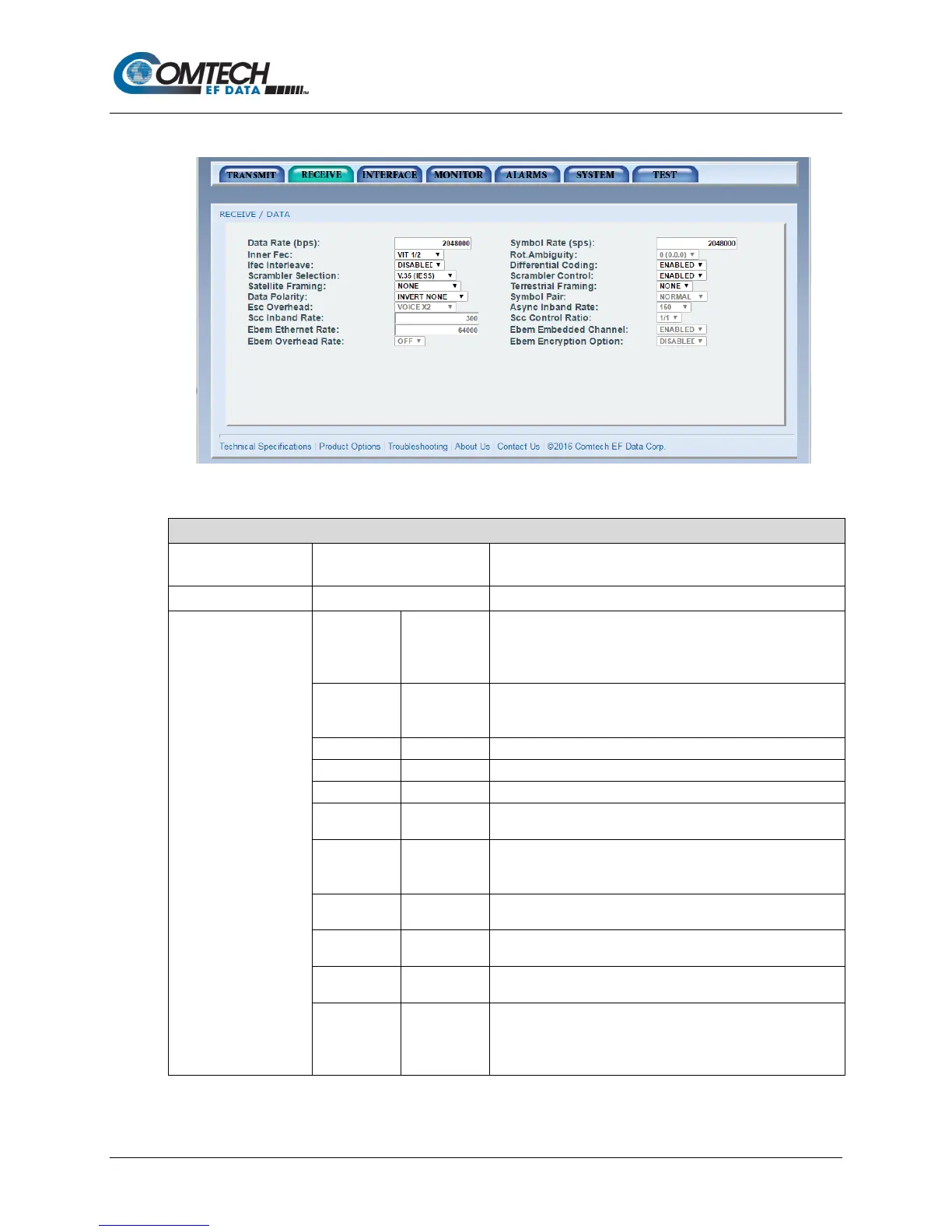

Figure 7-19. Receive | Data Page Example
Receive | Data Page
Data Rate (bps)
Refer to Technical
Specifications.
Use the keypad to set the Data Rate in bps steps. See the
technical specifications for data rates.
Symbol Rate (sps)
Use to view the Symbol Rate.
Inner FEC
Viterbi
•
None
• 1/2
• 3/4
•
7/8
Sequential
•
1/2
• 3/4
•
7/8
CSEQ
•
3/4
CSC
•
3/4
Trellis
•
2/3
(8PSK)
TPC
•
5/16
• 21/44
(BPSK) ≤ 20Mbps
TPC
•
1/2
• 3/4
•
7/8
(OQPSK / QPSK)
≤ 20Mbps
TPC
•
3/4
• 7/8
(8PSK/ 8QAM)
TPC
•
3/4
•
7/8
(16QAM)
DVB VIT
•
2/3
• 5/6
DVB Trellis
•
3/4
• 5/6
• 7/8
•
8/9
