7.7.4.7 Alarms | Receive Page

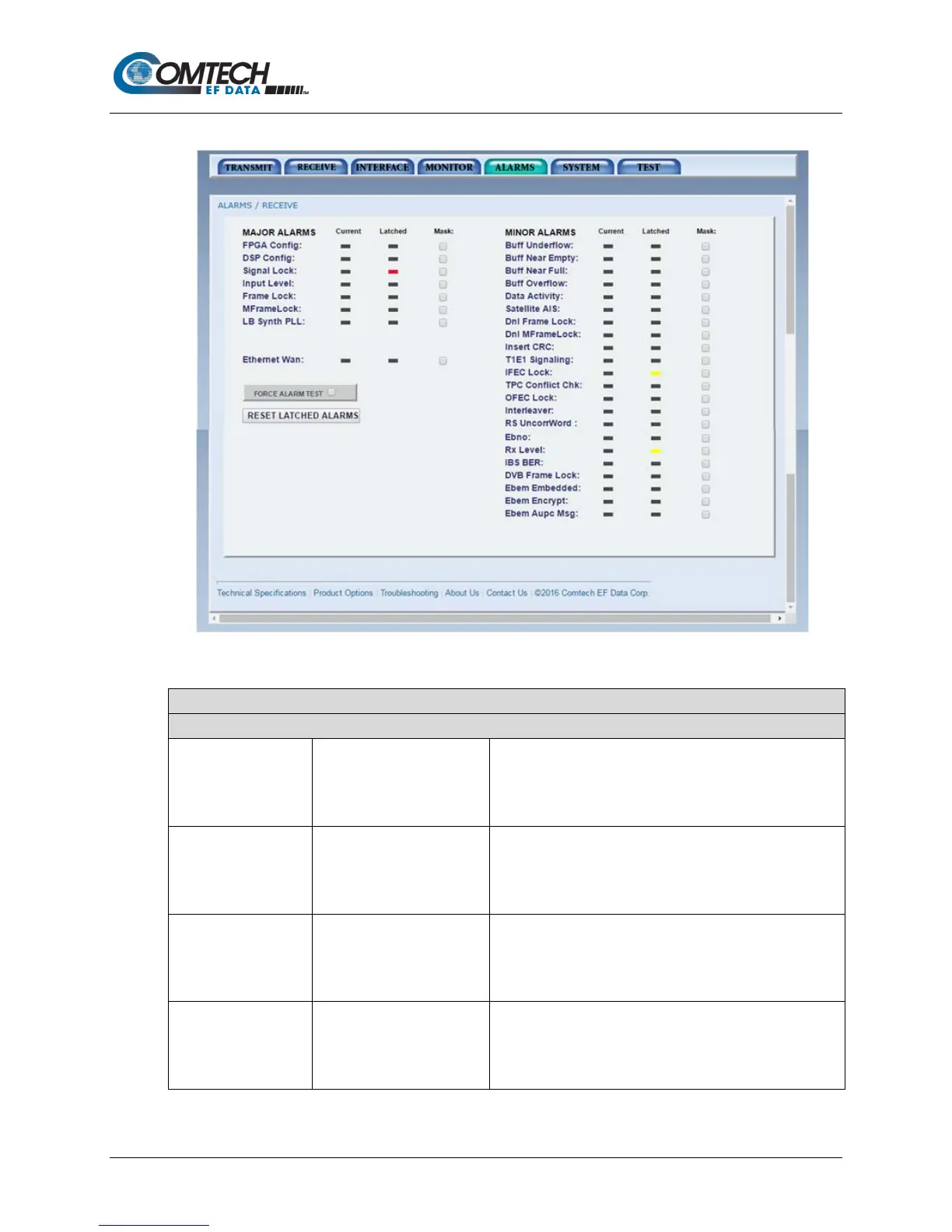

Figure 7-32. Alarms | Receive Page Example
Alarms | Receive Page
MAJOR ALARMS
FPGA Config
•
Current
• Latched
• Masked (checkmark)
• Unmasked (no check)
This shows if a receive FPGA hardware failure exists.
DSP Config
• Current
• Latched
• Masked (checkmark)
• Unmasked (no check)
This shows if a receive DSP failure exists.
Signal Lock • Current
• Latched
• Masked (checkmark)
• Unmasked (no check)
This shows if the demod cannot lock to a signal.
Input Level
•
Current
• Latched
• Masked (checkmark)
• Unmasked (no check)
This shows if the Rx signal level has fallen below input
threshold.
