Installation Manual: Standard 360a Model Y (360y) Label Applicator
2
UNBOXING
Loose parts and components are packed separately within the box the applicator is shipped in. A “Resource Guide and Component
List” comes with your applicator [1]. This guide has an Applicator Component Checklist [1A] marking the parts and components that
are not already attached. These are the “loose parts” to the applicator. The applicator comes already put together except for these
separate items.
NOTE: Reels 16 in. and larger also come packed separately. Occasionally, the valve bank comes disassembled. Do not discard
anything taken from inside the box until you have gone over the checklist and confirmed everything is accounted for.
If anything is missing, contact the manufacturer as soon as possible. See the Contact and Support
s
ection for contact information
and have your applicator serial number ready. The serial number is found under the Applicator Component Checklist section on the
“Content List and Resource Guide” [1B]. The serial number can also be found on the side of the applicator above the power switch.
W
hen ready to set up the applicator, see the QR code next to the Applicator Manuals section on the Resource Guide and
Component List [1C]. This code links directly to the product manuals on CTM’s website where users can choose the correct manual
for the applicator purchased.
Additional parts and components are available to purchase. The second QR code [1D] on the Resource Guide and Component
List is under the Product Line and Accessories section and directly links to CTM’s website where additional products are listed.

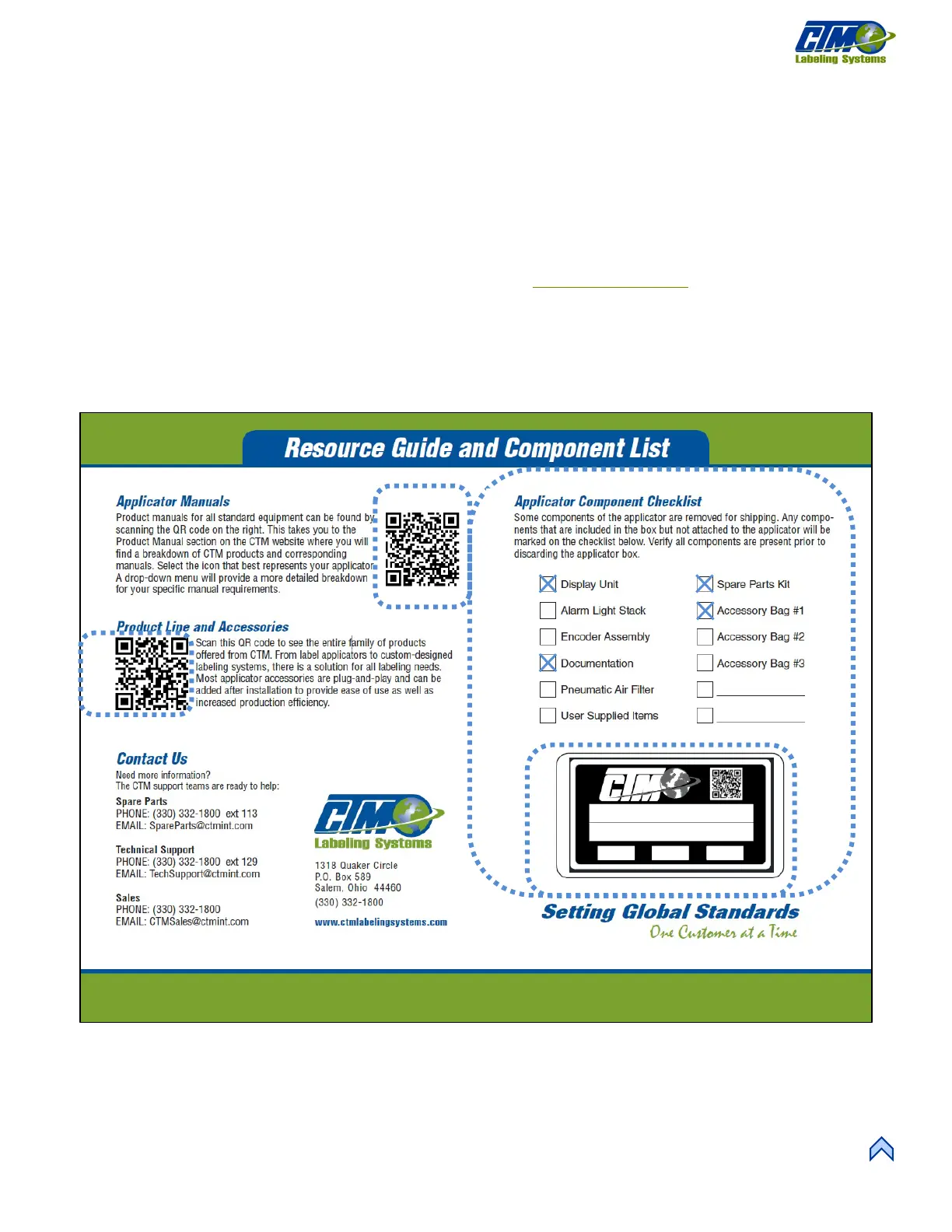

[1] Resource Guide and Component List
