Installation Manual: Standard 360a Model Y (360y) Label Applicator
11
EQUIPMENT OVERVIEW
The following sections show what the basic, standard applicator setups should look like. If your setup is a little different check out the
web path diagrams listed on our website
. The following is a list of where to find the web path diagrams for each nose assembly:
• Air Blow setup: pages 1 – 60.
• RVB setup: pages 61 – 115.
• Merge setup: pages 116 – 167.
• Tamp setup(s): pages 168 – 199.
• DAT setup: pages 200 – 207

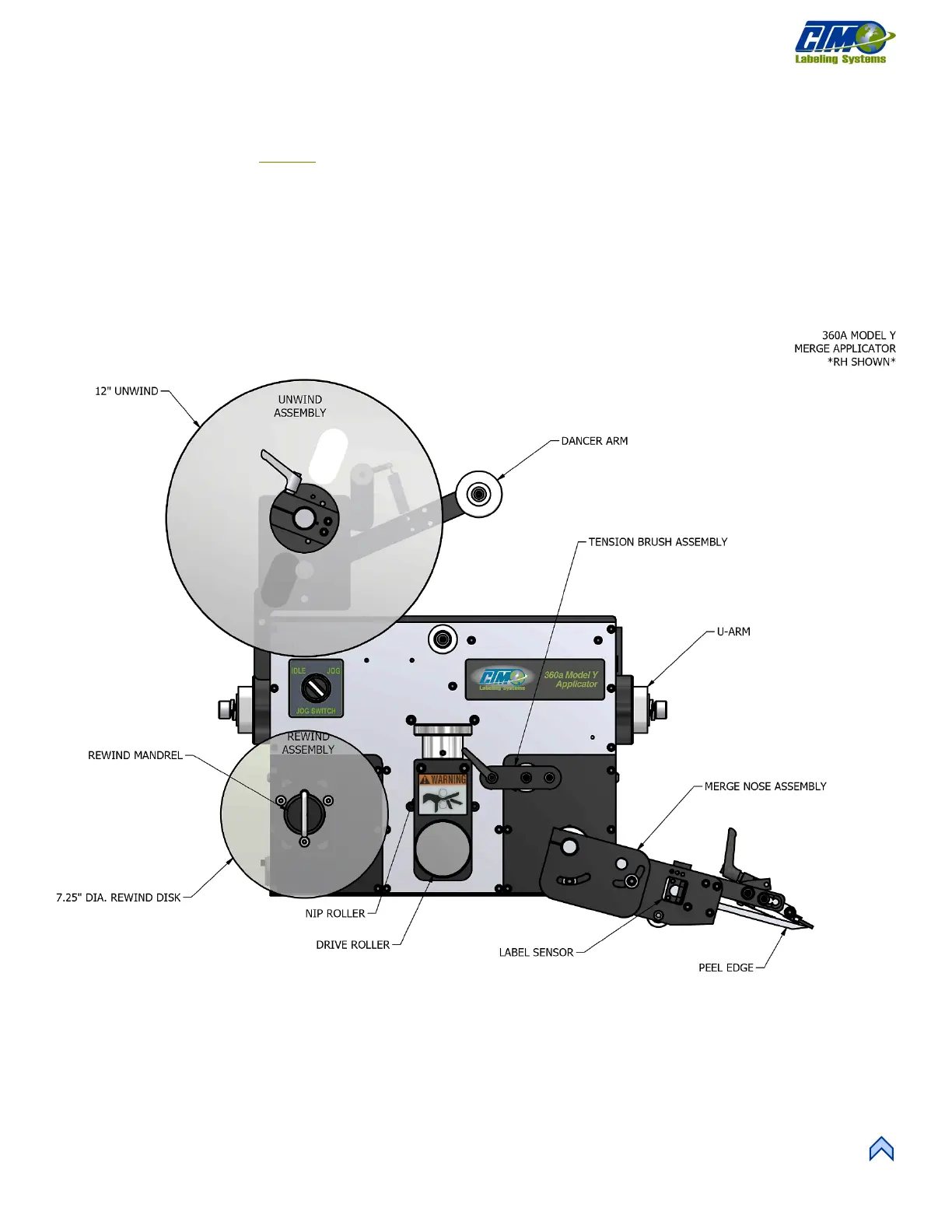

Merge Applicator
