Maintenance Manual: Standard 360a Model Y (360y) Label Applicator
11
Merge Peel Edge Changeover
1. Remove the label sensor from the peel edge and
remount on the opposite side rail. The open end of
the U-shaped sensor should face towards the inside.
2. Remove the guide rollers and remount to the
opposite side of the peel edge mounting plate.
3. Remove the peel edge and remount to the opposite
side of the mounting plate using the tapped holes on
the other end of the peel edge. Ensure the beveled
edge is down and facing the same direction as it
was originally.
4. Remove the label tension spring mounting bar and
remount on the opposite side. The tension spring
and the adjustment stop must be reversed on the
mounting bar as well.
Blow Box Peel Edge Changeover
1. Remove the label sensor from the peel edge
assembly and remount on the opposite side making
sure that the fiber cables are threaded through from
the opposite side. The open end of the U-shaped
sensor should face towards the inside.
2. Remove the guide rollers and remount to the
opposite side of the peel edge mounting plate.
3. Remove the peel edge and remount to the opposite
side of the mounting plate using the tapped holes on
the other end of the peel edge. Ensure the beveled
edge is down and facing the same direction as it
was originally.
4. Remove the label tension spring mounting bar and
remount on the opposite side. The tension spring
and the adjustment stop must be reversed on the mounting bar as well.
5. Remove the air assist tube and insert through the opposite side of the mounting plate and re-attach.
Blow Box Assembly Changeover
1. Remove the air blast fitting from the back of the
nose assembly mounting plate and set aside.
2. Loosen the two knurled knobs on the back of the
fan box and lock it in the upright position.
3. Remove the air blast manifold, label grid, and the
air jet storage block. Remount on the opposite side
of the nose assembly mounting plate.
4. Pull the fan wiring harness through the slotted
opening in the nose mounting plate.
5. Remove the four screws holding the fan box hinge
to the mounting plate and remount the fan box on
the opposite side of the nose mounting plate.
6. Push the fan wiring harness through the slotted
opening from the opposite side.
7. Re-install the air blast fitting in the nose assembly mounting plate.

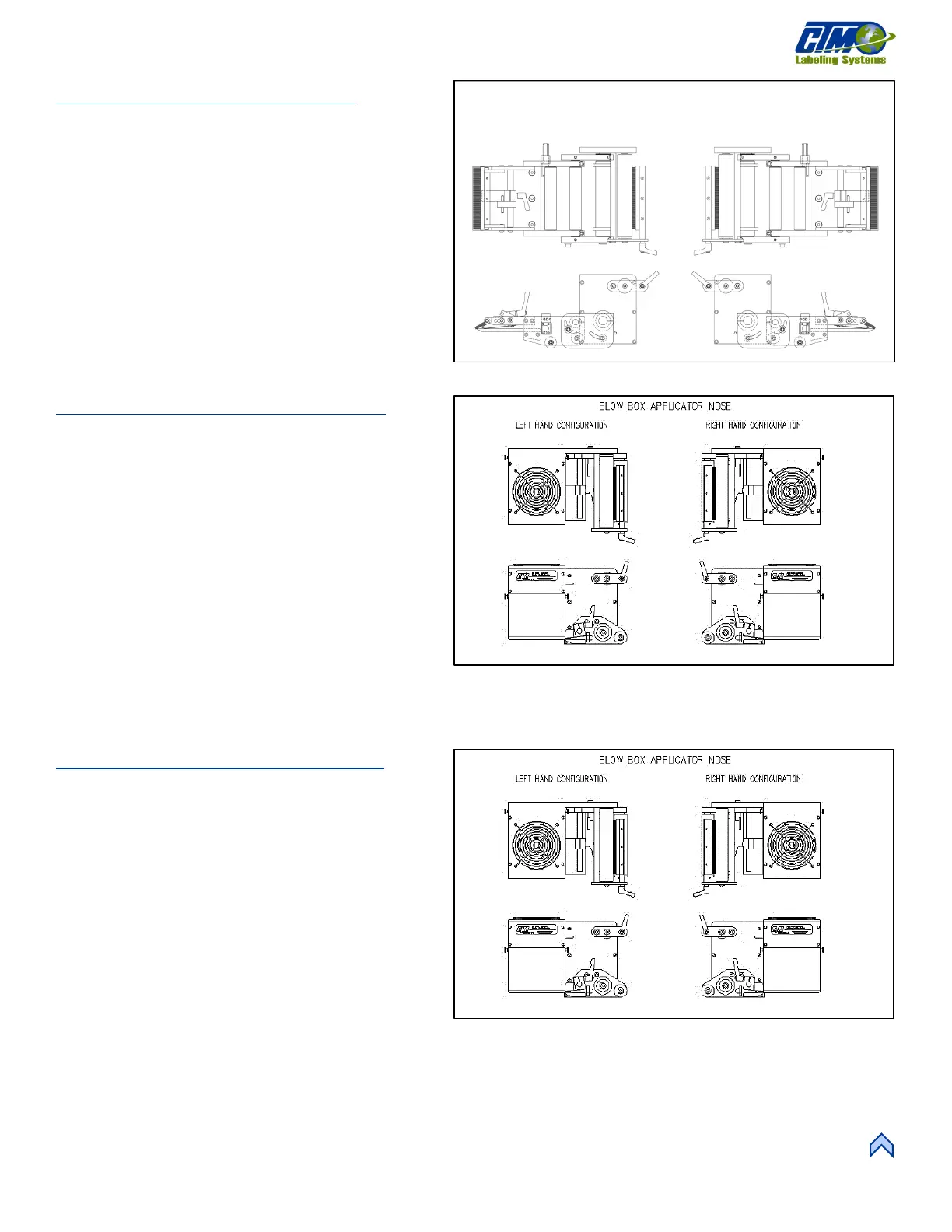

[23] Blow Box Nose and Peel Edge
[22] Blow Box Nose and Peel Edge
[21] Merge Nose and Peel Edge
