CTM 360y - Manual Teach; Leading Edge Teach; Trailing Edge Teach

Operator’s Manual: Standard 360a Model Y (360y) Label Applicator
25
360y HMI Applicator Display
03/2023

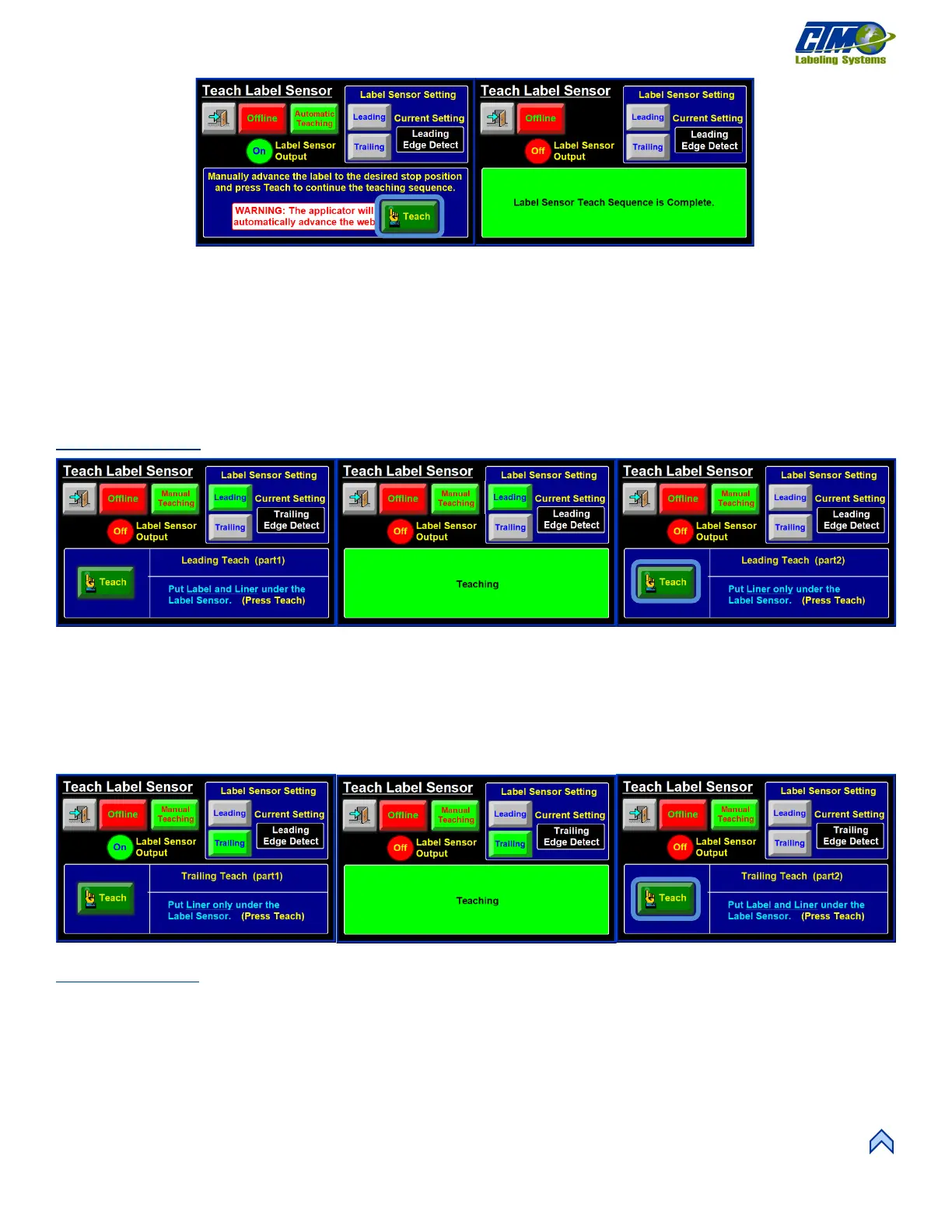

3. Turn the Drive Roller to move the web liner so the labels are at the desired label stop position and press the Teach button
again [67]. Two labels are dispensed to determine the label stop and label length values.
4. The auto teach is complete and the applicator saw the sensor output [68]. If the applicator did not see the sensor output,
complete a manual teach or try an auto teach again with a longer auto teach feed length value.
Manual Teach
A manual teach is used when the label gap is not seen by the applicator during an auto teach. A manual teach has the same sensor
output indicator as auto teach.
Leading Edge Teach
1. Tap the edge detection best suited for the labeling sequence: Leading Edge or Trailing Edge [69A].
2. Place the web liner underneath the sensor and tap the Teach button [69B]. The bottom part of the screen says Teaching
[70].
3. Move the web liner so that only the liner, or label gap, is under the sensor. Tap the Teach button again [71] and the bottom
part of the screen says Teaching again.
Trailing Edge Teach
1. Tap the edge detection best suited for the labeling sequence: Leading Edge or Trailing Edge [72A].
2. Place the web liner so only the liner, or label gap, is under the sensor and tap the Teach button [72B] The bottom part of the
screen says Teaching [73].
3. Move the web liner so the web liner and label are under the sensor. Tap the Teach button again [74] and the bottom part of
the screen says Teaching again.
[70] Manual Leading Edge Teach Part 1
A
B
A
B
[74] Manual Trailing Edge Teach Part 1
[72] Teach Trailing Edge
[69] Manual Leading Edge Teach Part 2
[68] Auto Teach Complete
[67] Auto Teach Part 2
[71]Teacing Leading Edge
[73] Manual Trailing Edge Teach Part 2
