xStack
®
DGS-3600 Series Layer 3 Managed Gigabit Ethernet Switch

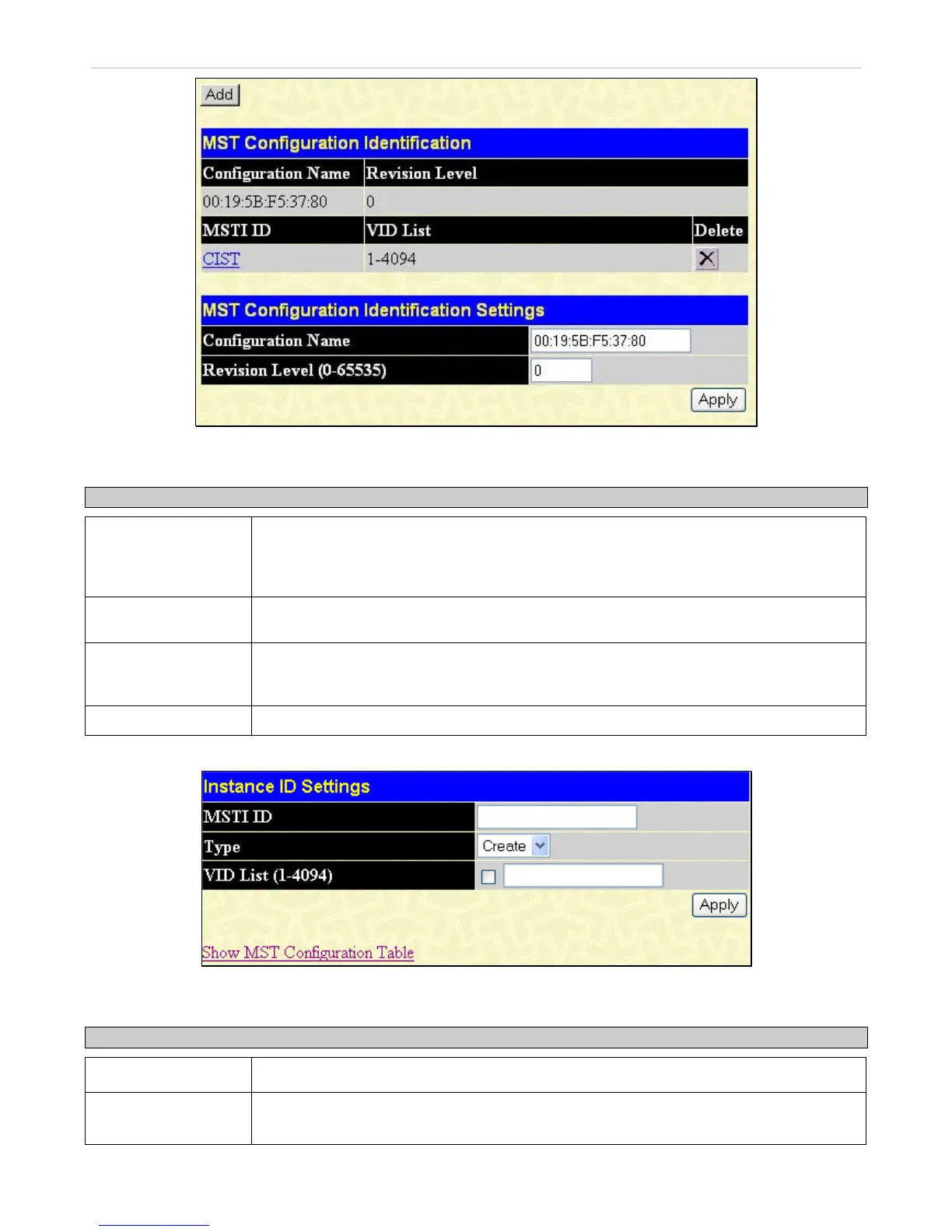

Figure 3- 52. MST Configuration Identification window
The window above contains the following information:
Parameter Description
Configuration Name A previously configured name set on the Switch to uniquely identify the MSTI (Multiple
Spanning Tree Instance). If a configuration name is not set, this field will show the MAC
address to the device running MSTP. This field can be set in the STP Bridge Global Settings
window.
Revision Level (0-
65535)
This value, along with the Configuration Name will identify the MSTP region configured on
the Switch. The user may choose a value between 0 and 65535 with a default setting of 0.
MSTI ID This field shows the MSTI IDs currently set on the Switch. This field will always have the
CIST MSTI, which may be configured but not deleted. Clicking the hyperlinked name will
open a new window for configuring parameters associated with that particular MSTI.
VID List
This field displays the VLAN IDs associated with the specific MSTI.
Clicking the Add button will reveal the following window to configure:
Figure 3- 53. Instance ID Settings window (Add)
The user may configure the following parameters to create a MSTI in the Switch.
Parameter Description
MSTI ID
Enter a number between 1 and 15 to set a new MSTI on the Switch.
Type
Create is selected to create a new MSTI. No other choices are available for this field when
creating a new MSTI.
137
