VID List (1-4094)
This field is used to specify the VID range from configured VLANs set on the Switch.
Supported VIDs on the Switch range from ID number 1 to 4094.
Click Apply to implement changes made.
To configure the settings for the CIST, click on its hyperlinked name in the MST Configuration Identification window, which
will reveal the following window to configure:

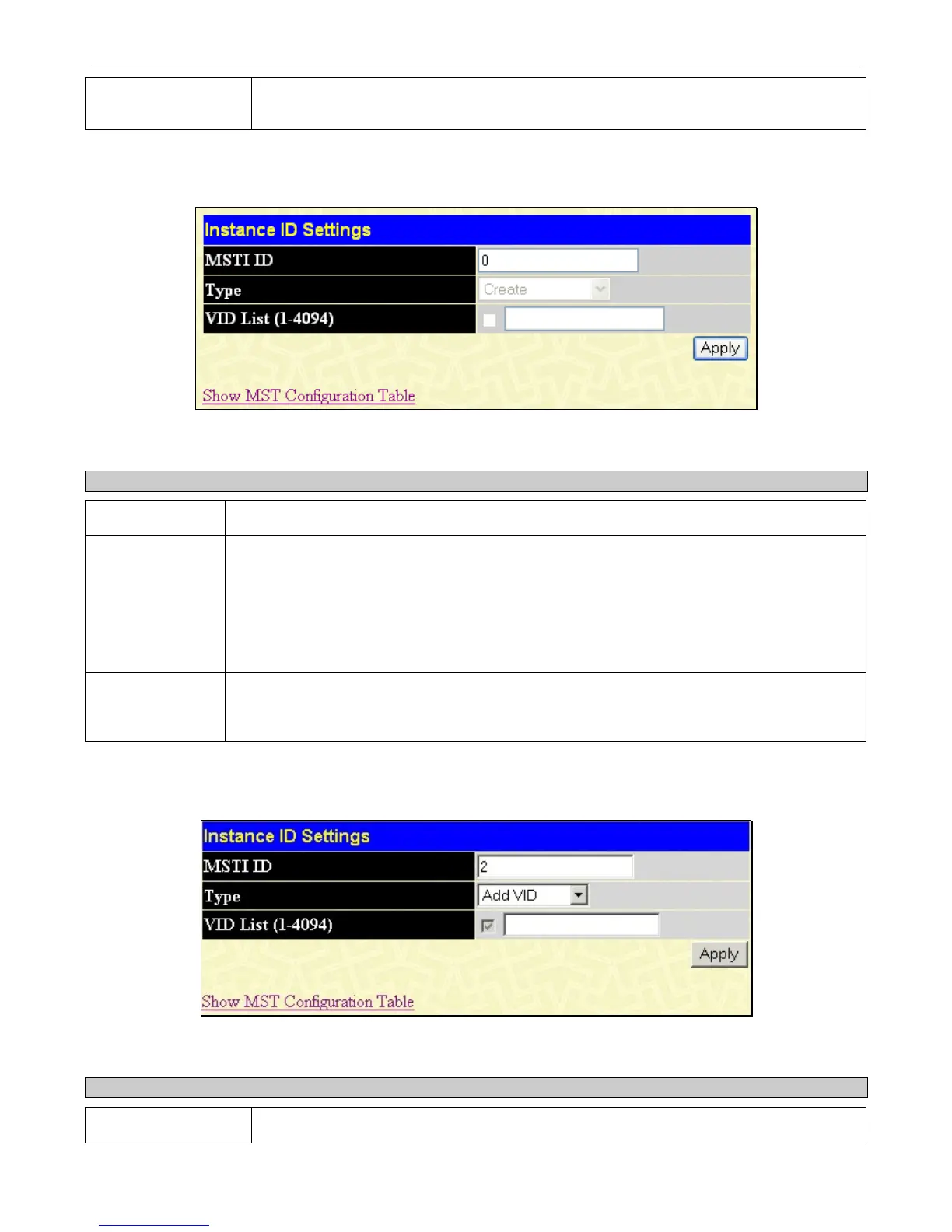

Figure 3- 54. Instance ID Settings window (CIST modify)
The user may configure the following parameters to configure the CIST on the Switch.
Parameter Description
MSTI ID
The MSTI ID of the CIST is 0 and cannot be altered.
Type
This field allows the user to choose a desired method for altering the MSTI settings. The user
has 2 choices.
Add VID - Select this parameter to add VIDs to the MSTI ID, in conjunction with the VID
List parameter.
Remove VID - Select this parameter to remove VIDs from the MSTI ID, in conjunction
with the VID List parameter.
VID List (1-4094)
This field is used to specify the VID range from configured VLANs set on the Switch. Supported
VIDs on the Switch range from ID number 1 to 4094. This field is inoperable when configuring
the CIST.
Click Apply to implement changes made.
To configure the parameters for a previously set MSTI, click on its hyperlinked MSTI ID number, which will reveal the following
window for configuration.
Figure 3- 55. Instance ID Settings window (Modify)
The user may configure the following parameters for a MSTI on the Switch.
Parameter Description
MSTI ID
Displays the MSTI ID previously set by the user.
138
