Barcode Scanning Features
198
DX8210 Barcode Scanner
18. Run the PackTrack calibration procedure
(see section
).
19. Wh
en the scanner(s) has been configured and calibrated, backup the system
configuration using Utilities | Backup or Restore. It is recommended to save
the system parameters to
Flash Memory
on the SC5000 and to a
File
on
your computer. i

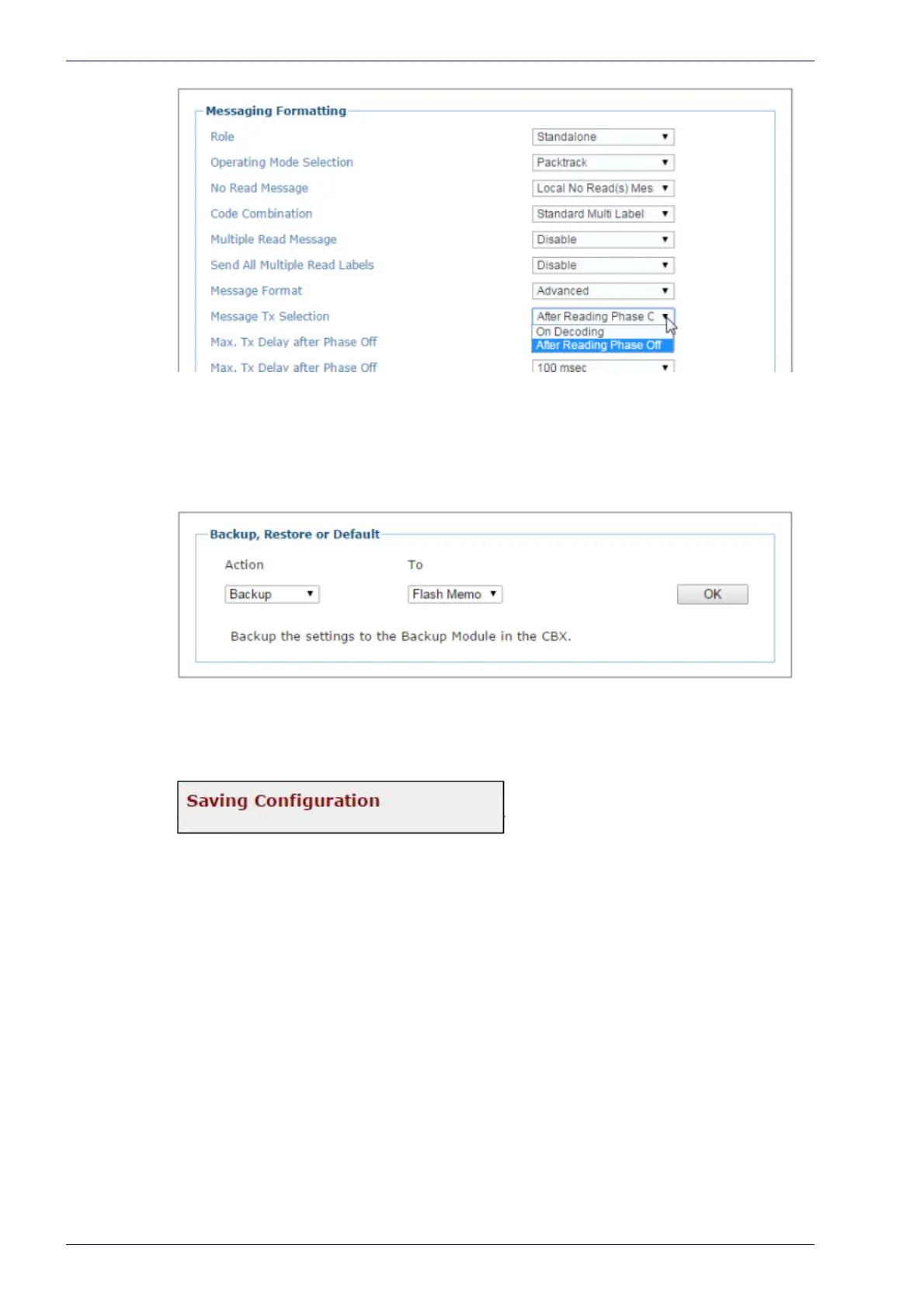

20. Select Backup from the Action drop-down list, and select Flash Memory
from the To drop-down list.
21. Click OK. The following message will be
displayed.
22. Next, select Backup from the Action drop-down list, and select File from the
To drop-down list.
23. Click OK to
download the configuration text file (param.txt) to your com-
puter.
