12. Finally, place a system barcode on the back right corner of the tallest sys-
tem box, as shown in the illustration below.

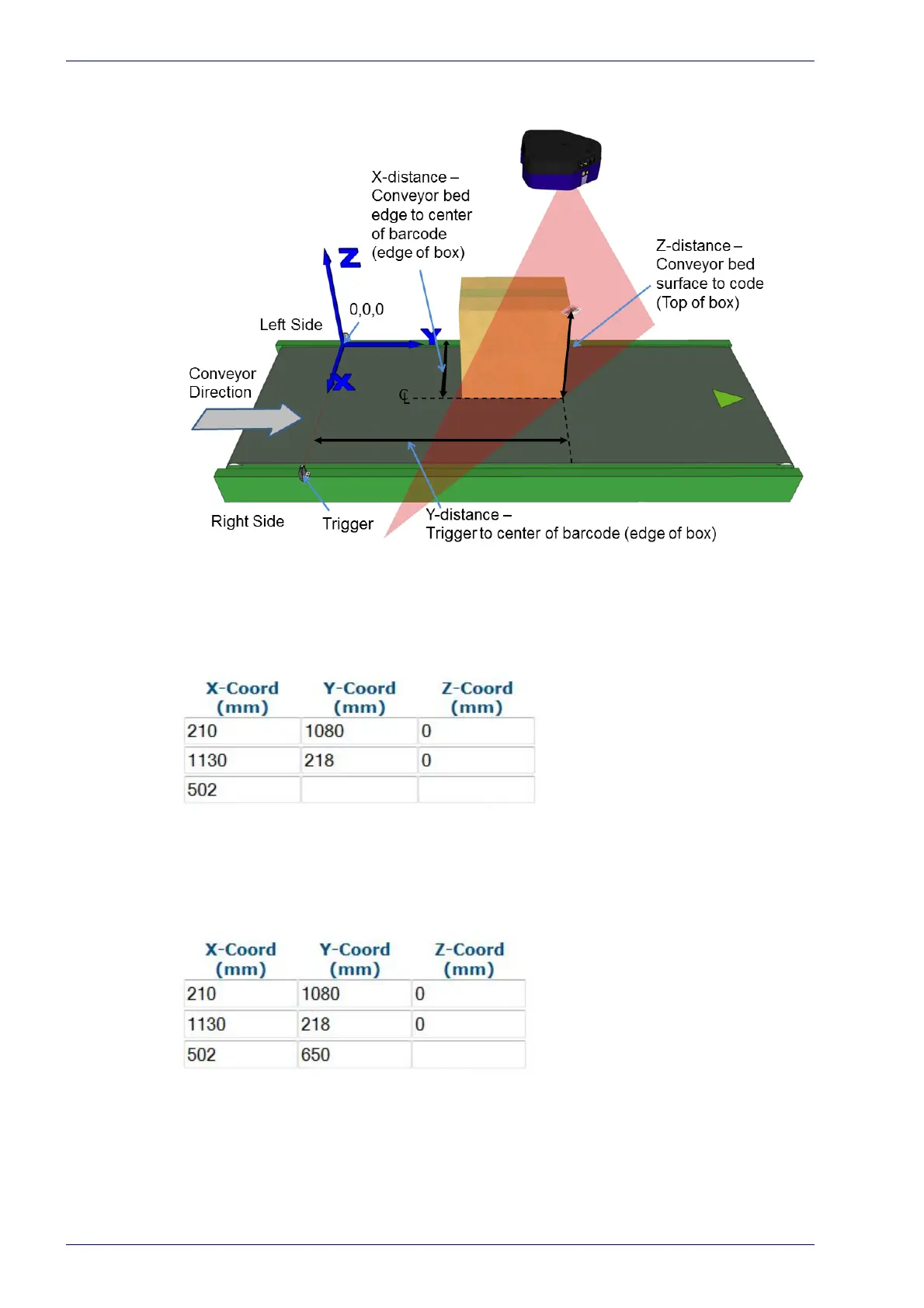

13. Measure the distance for X from the left edge of the conveyor bed to the
center of the barcode (edge of box), and enter that distance in the first box
under X-Coord (mm).
Your measurements will likely differ from those shown below.
14. Measure the distance for Y from the trigger (PS line) to the barcode scan-
ner's laser line on the barcode (back edge of box), and enter that distance in
the first box under Y-Co
ord (mm).
Your measurements will likely differ from those shown below.
15. Measure the distance for Z from the conveyor bed to the barcode, and enter
that distance in the first box under
Z-Coord (mm).
Your measurements will likely differ from those shown below.
