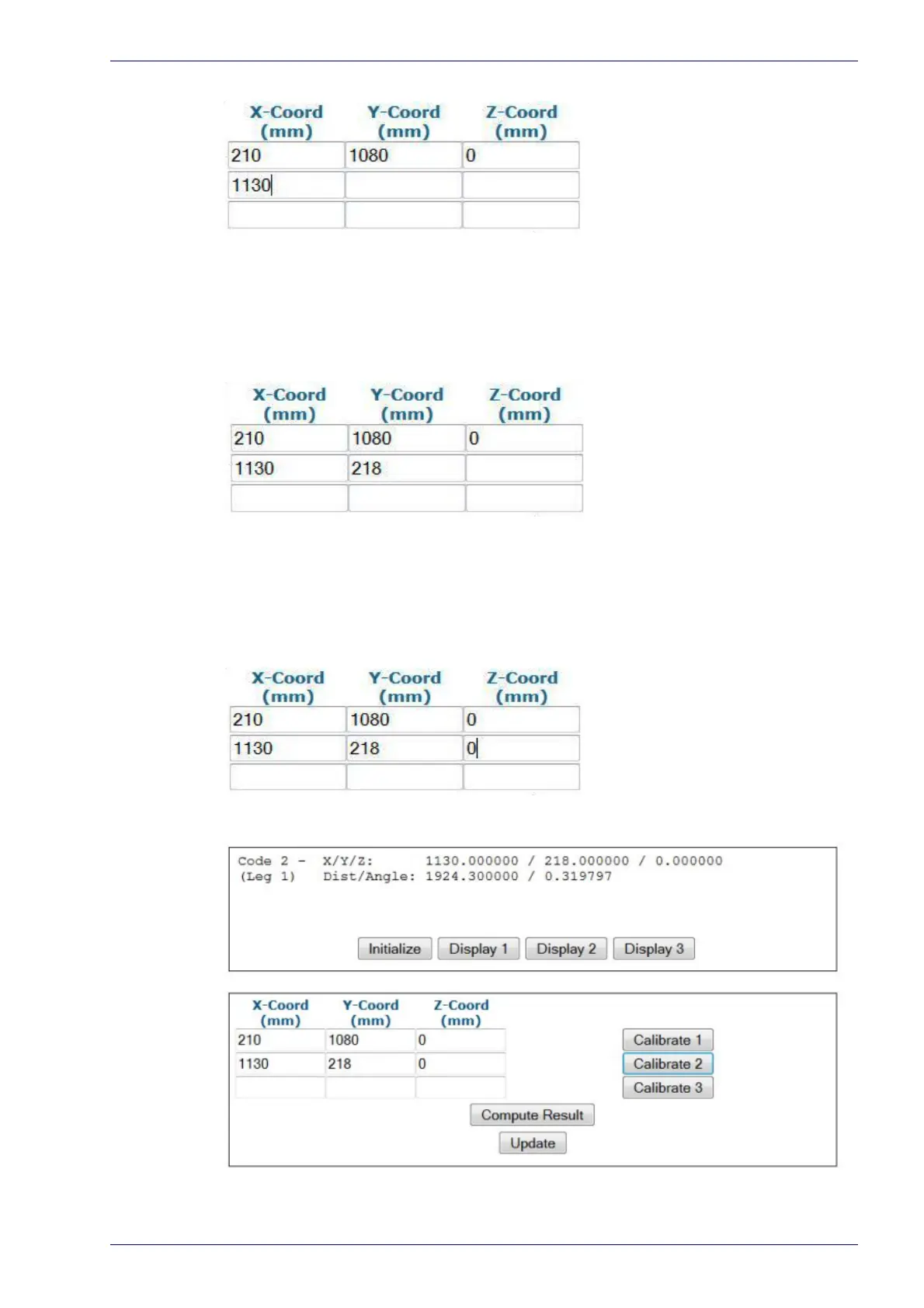

9. Measure the distance for Y from the trigger (PS line) to the barcode scan-
ner's laser line on the barcode, and enter that distance in the first box
un
der Y-Coord (mm).
Your measurements will likely differ from those shown below.
10. Measure the distance for Z from the conveyor bed to the barcode, and enter
that distance in the first box under
Z-Coord (mm). Since the barcode is
directly on the conveyor bed, the value should be "0."
Your measurements will likely differ from those shown below.
11. Click Calibrate 2. PackTrack data is displayed for the second code.
To Next Page
