Barcode Scanning Features
218
DX8210 Barcode Scanner
7.
Next, place a syste
m barcode on the
conveyor bed in
the laser line clos
e to
the right edge of the convey
or bed.

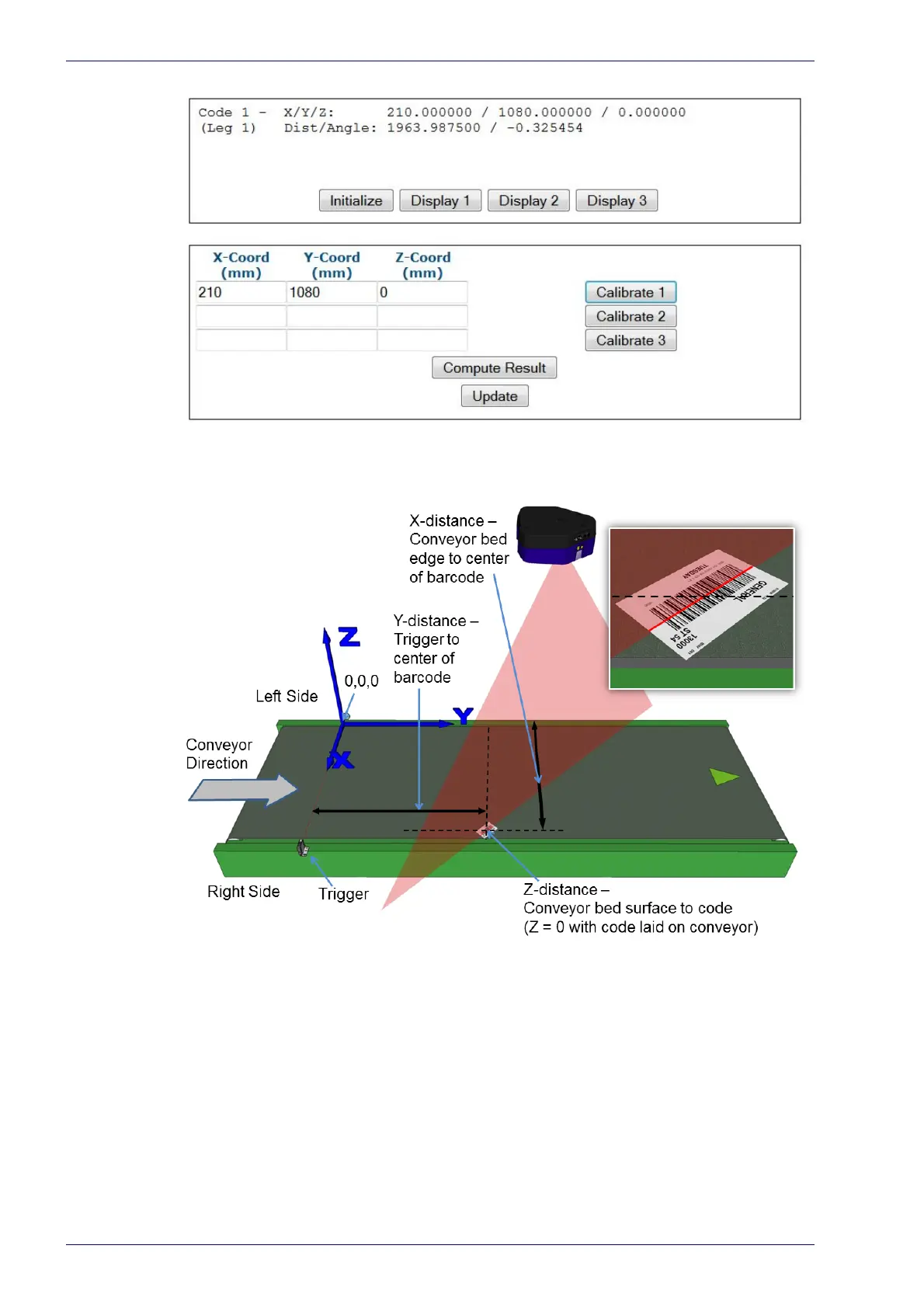

See illustra
tion below.
8.
Measure the di
stance for
X
from the
left edge of the co
nveyor bed to the
center of the barcode, and e
nter that
distance in the
first box under X-
Coord (mm).
Your measurements will
likely differ from those
shown below.
229
231
