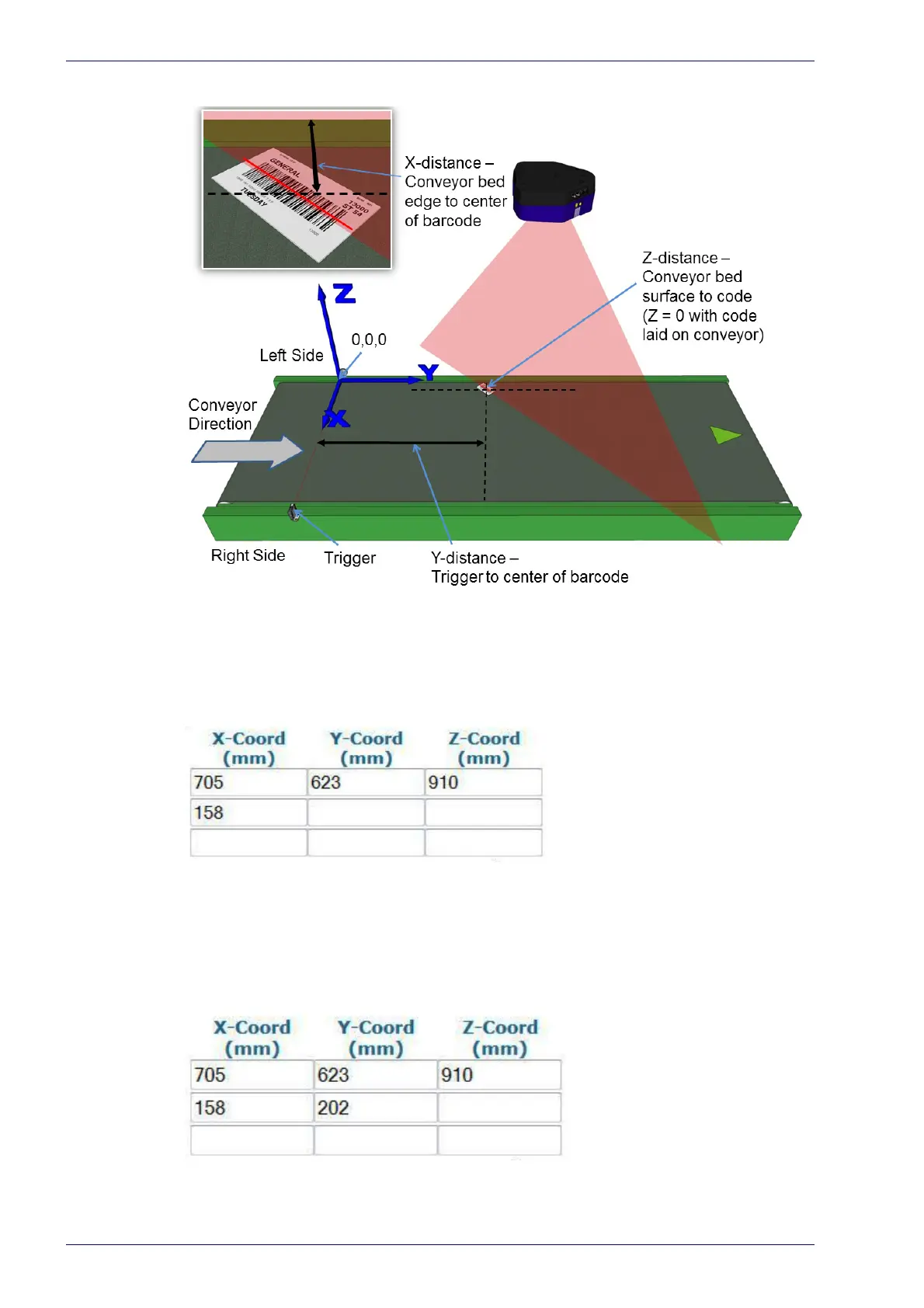

26. Measure the distance for X from the edge of the conveyor bed to the center
of the barcode, and enter that distance in the first box under X-Coord (mm) in the
PackTrack Calibration Wizard.
Your measurements will likely differ from those shown below.
27. Measure the distance for Y from the trigger (PS line) to the barcode scan-
ner's laser line on the barcode, and enter that distance in the first box
un
der Y-Coord (mm).
Your measurements will likely differ from those shown below.
