PackTrack™
Reference Manual 225

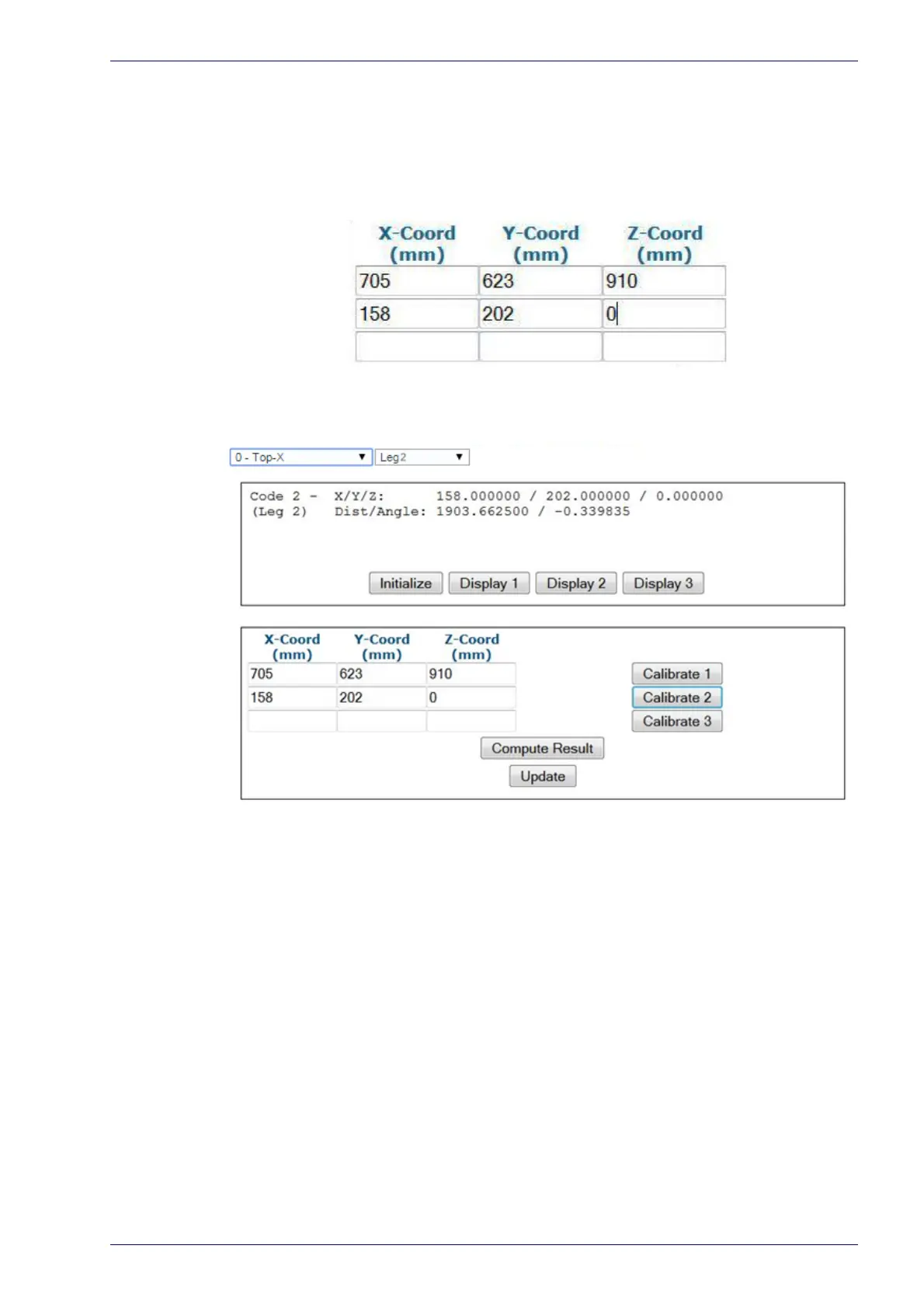

28. Measure the distance for Z from the conveyor bed to the barcode, and enter
that distance in the first box under
Z-Coord (mm). Since the barcode is
directly on the conveyor bed, the value should be "0."
Your measurements will likely differ from those shown below.
29. Click Calibrate 2. PackTrack data is displayed for the first code.
30. Next, place a system barcode on the conveyor bed in the laser line close to
the right edge of the conveyor bed.
See illustration below.
