Datalogic DX8210 User Manual

PackTrack™
Reference Manual 227

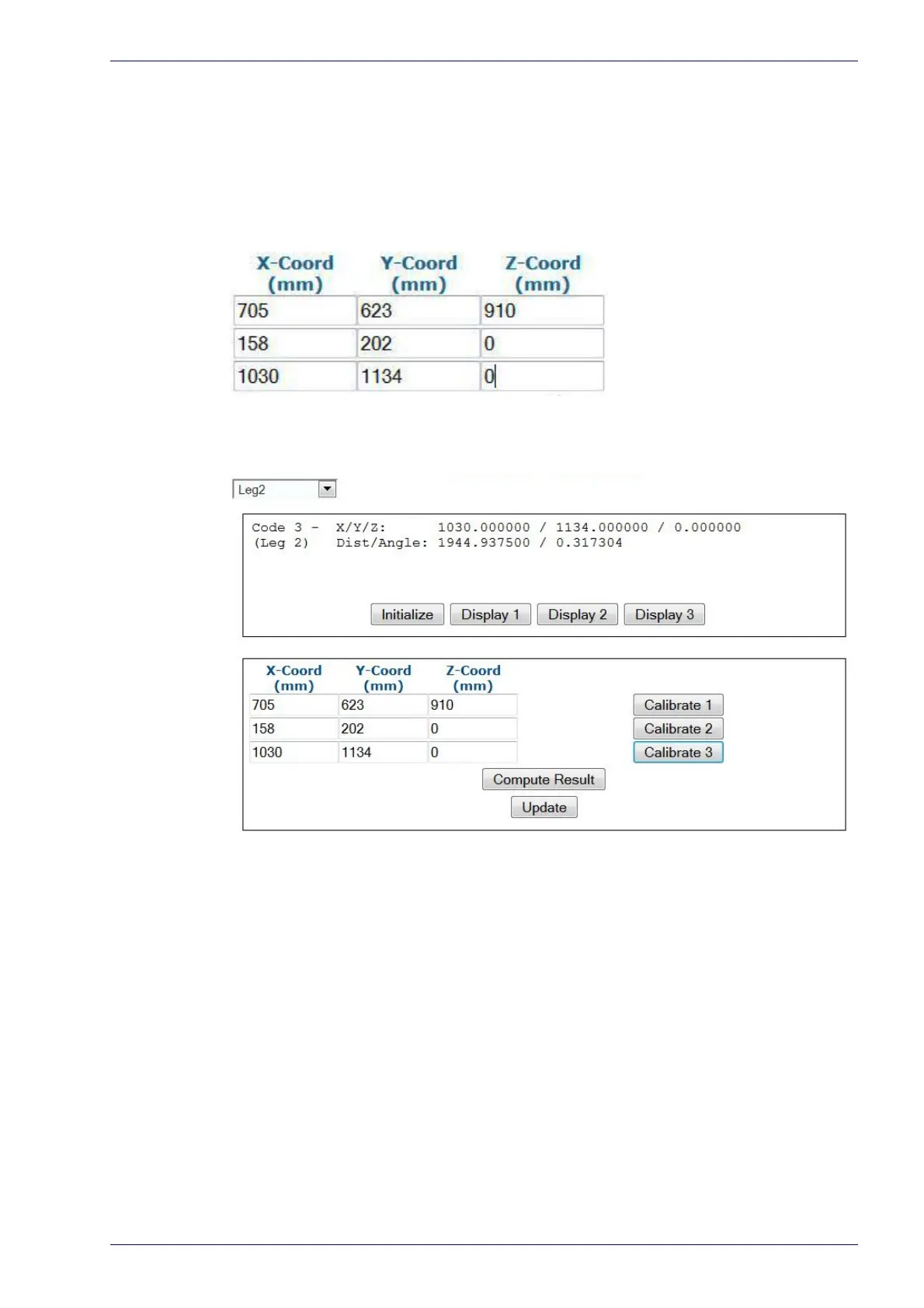

33. Measure the distance for Z from the conveyor bed to the barcode, and enter
that distance in the first box under
Z-Coord (mm). Since the barcode is
directly on the conveyor bed, the value should be "0."
Your measurements will likely differ from those shown below.
34. Click Calibrate 3. PackTrack data is displayed for the second code.
35. Click Compute Results. The results are displayed at the top of the Pack-
Track Calibration window.
