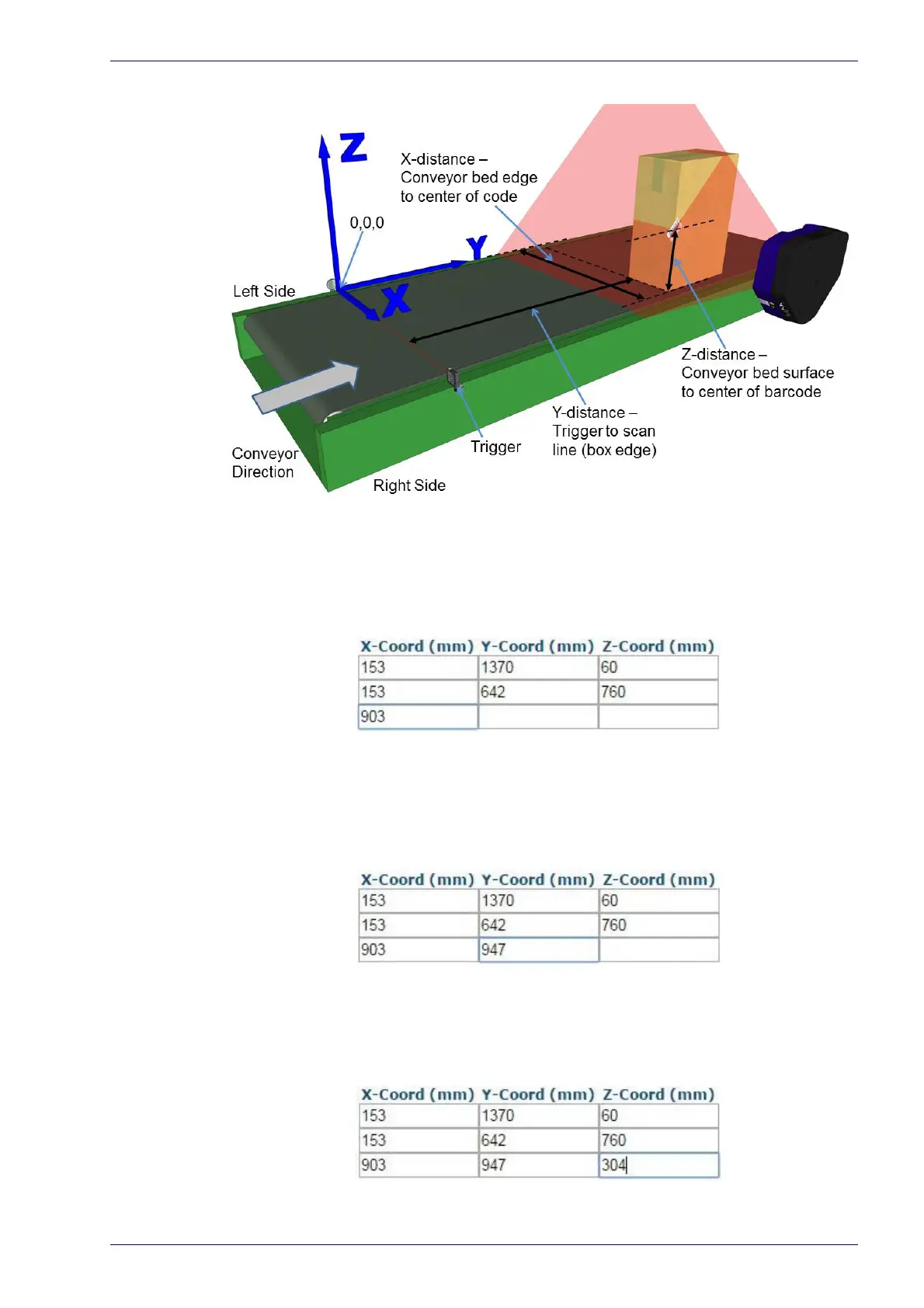

31. Measure the distance for X from the left edge of the conveyor bed to the
center of the barcode (right edge of box), and enter that distance in the first
box under X-Coord (mm).
Your measurements will likely differ from those shown below.
32. Measure the distance for Y from the trigger (PS line) to the barcode scan-
ner's laser line on
the barcode (leading edge of box), and enter that distance
in the first box under YCoord (mm).
Your measurements will likely differ from those shown below.
33. Measure the distance for Z from the conveyor bed to the center of the bar-
code, and enter
that distance in the first box under Z-Coord (mm).
Your measurements will likely differ from those shown below.
34. Click Calibrate 3. PackTrack data is displayed for the third code.
