DX8210 Barcode Scanner

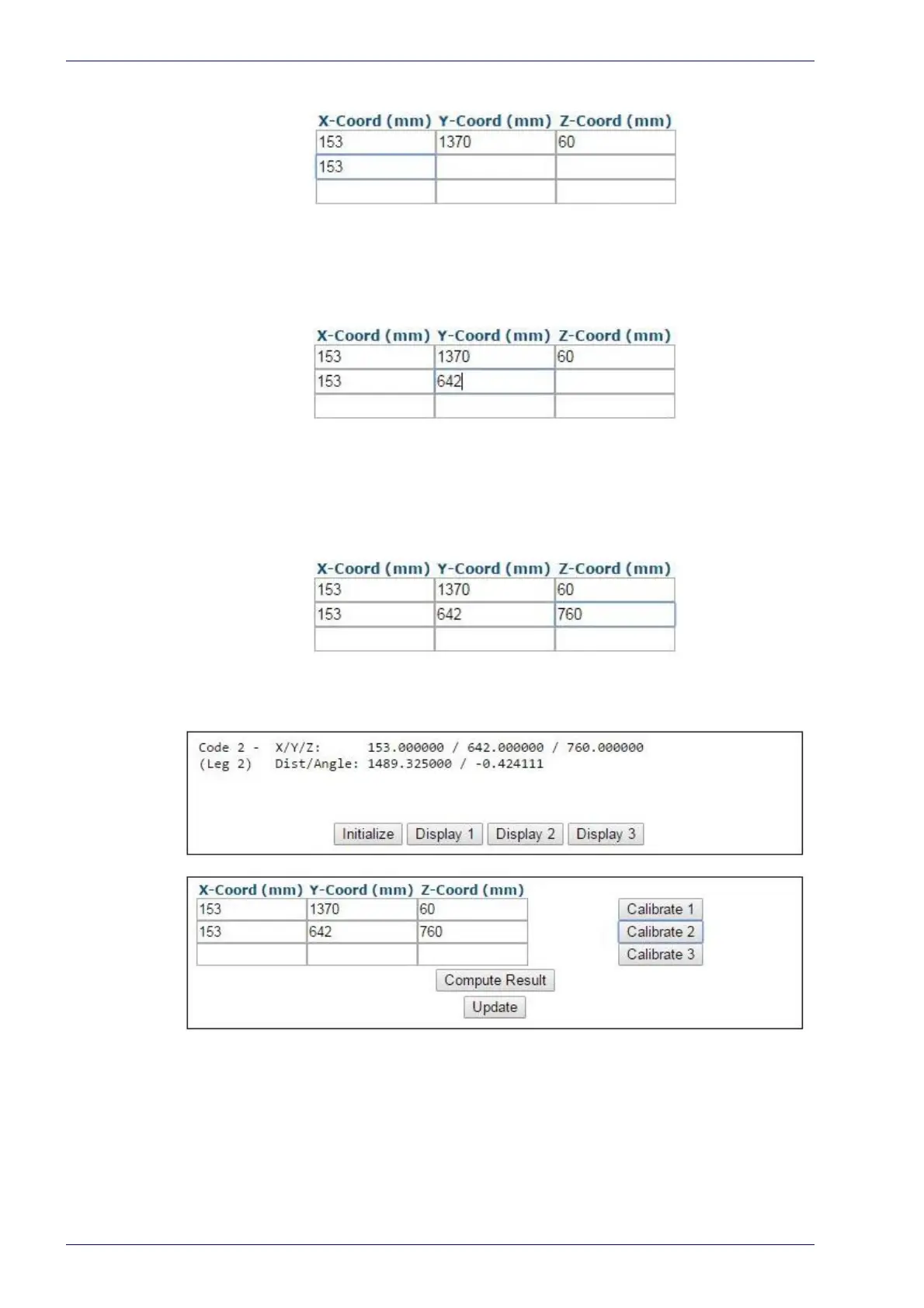

27. Measure the distance for Y from the trigger (PS line) to the leading edge of the box,
and enter that distance in the first box under Y-Coord (mm).
Your measurements will likely differ from those shown below.
28. Measure the distance for Z from the conveyor bed to the center of the bar-
code (top of
box), and enter that distance in the first box under Z-Coord
(mm)
.
Your measurements will likely differ from those shown below.
29. Click Calibrate 2. PackTrack data is displayed for the second code.
30. Finally, place a system barcode on the leading right edge of a small box
close to the conveyor bed, as shown in the illustration below.
