PackTrack™
Reference Manual 237
24. Click Calibrate 1. PackTrack data is displayed for the first code.

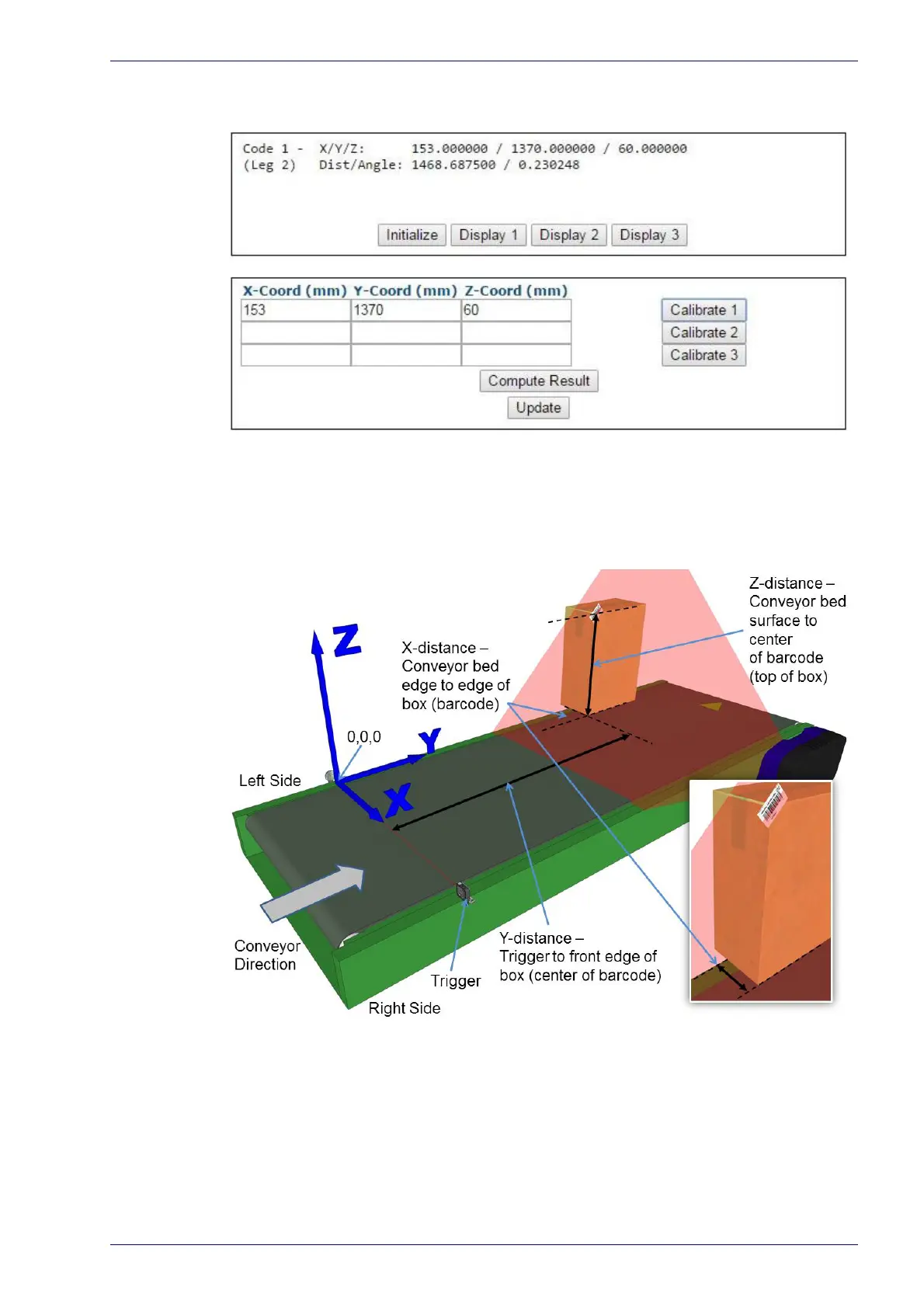

25. Next, place a system barcode overhanging the top corner of the tallest box
specified for your scanning system as shown in the illustration below. Place
the box close to the left edge of the conveyor bed, aligning the top corner
with the laser line as shown.
26. Measure the distance for X from the left edge of the conveyor bed to the
center of the barcode (right edge of box), and enter that distance in the first
box under X-Coord (mm).
Your measurements will likely differ from those shown below.
