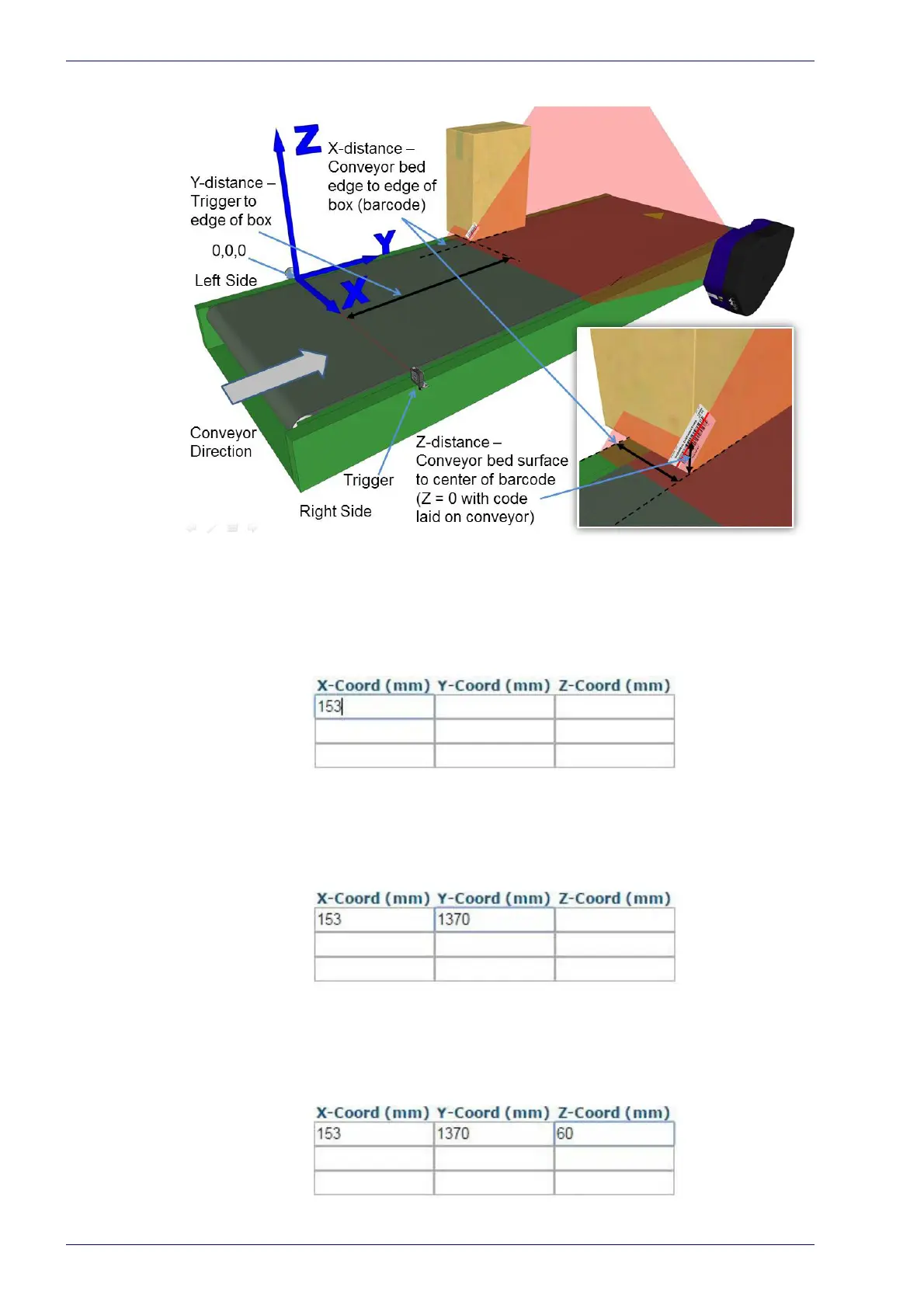

21. Measure the distance for X from the left edge of the conveyor bed to the
barcode (right edge of box), and enter that distance in the first box under X-Coord
(mm) in the PackTrack Calibration Wizard.
Your measurements will likely differ from those shown below.
22. Measure the distance for Y from the trigger (PS line) to the leading edge of
the box, and enter that distance in the first box under Y-Coord (mm).
Your measurements will likely differ from those shown below.
23. Measure the distance for Z from the conveyor bed to the center of the bar-
code, and enter
that distance in the first box under Z-Coord (mm).
Your measurements will likely differ from those shown below.
