User Interface
64
DX8210 Barcode Scanner

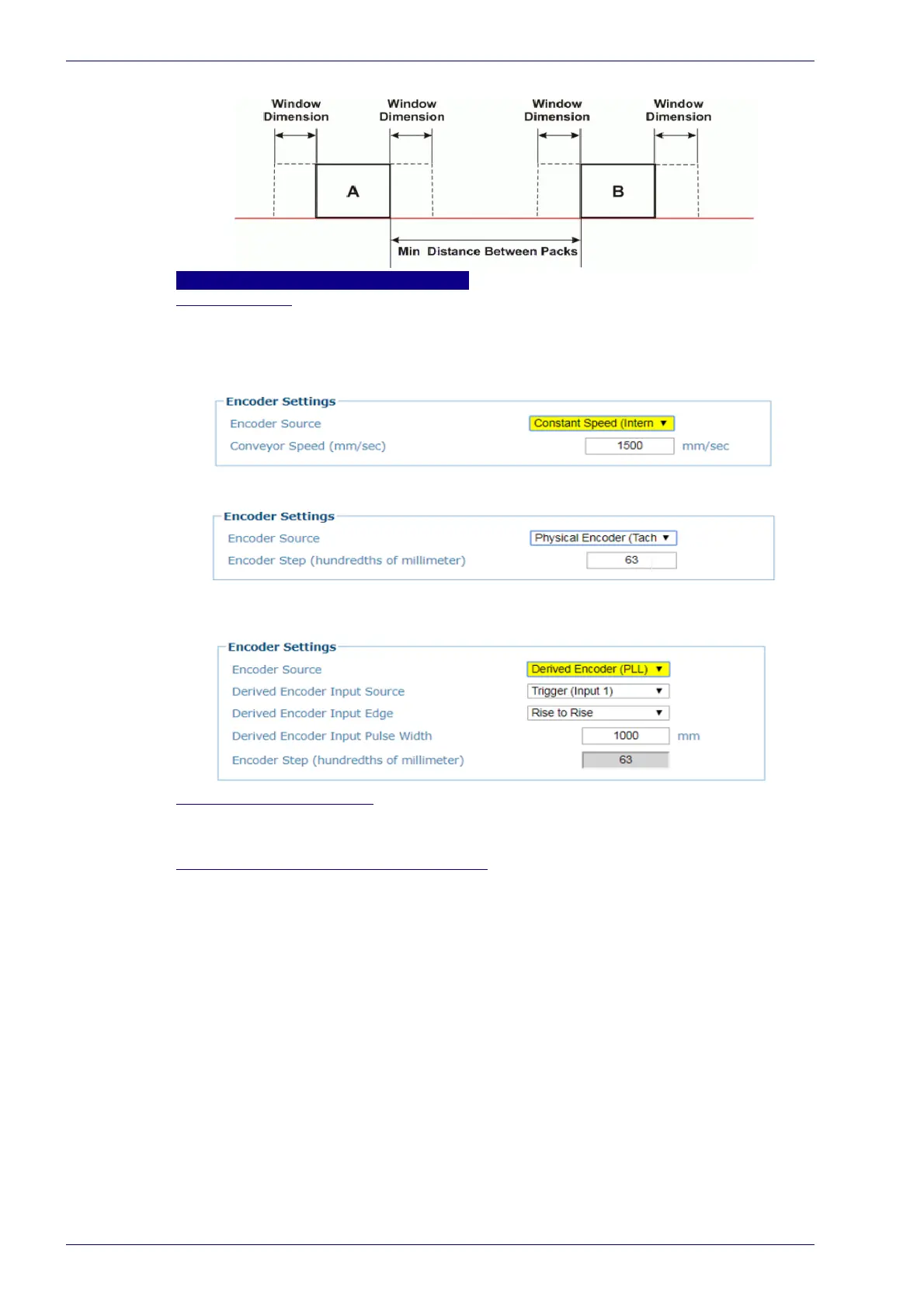

Encoder Settings
Encoder Source
Select Constant Speed (Internal), Physical Encoder (Tachometer), or Derived
Encoder (PLL) from the drop-down list:
Constant Speed (Internal): Allows the user to specify the tach rate to be used (from
.05 - 3.05 m/sec [from 10 - 600 ft/min]). No external hardware is used.
Physical Encoder (Tachometer): A physical encoder is connected to the Encoder
input and is enabled.
Derived Encoder (PLL): determines the encoder rate from an external signal. This is
used in applications where the distance between fixed-sized packages/trays is
constant.
Conveyor Speed (mm/sec)
This parameter is available only when the Physical Encoder is disabled. It defines
the constant speed of the conveyor in mm/sec.
Encoder Step (Hundredths of millimeters)
Enter the step value of the encoder.
