ENTER/EXIT PROGRAMMING MODE
170 Gryphon™ I GD4132/GM4102/GBT4102

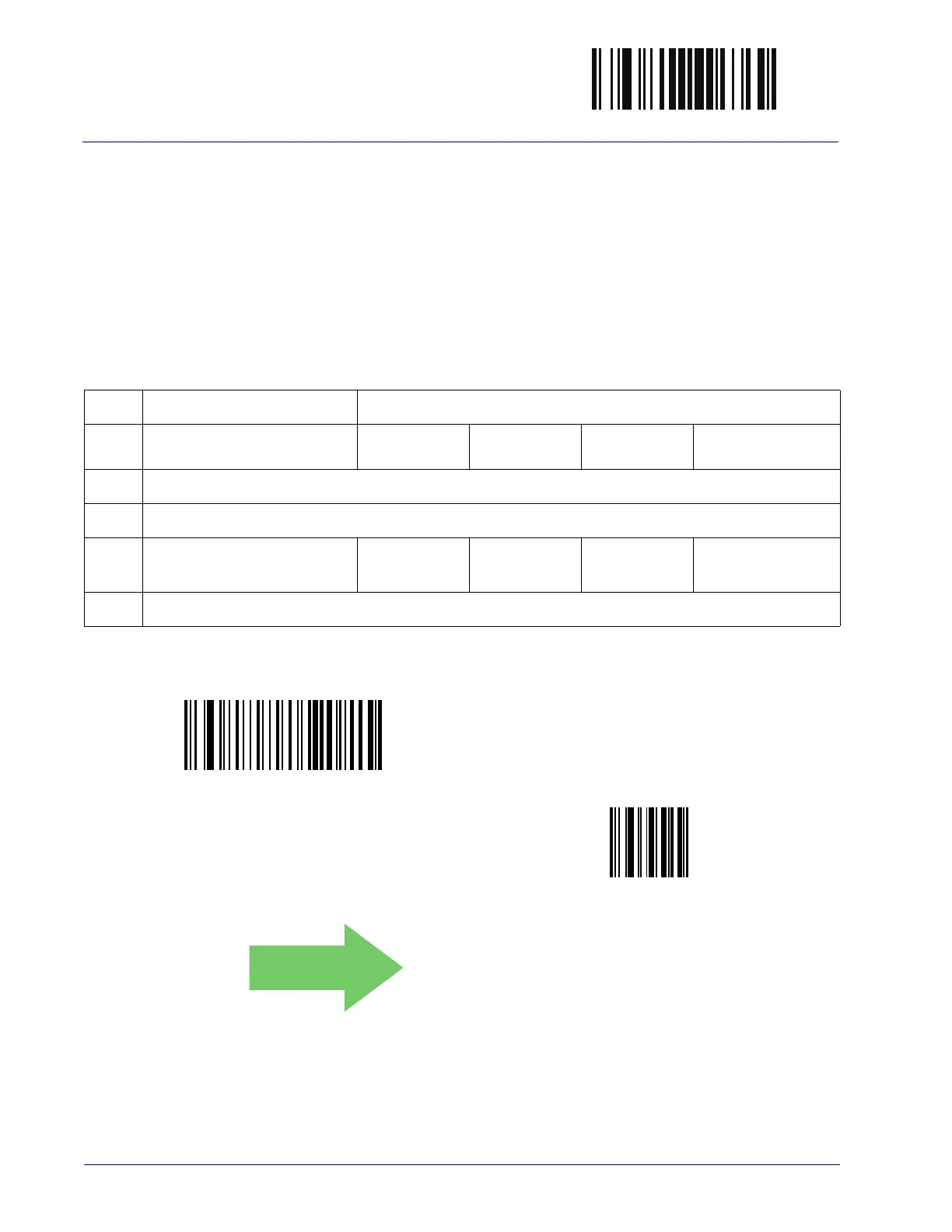

Codablock F Set Length 2
This feature specifies one of the barcode lengths for Codablock F Length Con-
trol. Length 2 is the maximum label length if in Variable Length Mode, or the
second fixed length if in Fixed Length Mode. Length includes the barcode’s
check, data, and full-ASCII shift characte
rs. The length does not include start/
stop characters.
Table 7 provides examples for setting Length 2. See page 295 for detailed
instructions on setting this feature.
Table 7. CODABLOCK F Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 (Ignore This
Length)
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODABLOCK F LENGTH 2 SETTING
4
Scan Three Characters From
Appendix D, Keypad
‘0’, ‘0’ and ‘0’ ‘0’, ‘0’ and ‘7’ ‘0’,‘1’ and ‘5’ ‘0’,‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Codablock F Length 2 Setting
Make a mistake? Scan the CANCEL barcode to abort
and not save the entry string. You can then start again
at the beginning.
CANCEL
DEFAULT
100 = Length 2 is 100 Characters
