Configuring the Base Station
Product Reference Guide
21
Changing the Base Station Position
The base station is configured by installing one of two sets of mechanical parts
that come with the cordless kit. The default mounts (shown below) provide
three options: vertical (wall) mounting, standing (45°), or horizontal mounting
with a higher mechanical retention of the scanner. Use the other mounts only
for horizontal mounting, with lower retention of the scanner. The different
parts may be interchanged to customize retention preferences.
A tool such as a rigid pen or a flat screwdriver can be used to change
the mounts. Do not allow it to touch the contacts.

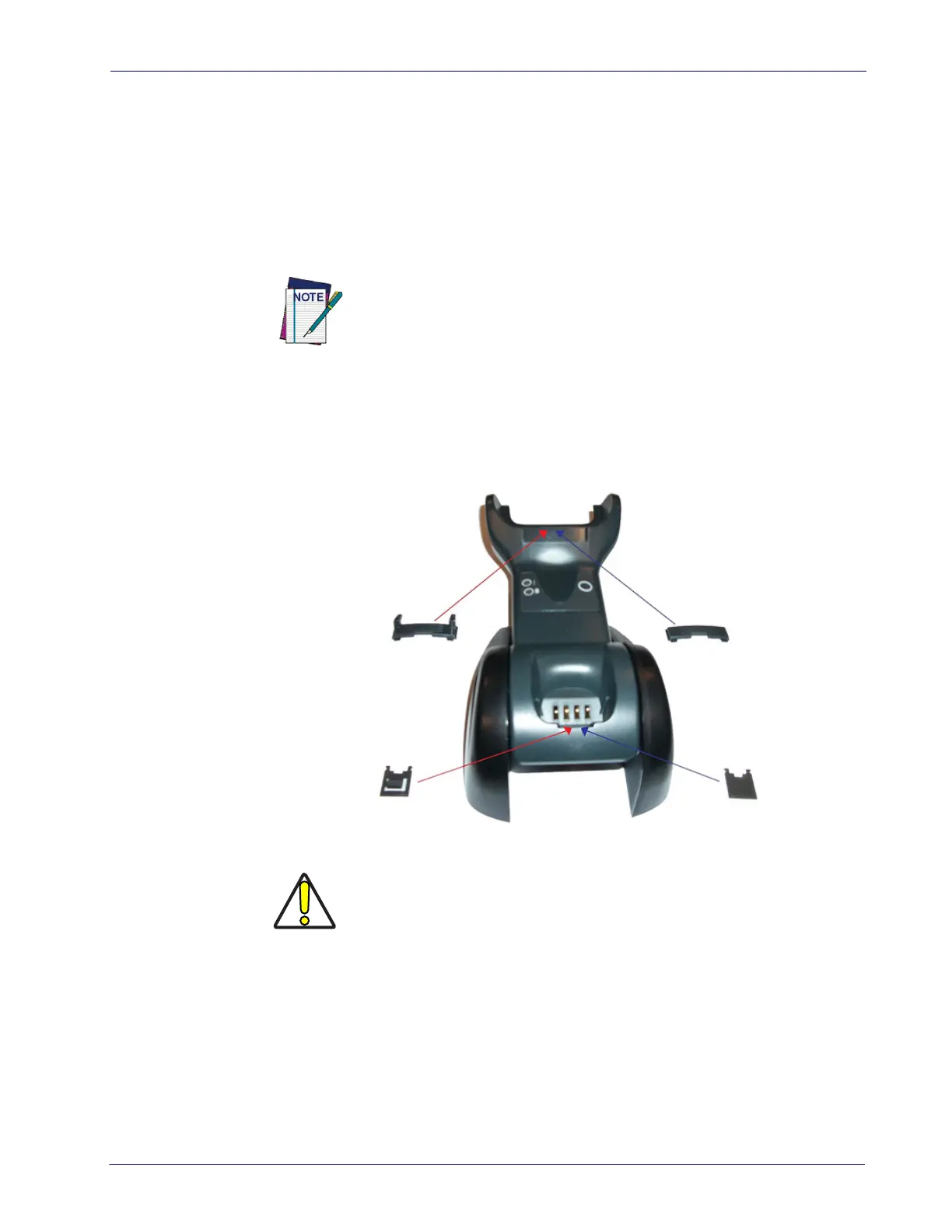

1. Insert the appropriate parts for the desired base station position, as shown
below.
Horizontal
Only
Standing,
or Vertical
Horizontal
CAUTION
To ensure best contact and performance, do not intermix the
parts of the two different mount sets.
