ENTER/EXIT PROGRAMMING MODE
196 Gryphon™ I GD4132/GM4102/GBT4102
Datalogic 2 of 5 Set Length 1
This feature specifies one of the barcode lengths for Datalogic 2 of 5 Length
Control. Length 1 is the minimum label length if in Variable Length Mode, or
the first fixed length if in Fixed Length Mode. The length includes the barcode’s
check and data characters. The length can
be set from 2 to 50 characters in
increments of two.
Table 14 provides some examples for setting Length 1. See page 294 for
detailed instructions on setting this feature.

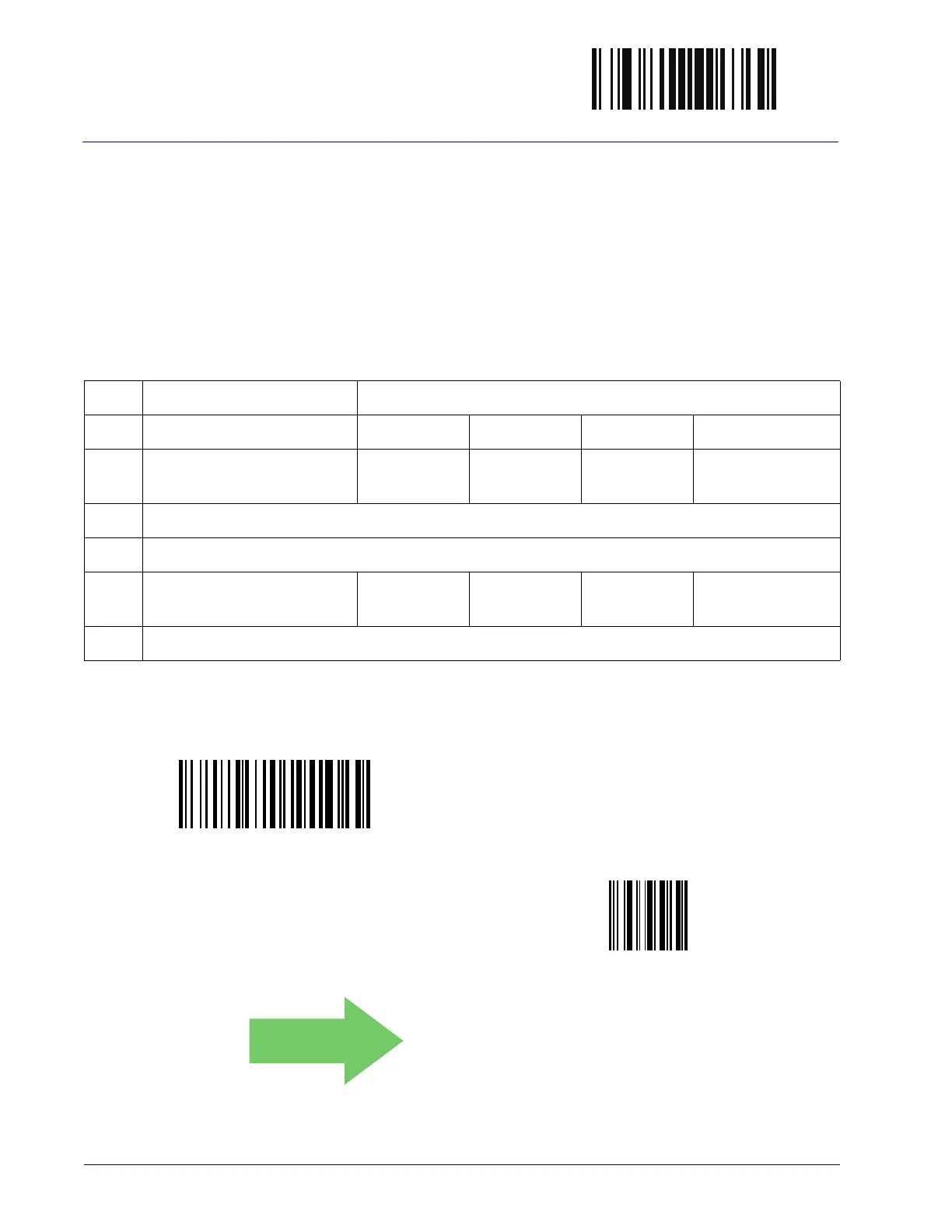

Table 14. Datalogic 2 of 5 Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
2 Characters 6 Characters 14 Characters 50 Characters
2
Pad with leading zeroes to
yield two digit
s
02 06 14 50
3 Scan ENTER/EXIT PROGRAMMING MODE
4 Scan SELECT Datalogic 2 of 5 LENGTH 1 SETTING
5
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘2’ ‘0’ and ‘6’ ‘1’ and ‘4’ ‘5’ AND ‘0’
6 Scan ENTER/EXIT PROGRAMMING MODE
Select Datalogic 2 of 5 Length 1 Setting
Make a mistake? Scan the CANCEL barcode to abort
and not save the entry string. You can then start again
at the beginning.
CANCEL
DEFAULT
06 = Length 1 is 6 Characters
