Setup
18 Gryphon™ I GD4132/GM4102/GBT 4102
Installing the Interface Cable

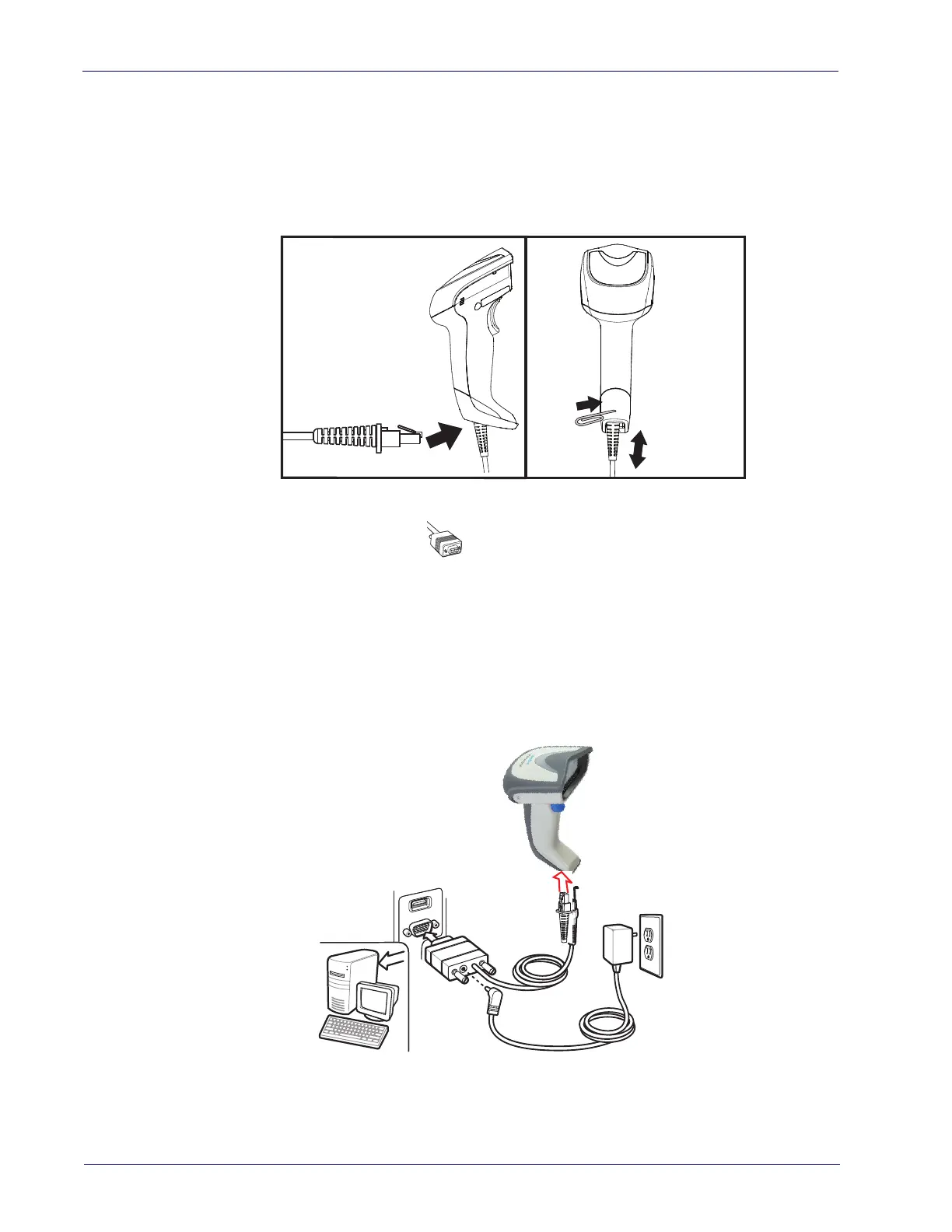

For Corded versions, connect the reader cable by inserting the cable into the
handle as shown in Figure 2. To remove it, insert a paper clip into the release
aperture, then unplug the cable.
Figure 2. Connect/disconnect the cable
RS-232 Serial Connection
Turn off power to the
terminal/PC and connect the reader to the terminal/PC serial port via the RS-
232 cable as shown in Figure 3. If the terminal will not support POT (Power Off
the Terminal) to supply reader power,
use the approved power supply (AC
Adapter). Plug the AC Adapter barrel connector into the socket on the RS-232
cable connector and the AC Adapter plug into a standard power outlet.
Figure 3. RS-232 Connection
