Standard Cable Pinouts
Figure 19 and Table 49 provide standard pinout information for the Base Sta-
tion’s interface cable.

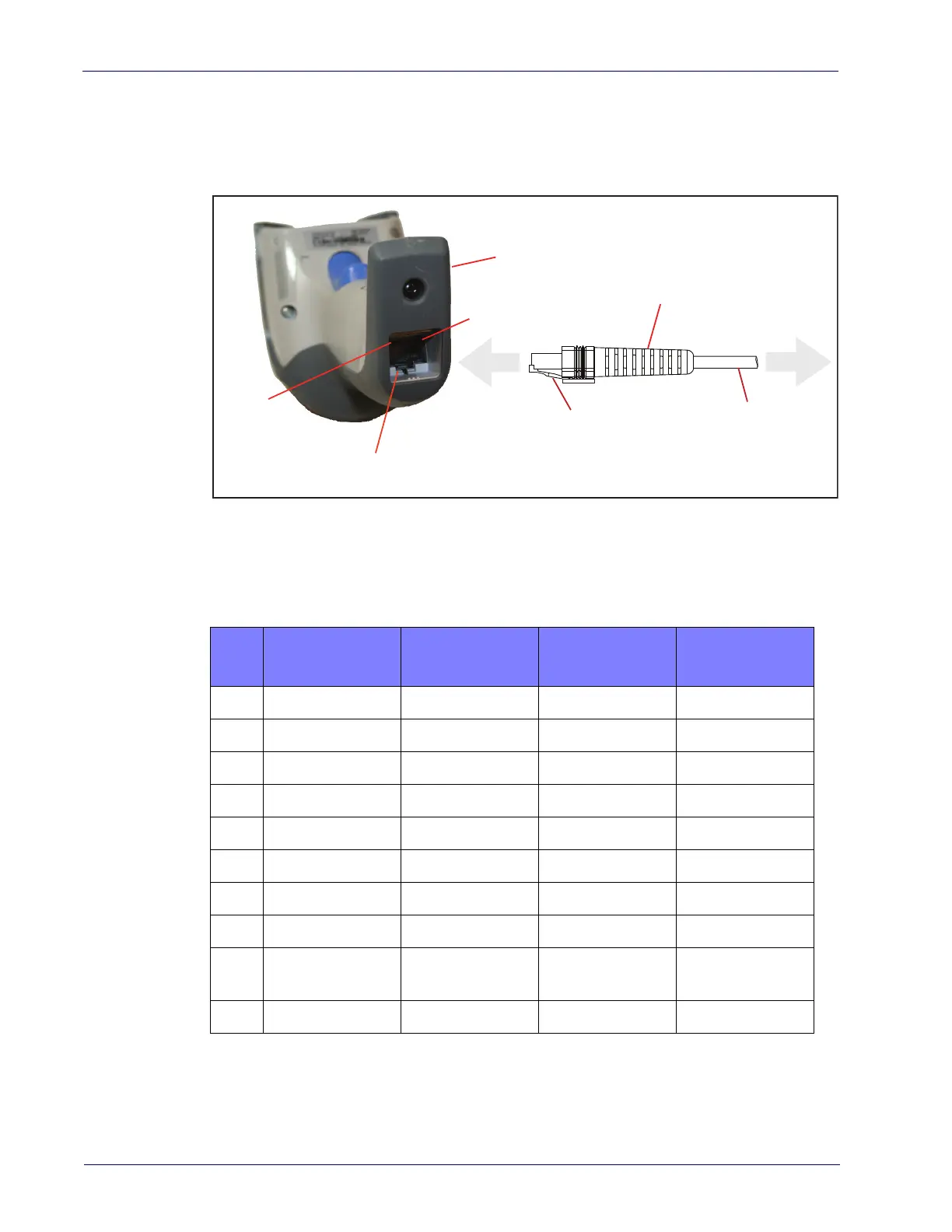

Figure 19. Standard Cable Pinouts
Pin 10
Cable Clip (Latch)
To Host
Cable
Cable Strain Relief
Bottom of Scanner
Interface Cable Port
Pin 1
The signal descriptions in Table 49 apply to the connector on the reader and are
for reference only.
Table 49. Standard Cable Pinouts — Reader Side
Pin RS-232 OEM USB
Keyboard
Wedge
1 RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4 GND GND GND GND
5 RX
6 TX
7 VCC VCC VCC VCC
8 IBM_B CLKOUT (PC side)
9 IBM_A
DATAOUT (PC
side
)
10 CTS (in)
