ENTER/EXIT PROGRAMMING MODE
Product Reference Guide
177
I 2 of 5 Set Length 2
This feature specifies one of the barcode lengths for I 2 of 5 Length Control.
Length 2 is the maximum label length if in Variable Length Mode, or the second
fixed length if in Fixed Length Mode. The length includes the barcode’s check
and data characters.
The length can be set from 2 to 50 characte
rs. A setting of 0 specifies to ignore
this length (only one fixed length).
Table 9 provides examples for setting Length 2. See page 295 for detailed
instructions on setting this feature.

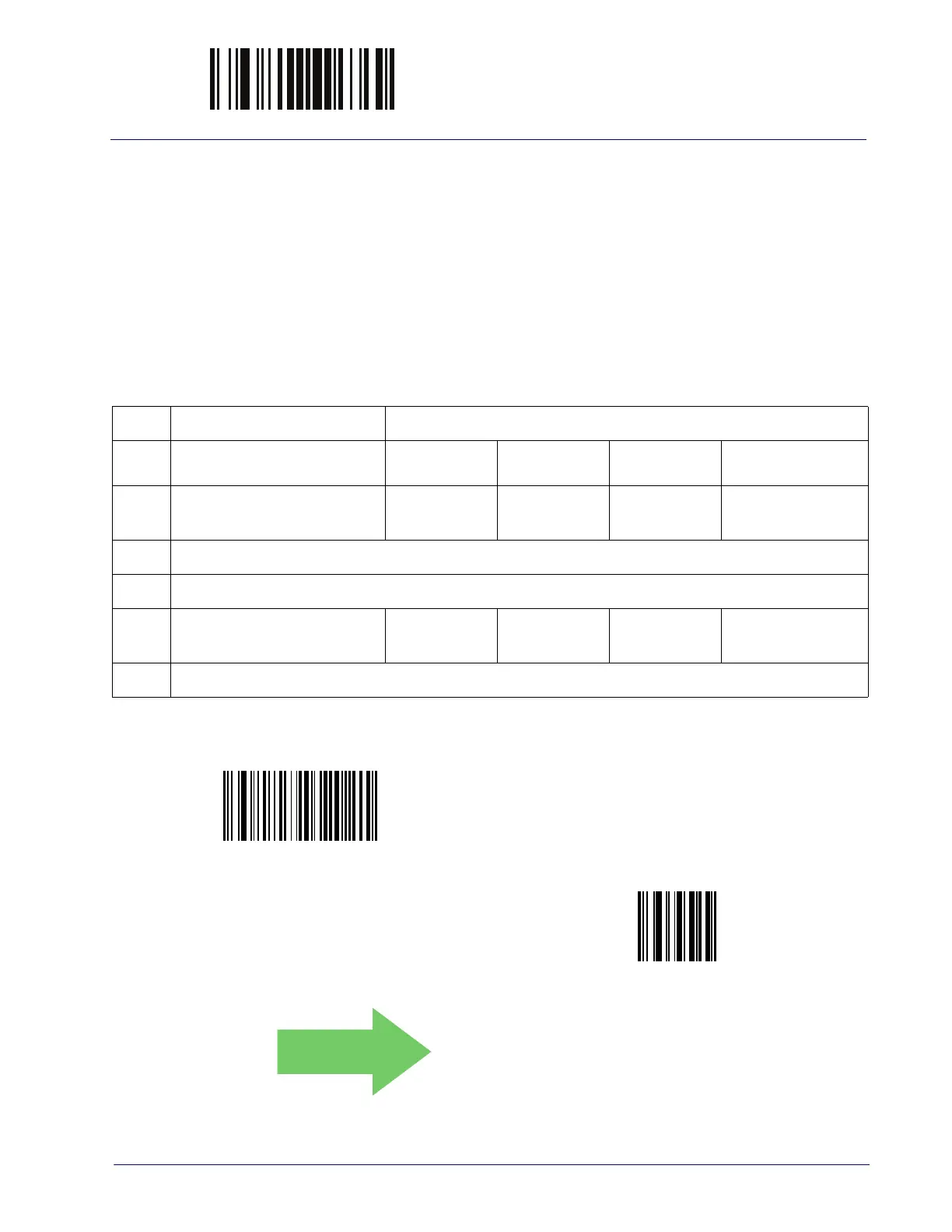

Table 9. I 2 of 5 Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
Ignore This
Length
4 Characters 14 Characters 50 Characters
2
Pad with leading zeroes to
yield two digit
s
00 04 14 50
3 Scan ENTER/EXIT PROGRAMMING MODE
4 Scan SELECT I 2 OF 5 LENGTH 2 SETTING
5
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘4’ ‘1’ and ‘4’ ‘5’ AND ‘0’
6 Scan ENTER/EXIT PROGRAMMING MODE
Select I 2 of 5 Length 2 Setting
Make a mistake? Scan the CANCEL barcode to abort
and not save the entry string. You can then start again
at the beginning.
CANCEL
DEFAULT
50 = Length 2 is 50 Characters
