Codabar Set Length 1
This feature specifies one of the barcode lengths for Codabar Length Control.
Length 1 is the minimum
label length if in Variable Length Mode, or the first
fixed length if in Fixed Length Mode. Length includes the barcode’s start, stop,
check and data characters. The
length must include at least one data character.
The length can be set from 3 to 50 characters.
Table 16 provides some examples for setting Length 1. See page 294 for
detailed instructions on setting this feature.

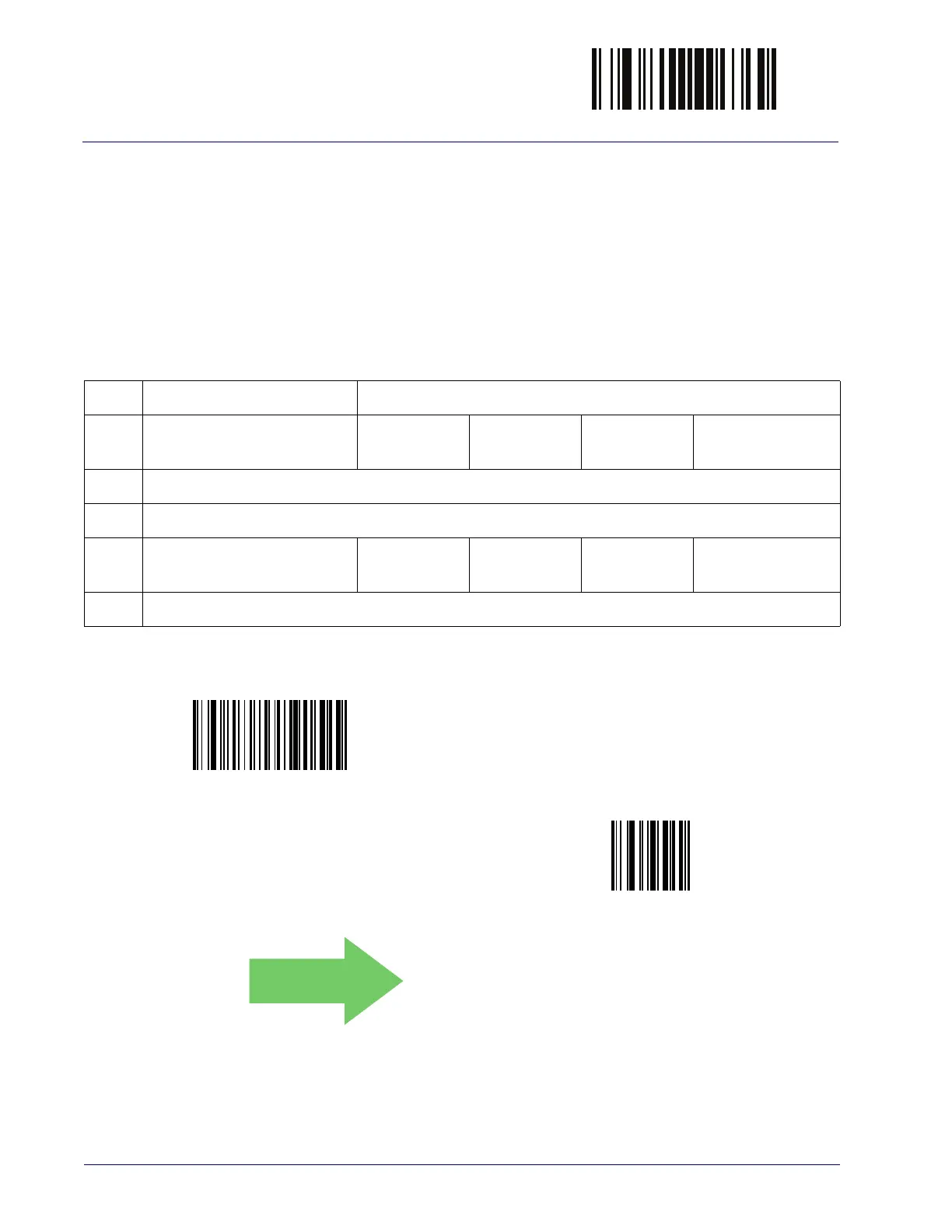

Table 16. Codabar Length 1 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (and pad
with leading ze
roes)
03 Characters 09 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODABAR LENGTH 1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘3’ ‘0’ and ‘9’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Codabar Length 1 Setting
Make a mistake? Scan the CANCEL barcode to abort
and not save the entry string. You can then start again
at the beginning.
CANCEL
DEFAULT
03 = Length 1 is 3 Characters
