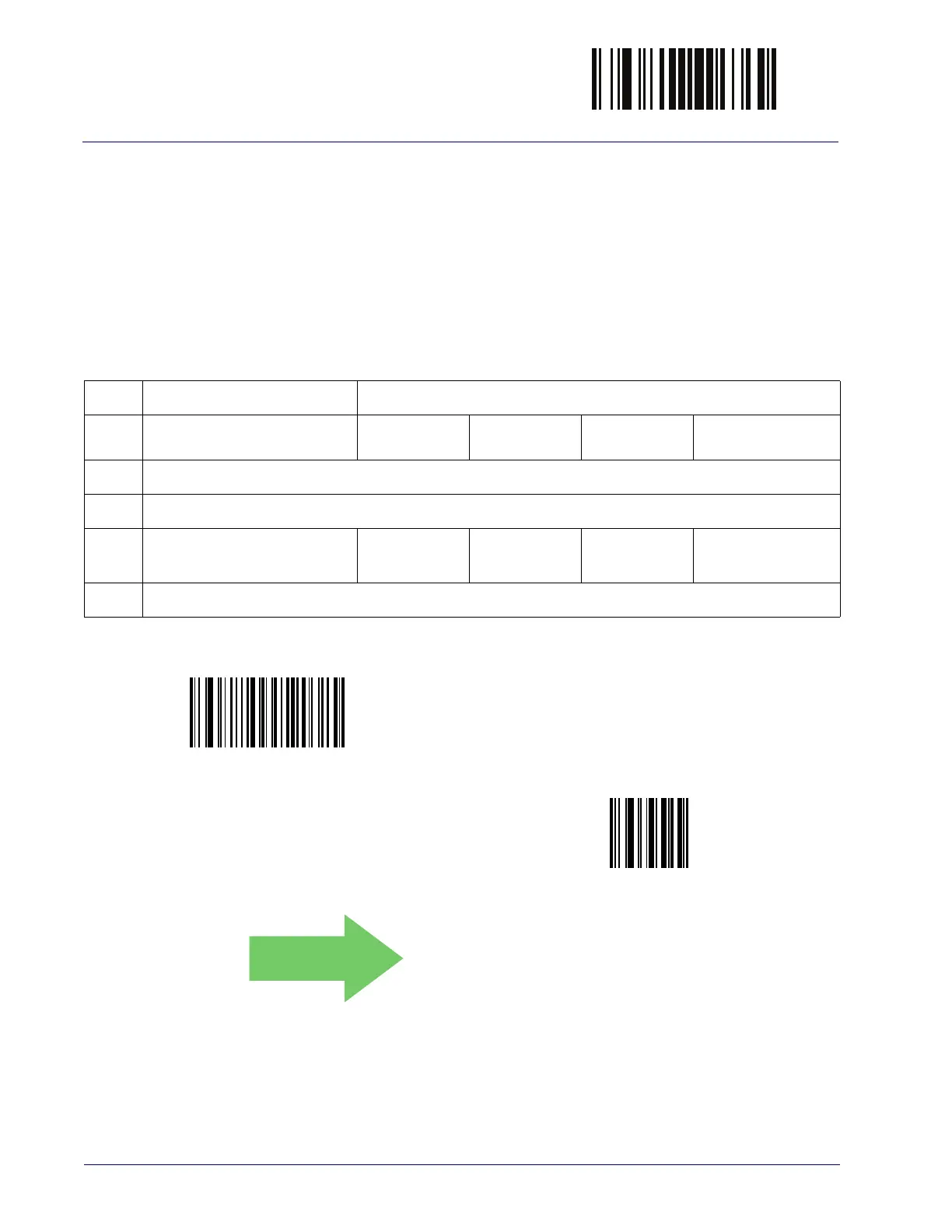

228 Gryphon™ I GD4132/GM4102/GBT4102
GS1 DataBar™ Expanded Set Length 2
This feature specifies one of the barcode lengths for GS1 DataBar™ Expanded
Length Control. Length 2 is the maximum label length if in Variable Length
Mode, or the second fixed length if in Fixed Length Mode. Length includes the
barcode’s data characters only. The length
can be set from 1 to 74 characters.
A setting of 0 specifies to ignore this length (only one fixed length).
Table 21 provides examples for setting Length 2. See page 295 for detailed
instructions on setting this feature.
Table 21. GS1 DataBar™ Expanded Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 (ignore second
length)
07 Characters 52 Characters 74 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT GS1 DataBar™ EXPANDED LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘5’ and ‘2’ ‘7’ and ‘4’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select GS1 DataBar™ Expanded Set Length 2 Setting
Make a mistake? Scan the CANCEL barcode to abort
and not save the entry string. You can then start again
at the beginning.
CANCEL
DEFAULT
74 = Length 2 is 74 Characters
